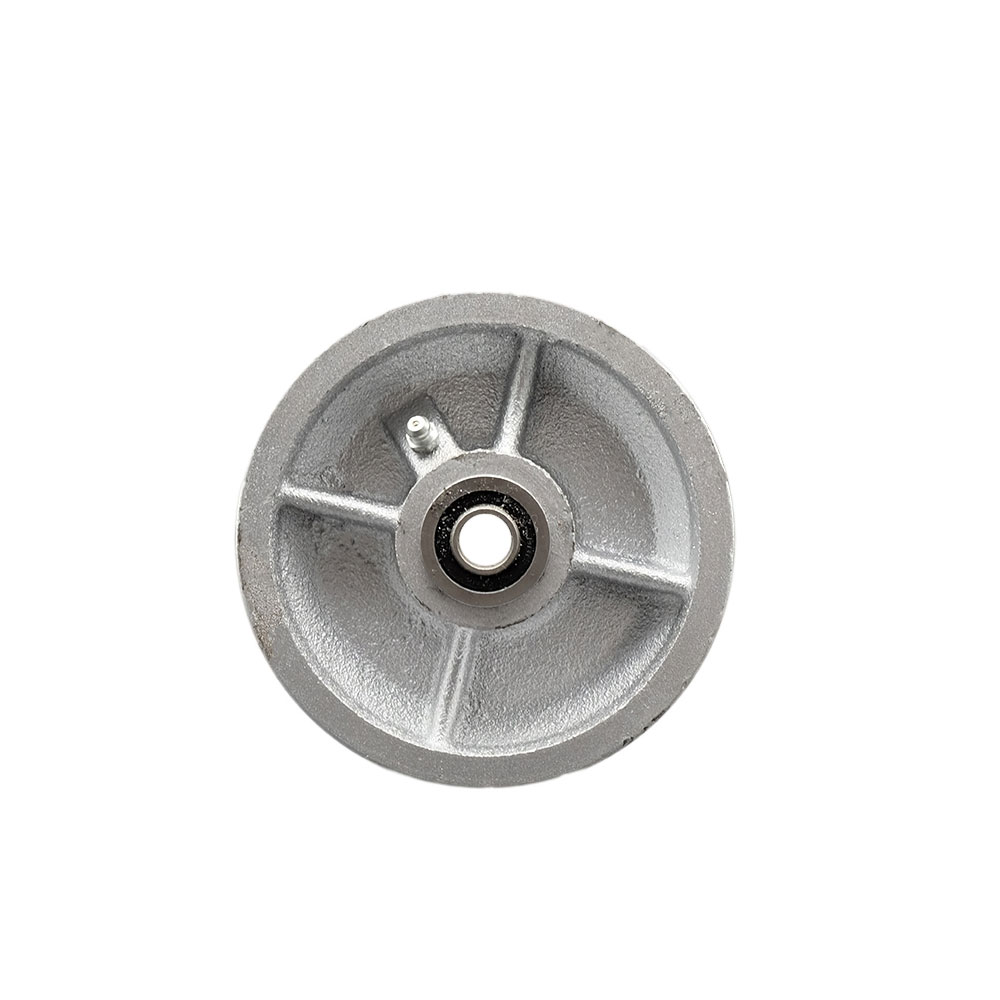

5" x 2" Semi Steel Cast Iron V-Groove Wheel Only with Precision Ball Bearing - 1/2" Bore - 1100 lbs Capacity per Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

SKU

SCC-VGB520

Condition

new

Quantity

1

UPC

670533891156

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

6 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Diameter

0.5

Bore Diameter UofM

inches

Bore Size

0.5

Capacity

1100

Color

5" Wheel - Silver

Heat Capacity

-45 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Lower Temperature

-45

Lower Temperature UofM

F

Material Type

Semi Steel Cast Iron

Maximum Temperature

180

Maximum Temperature UofM

F

Plating/Coating

Semi Steel Cast Iron

Size

V-Groove Semi Steel - Ball Bearing

Tread Width

2

Tread Width UofM

inches

Type

Semi Steel Cast Iron Wheel

Wheel Bearing

Sealed Precision Ball Bearings

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Semi Steel Cast Iron

Wheel Size

5" x 2"

Wheel Type

Semi Steel Cast Iron

Description

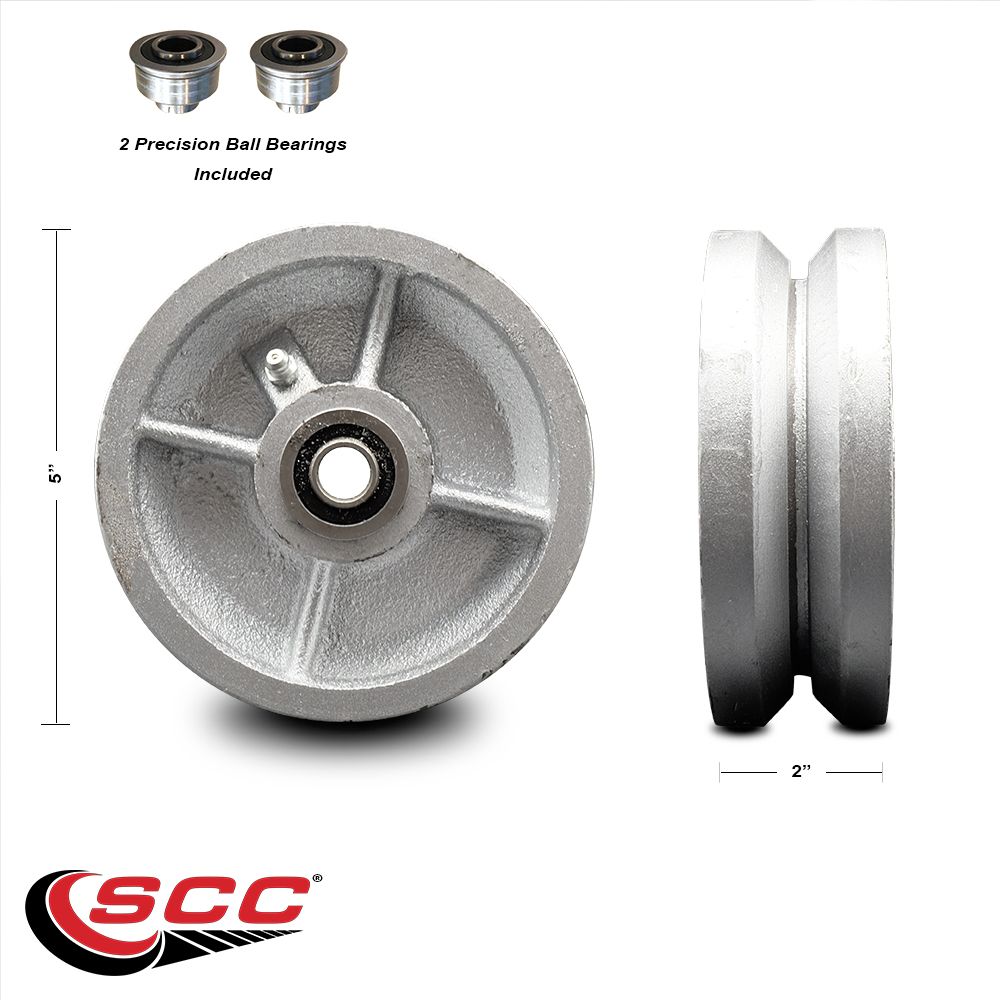

Listing is for one (1) Service Caster 5" diameter by 2" tread width Semi Steel Cast Iron V-Groove wheel with a precision ball bearing and 1/2" bore. Supports 1100 pounds (lbs) per wheel.When searching for a reliable and durable solution for replacement wheels, consider Service Caster’s semi steel cast iron v-groove wheels. With a precision ball bearing and ½” bore, v-groove wheels are designed to roll on 45 degree angled track, and also has a flat face suitable for non-tracked use. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. These versatile wheels are ideal for a wide range of applications specific to high capacity tracked workflows, but also for dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Service Caster’s Semi Steel Cast Iron V-Groove wheels come in four sizes – 4” x 2", 5” x 2", 6” x 2", and 8” x 2". • Weight capacity ranges from 800 lbs. on the 4” wheel, 1100 lbs. on the 5”, 1200 lbs. on the 6”, and 1400 lbs. on the 8”. • All wheel sizes have a 1/2" axle bore and a 2-7/16" hub length. The hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing. • Semi Steel Cast Iron V-Groove wheels provide excellent service on applications using a track. Service Caster’s Semi Steel Cast Iron V-Groove wheels offer a long lasting, high capacity option capable of rolling easily under heavy loads. An economic choice over steel, semi-steel cast iron wheels provide rugged abrasion resistant service. Service Caster’s Semi Steel Cast Iron wheels will keep Moving You Forward.
