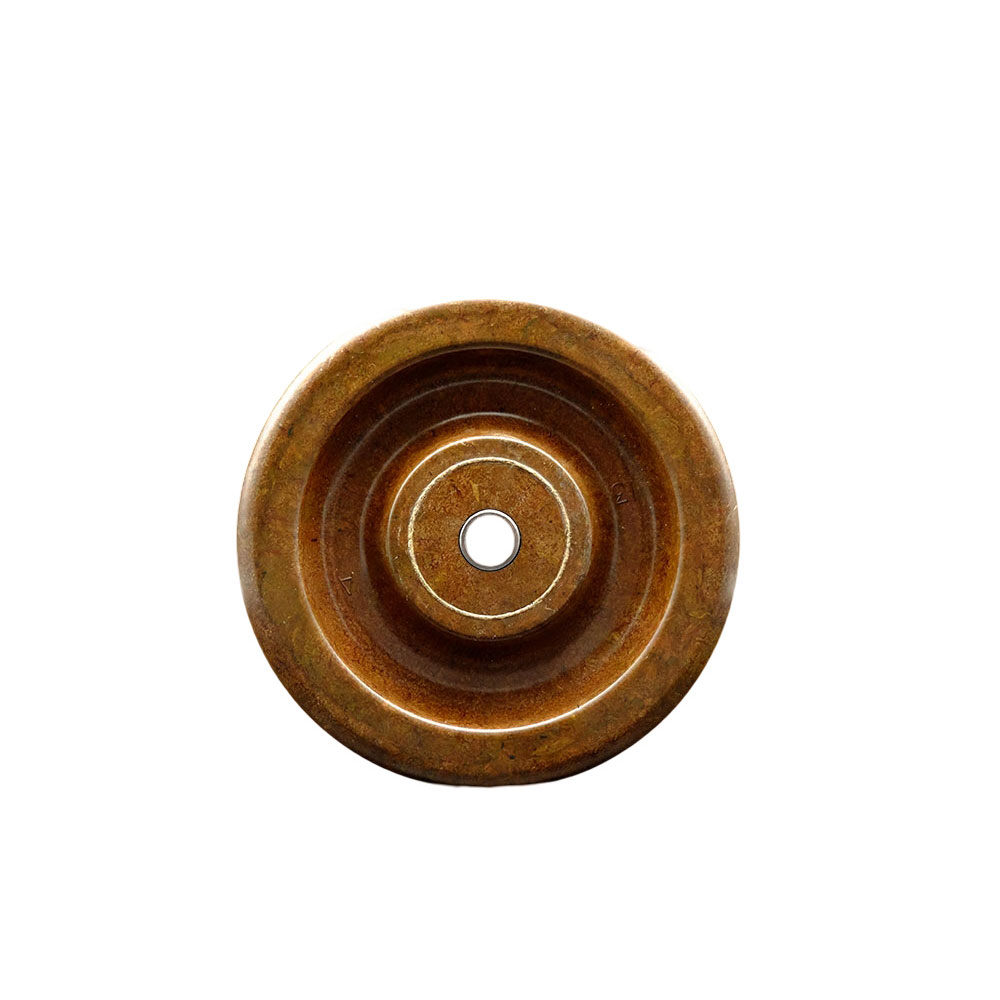

5" x 1.5" High Temperature Phenolic Wheel Only - 3/8" Bore - 400 lbs Capacity per Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

SKU

SCC-PHSHT515-38

Condition

new

Quantity

1

UPC

670533889795

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

3 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Size

0.375

Capacity

400

Color

5" Wheel - 3/8" Bore - Brown

Durometer

90D

Heat Capacity

475 degrees F continuous usage and 525 degrees F intermittent usage

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Lower Temperature

-45

Lower Temperature UofM

F

Material Type

High Temperature Phenolic

Maximum Temperature

525

Maximum Temperature UofM

F

Plating/Coating

High Tempertature Phenolic

Size

High Temp Phenolic - Plain Bore

Tread Width

1.5

Tread Width UofM

inches

Type

High Temperature Phenolic Wheel

Wheel Bearing

Spanner Bushing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

High Temperature Phenolic

Wheel Size

5" x 1-1/2"

Wheel Type

High Temperature Phenolic

Description

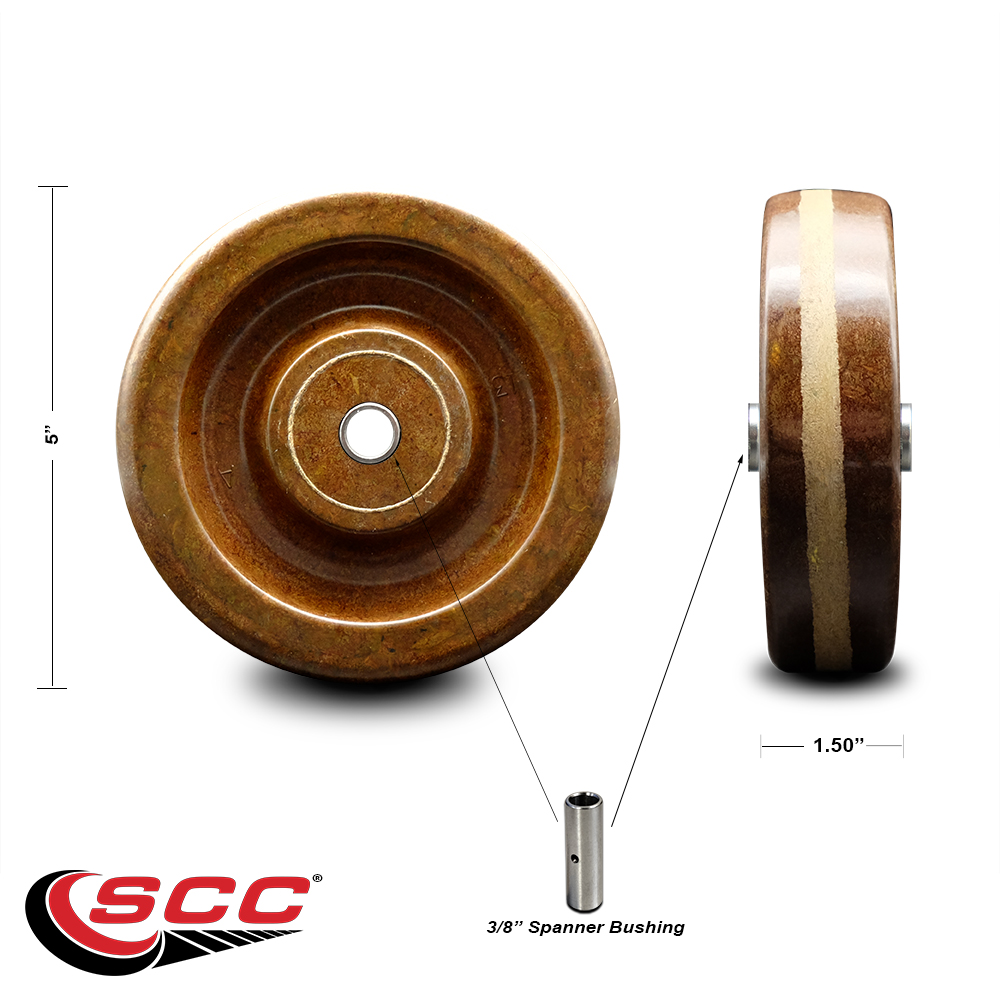

Listing is for one (1) Service Caster 5" diameter by 1.5" tread width high temperature phenolic wheel with 3/8" bore. Supports 400 pounds (lbs) per wheel.When searching for a reliable and durable solution for new applications or as a replacement wheel for casters and dollies, consider Service Caster’s High Temperature Phenolic resin. With a plain 3/8" bore for axle, high temperature phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic is highly resistant to oil, grease, water, and most solvents. Hardness scale 90 Shore (D) Durometer. An excellent choice for bakers racks and baking carts. 475°F for 30 continuous minutes. Longer durations under high heat will decrease the lifetime of the caster wheel. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Service Caster’s High Temperature Phenolic resin wheels come in four sizes – 3” x 1.5", 4” x 1.5", 5” x 1.5", and 6" x 1.5". • Weight capacity ranges from 400 lbs. on the 3” wheel, 400 lbs. on the 4”, 400 lbs. on the 5”, and 600 lbs. on the 6". • Each wheel size is offered with either a ½” axle bore or a 3/8” axle bore. In addition, all wheel sizes have a 1-5/8” hub length. The hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing. • High Temperature Phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic resin wheels feature a resistance to water, oil, and grease. Being non-metallic, these resin wheels are also spark proof. Finally, with a temperature rating of 475 degrees Fahrenheit for 30 continuous minutes, Service Caster’s High Temperature Phenolic wheels are ideal for bakers’ racks and baking carts.
