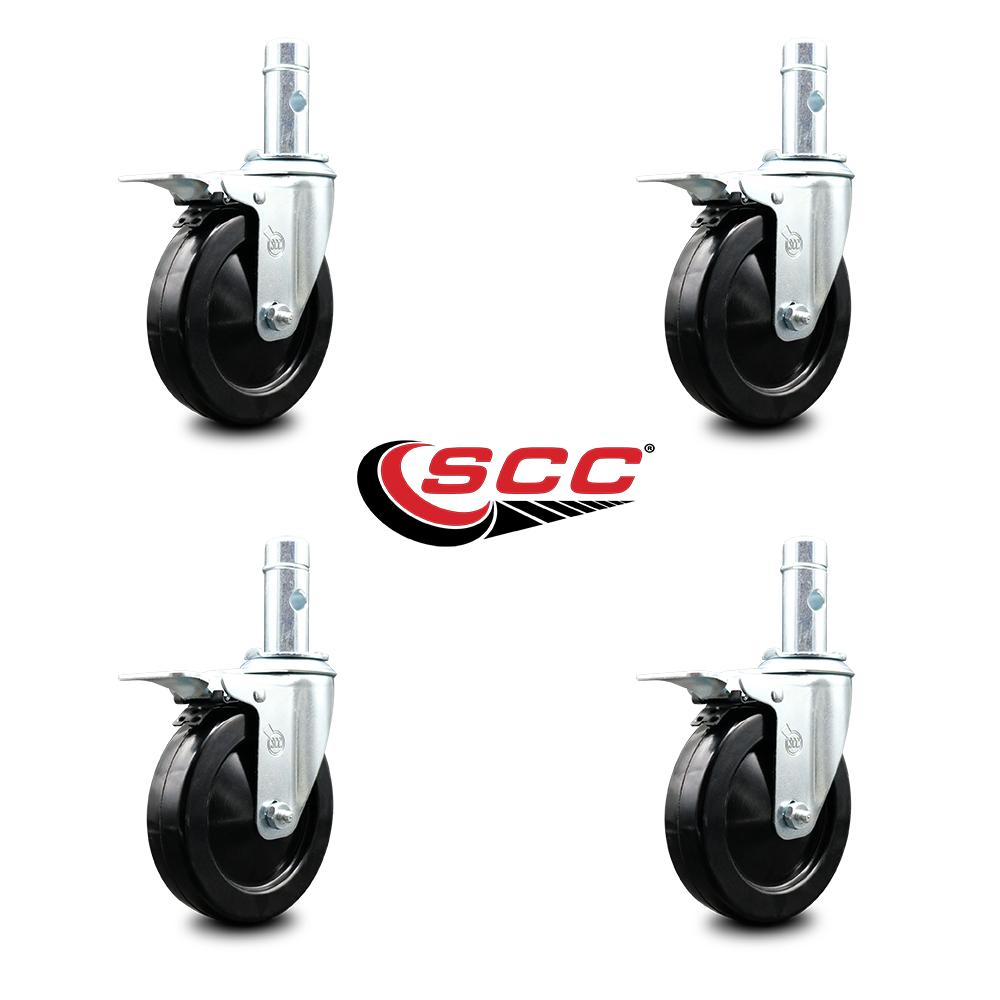

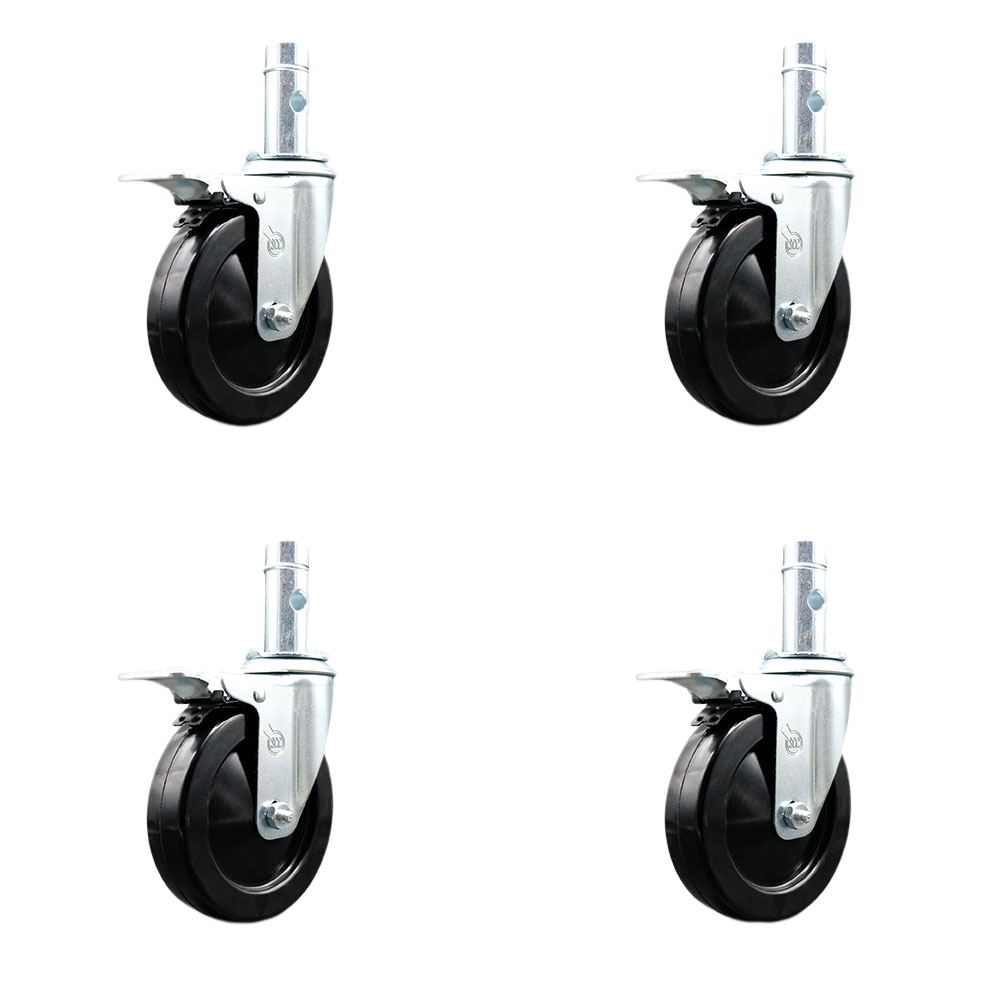

5 Inch Swivel Scaffolding Wheels Caster Set of 4 - Black Hard Rubber Wheels - 1-3/64 Inch x 2-3/4 Inch Grip Ring Stems-300 lbs. Capacity Per Caster-Total Lock Brakes-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-SFGRTTL20S514-HRS-1364-4

Condition

new

Quantity

4

UPC

734005059939

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

50 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

1200

Color

Swivel - Total Lock Brakes - Black - 4 PCS

Durometer

55D

Feature

4 casters with total lock brakes

Heat Capacity

-40 degrees F to 160 degrees F

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

(4) Total lock brakes

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Grip Ring Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Stem

1-3/64" diameter x 2-3/4" length grip ring stem

Stem Diameter

1-3/64"

Stem Length

2-3/4"

Stem Length UofM

inches

Stem Type

Grip Ring Stem

Tread Width

1.25

Tread Width UofM

inches

Type

(4) Swivel casters w/total lock brake

Wheel Bearing

Plain Bore

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Hard Rubber

Wheel Size

5" x 1.25"

Wheel Type

Hard Rubber

Description

Listing is for four (4) Service Caster Series #20 scaffolding swivel caster set with a 5" diameter by 1-1/4" wide hard rubber wheel and a 1-3/64” x 2-3/4" grip ring stem capable of supporting 300 pounds (lbs.) per caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 hard rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The hard rubber wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Scaffold Caster with Double Total Locking Brake Mechanism • Higher load capacities and impact resistance than comparable wheels. Resistant to most chemicals and oils. • Weight Capacity: 1200 lbs. • Overall Grip Ring Stem Dimensions: 1-3/64" diameter x 2-3/4" length grip ring stem
