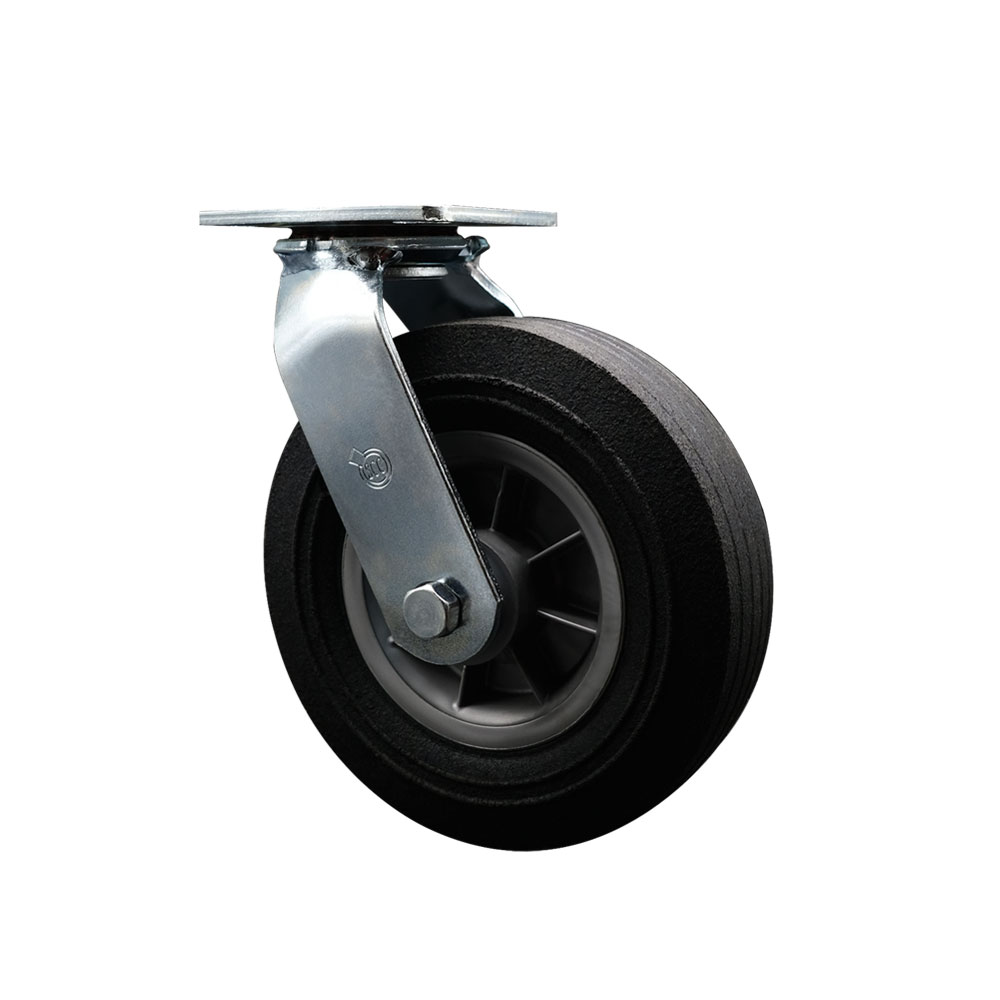

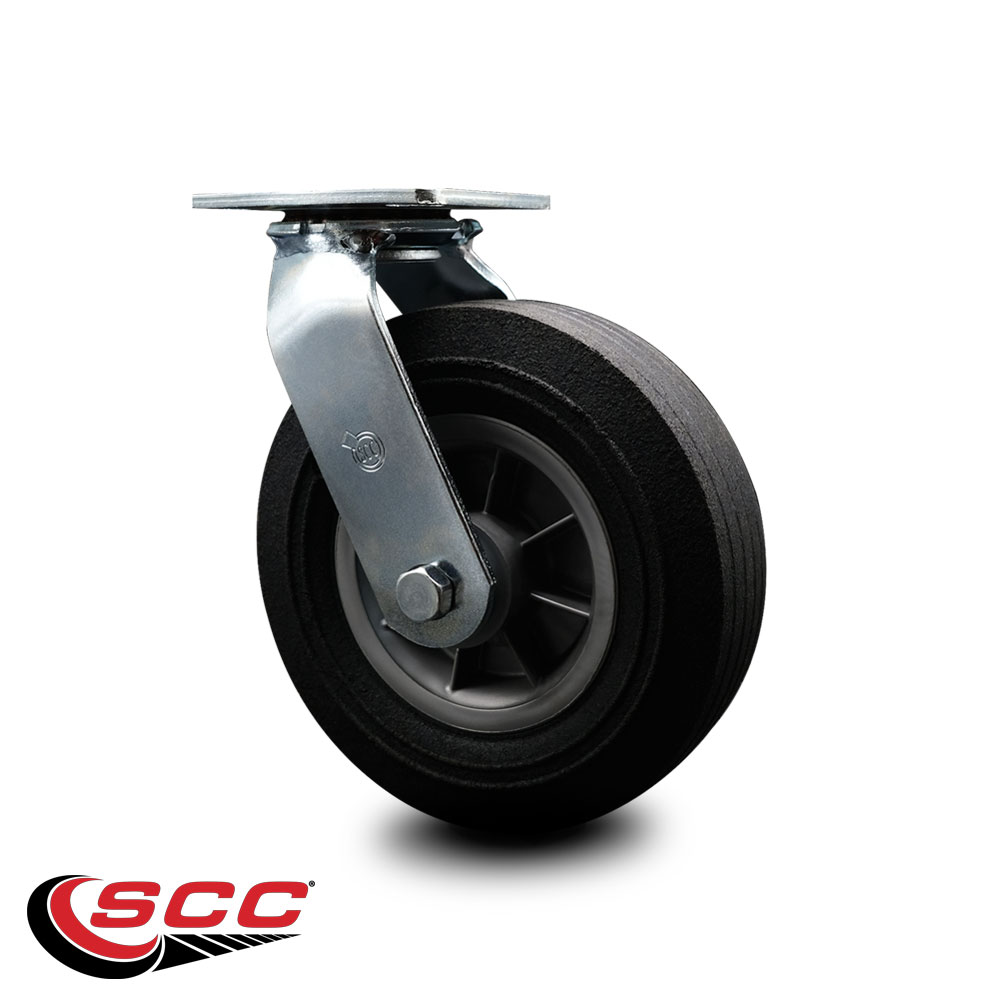

475UCCSTR8SC Lavex Industrial 8 Inch Swivel Caster - Fits Lavex Models 475UCPN2EHBK 475UCPN2EHGY 475UCPN2FTBK 475UCPN2FTGY - Light Duty Replacement - Semi-Pneumatic Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #100

SKU

LAV-SCC-100S825-SNB

Condition

new

Quantity

1

UPC

734005217193

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

10 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

440

Color

Swivel - No Brake - Black

Durometer

75-80A

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

9-1/2"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Flat Free Semi Pneumatic Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

9-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

8" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2.5

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

8

Wheel Diameter UofM

inches

Wheel Material

Flat Free Semi Pneumatic Tread on Polyolefin Core

Wheel Size

8" x 2.5"

Wheel Type

Flat Free Semi Pneumatic Tread on Polyolefin Core

Description

Listing is for one (1) Service Caster Series #100 swivel caster with a 8" diameter by 2-1/2" wide semi pneumatic wheel capable of supporting 440 lbs. per caster. 475UCCSTR8SC replacement part fits Lavex utility carts. When searching for a reliable and durable solution to your Lavex Industrial replacement caster needs, consider Service Caster Series 100 top plate semi-pneumatic wheel casters. The Service Caster Series #100 features semi-pneumatic wheels that are ideal for off road terrain with compacted surfaces. The large 8 inch diameter wheel with a 2-1/2 inch wide tread balances a cushioned ride with medium pay loads. The semi-pneumatic wheels offer a higher cushion feel similar to pneumatic tires without the hassle of flat tires. Service Caster’s flat free semi-pneumatic wheels provide enhanced noise reduction and consistent roll on any surface, for an overall superior ride under any condition. These versatile casters are ideal for a wide range of applications, but are commonly used on Lavex Industrial utility carts. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. NOTE: NOT FOR HIGHWAY USE! MANUAL SPEEDS ONLY! • Fits Utility Carts • Compatible Models: 475UCPN2EHBK, 475UCPN2EHGY, 475UCPN2FTBK, 475UCPN2FTGY, 475UCPN2PHBK, 475UCPN2PHGY, 475UCPN3EHBK, 475UCPN3FTBK, 475UCPN3PHBK and 475UCPN3PHGY • Weight Capacity: 440 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
