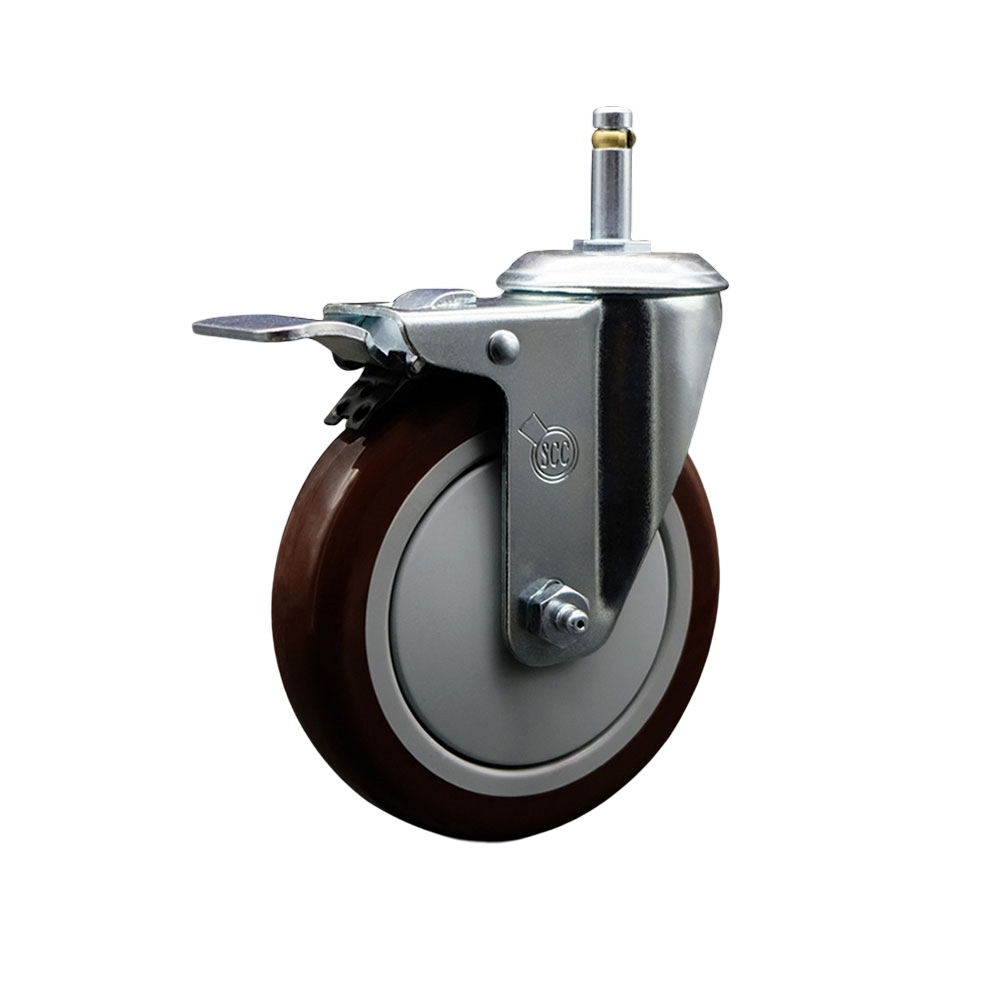

4615PCB 5PCB Metro 5 Inch Swivel Caster with Brake-Fits Metro Models Super Erecta Mobile Shelving Posts, Carts, and Shelving Units-Light Duty Replacement-Maroon Polyurethane Wheel-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

MET-SCC-GRTTL20S514-PPUB-MRN-716138

Condition

new

Quantity

1

UPC

734005217452

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

350

Color

Swivel - Total Lock Brake - Grip Ring Stem

Durometer

60D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Total Lock Brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Grip ring stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Maroon Polyurethane Wheel

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster w/total lock brake

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

5" x 1-1/4"

Wheel Type

Polyurethane Tread on Polyolefin Core

Description

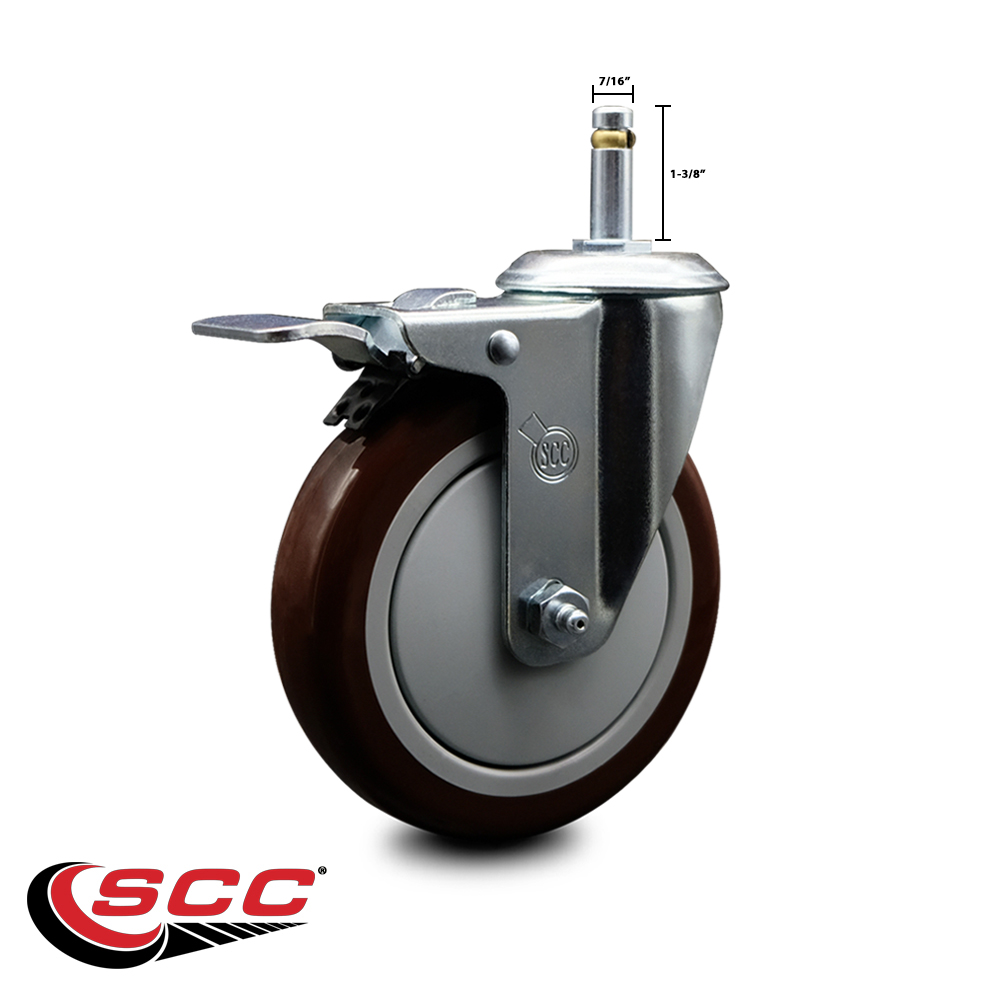

Listing is for one (1) Service Caster Series #20 swivel caster with total lock brake and a 5" diameter by 1-1/4" wide maroon polyurethane wheel and 7/16" diameter x 1-3/8" length grip ring stem. Supports up to 350 lbs. per caster. 4615PCB 5PCB replacement part fits Metro Super Erecta mobile shelf posts, carts and shelving units. When searching for a reliable and durable solution to your Metro replacement caster needs, consider Service Caster Series 20 grip ring stem polyurethane tread on polyolefin core wheel casters. The Service Caster Series #20 features polyurethane tread on polyolefin core wheels that offer a softer tread for smoother travel while also resisting damage from debris. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Metro replacement casters balance high pay loads with smooth and quiet operation. These versatile casters are ideal for a wide range of applications, but are commonly used on Metro Super Erecta mobile shelf posts, carts and shelving units. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Super Erecta Mobile Shelving Posts, Mobile Carts, and Shelving Units • Compatible Models: Super Erecta Mobile Posts, Carts and Shelving Units • Weight Capacity: 350 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
