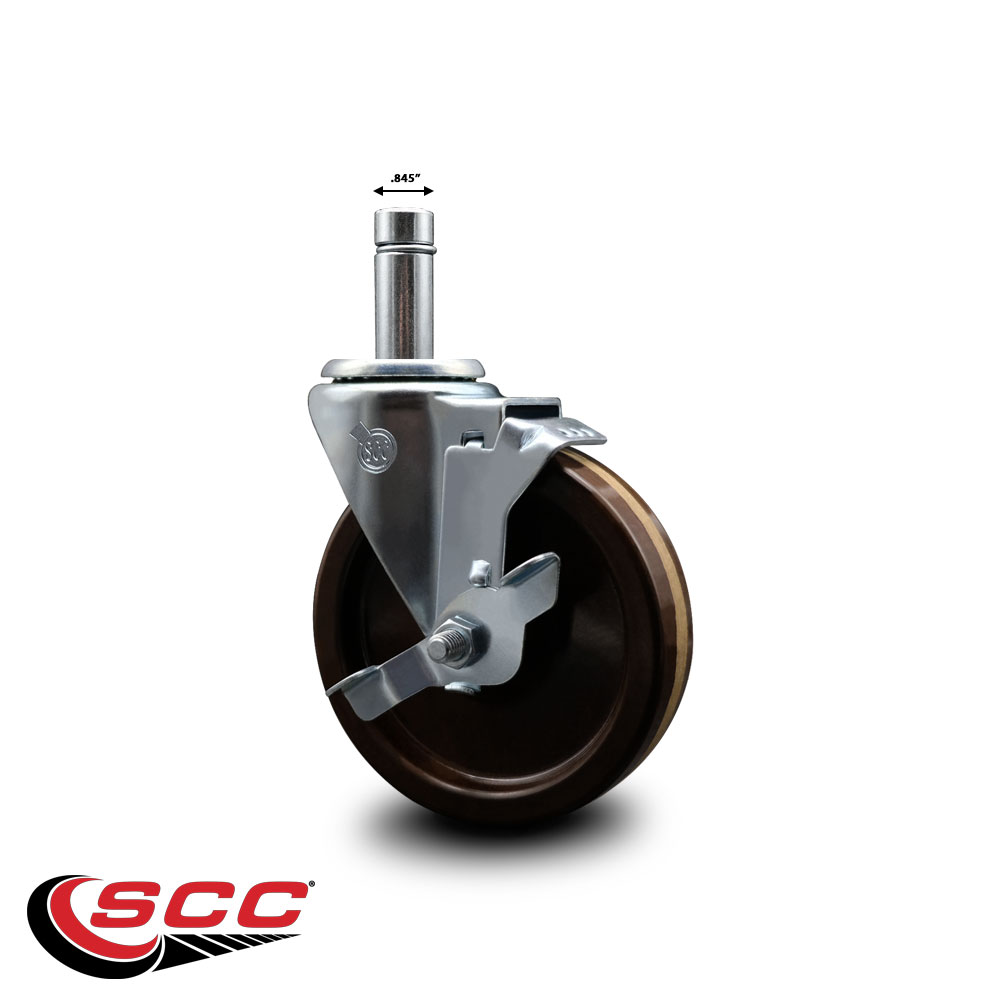

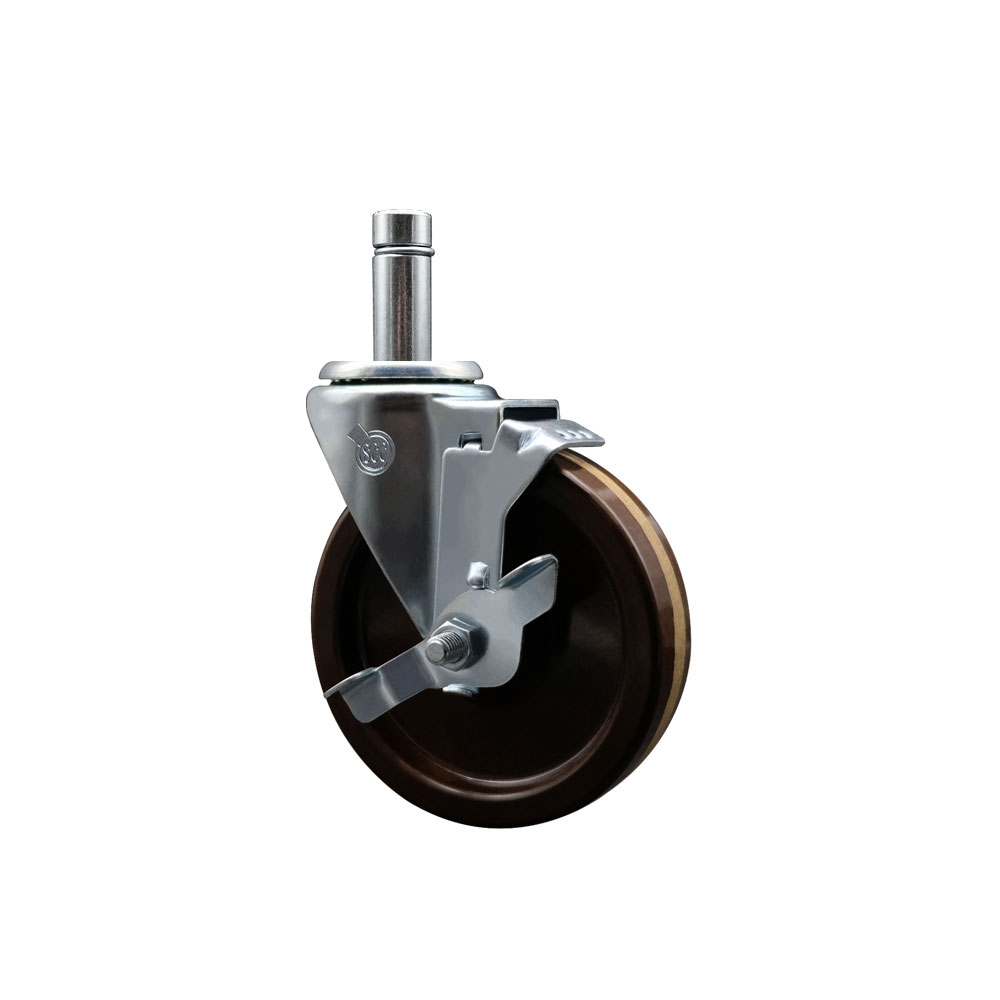

4615MHTPB 5MHTPB Metro 5 Inch Swivel Grip Ring Stem Caster with Brake - Fits Metro Models 33UPS-SW 54UPS-SW 63UPS-SW - Light Duty Replacement - High Temperature Phenolic Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

MET-SCC-GR20S514-PHSHT-TLB-845

Condition

new

Quantity

1

UPC

734005219289

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

300

Color

Swivel - Top Lock Brake - Grip Ring Stem

Durometer

90D

Heat Capacity

475 degrees F continuous usage and 525 degrees F intermittent usage

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Top lock brake

Lower Temperature

-45

Lower Temperature UofM

F

Material Type

High Temperature Phenolic

Maximum Temperature

525

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Grip Ring Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" High Temp Phenolic Wheel

Stem

.845" diameter x 2" length grip ring stem

Stem Diameter

.845"

Stem Length

2

Stem Length UofM

inches

Stem Type

Grip Ring Stem

Tread Width

1.25

Tread Width UofM

inches

Type

(1) swivel caster w/top lock brake

Wheel Bearing

Plain Bore

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

High Temperature Phenolic

Wheel Size

5" x 1-1/4"

Wheel Type

High Temperature Phenolic

Description

Listing is for one (1) Service Caster Series #20 swivel caster with top lock brake and a 5" diameter by 1-1/4" wide high temperature phenolic wheel and .845" diameter x 2" length grip ring stem. Supports up to 300 lbs. per caster. 4615MHTPB 5MHTPB replacement part fits Metro lab carts and shelving units. When searching for a reliable and durable solution to your Metro replacement caster needs, consider Service Caster’s Series 20 sleeve bearing high temperature phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Metro Lab Carts and Shelving Units • Compatible Models: 33UPS-SW, 54UPS-SW and 63UPS-SW • Weight Capacity: 300 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
