Browse / Parts & Components / 4605MPBX Regency 5 Inch Swivel Caster with Brake - Fits Regency Models 460BSCRT1836 460BSCRT1848 460BSCRT2436 460BSCRT2448 - Light Duty Replacement - Black Polyurethane Wheel - Service Caster Brand
4605MPBX Regency 5 Inch Swivel Caster with Brake - Fits Regency Models 460BSCRT1836 460BSCRT1848 460BSCRT2436 460BSCRT2448 - Light Duty Replacement - Black Polyurethane Wheel - Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- REG-SCC-GR20S514-PPUB-BLK-TLB-845
- Condition
- new
- Quantity
- 1
- UPC
- 734005217483
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 8 x 8 x 8 in
- Shipping weight
- 4 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Capacity
- 350
- Color
- Swivel - Top Lock Brake - Grip Ring Stem
- Durometer
- 60D
- Heat Capacity
- -20 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 6-1/8"
- Locking Type
- Top Lock Brake
- Lower Temperature
- -20
- Lower Temperature UofM
- F
- Material Type
- Polyurethane Tread on Polyolefin Core
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 6-1/8"
- Mounting Type
- Grip ring stem
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Stem
- Locking Castersor Wheels
- Yes
- Swivels
- Yes
- Size
- 5" Black Polyurethane Wheel
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- Swivel caster w/top lock brake
- Wheel Bearing
- Precision Ball Bearing
- Wheel Diameter
- 5
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyurethane Tread on Polyolefin Core
- Wheel Size
- 5" x 1-1/4"
- Wheel Type
- Polyurethane Tread on Polyolefin Core
Description

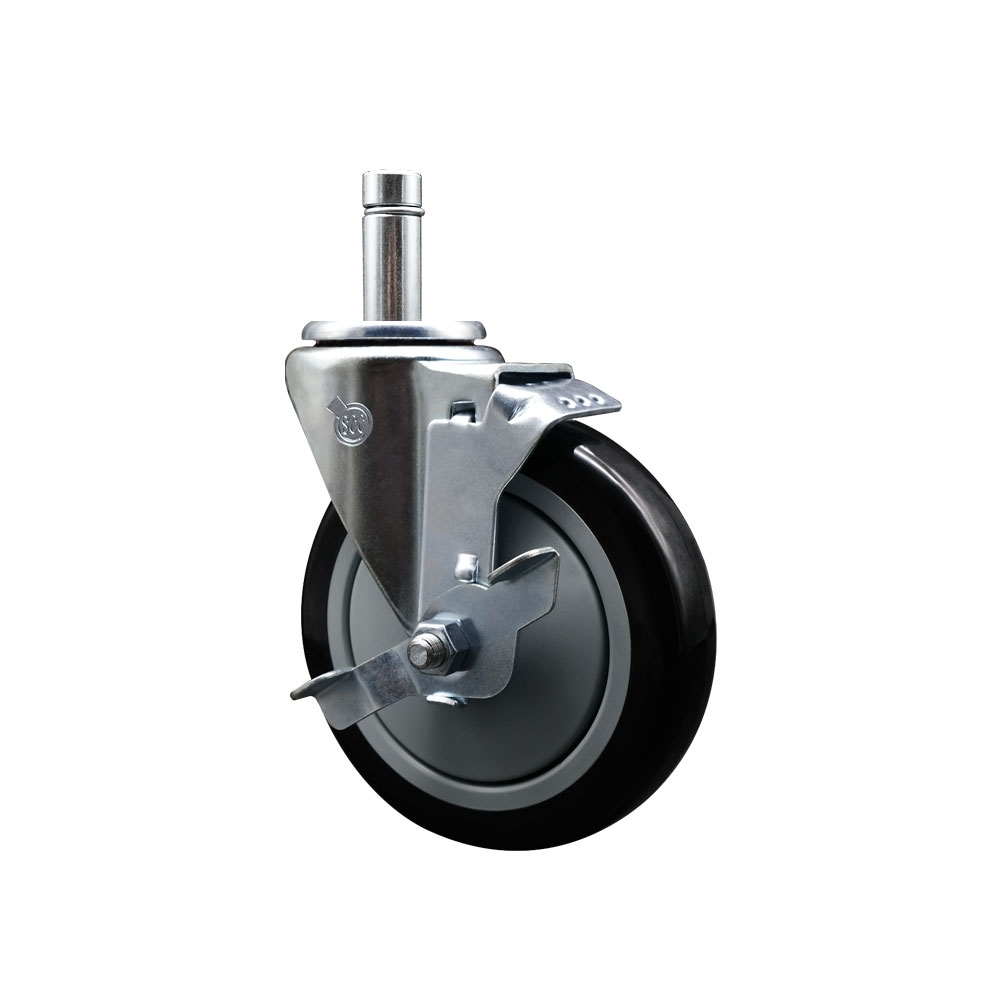

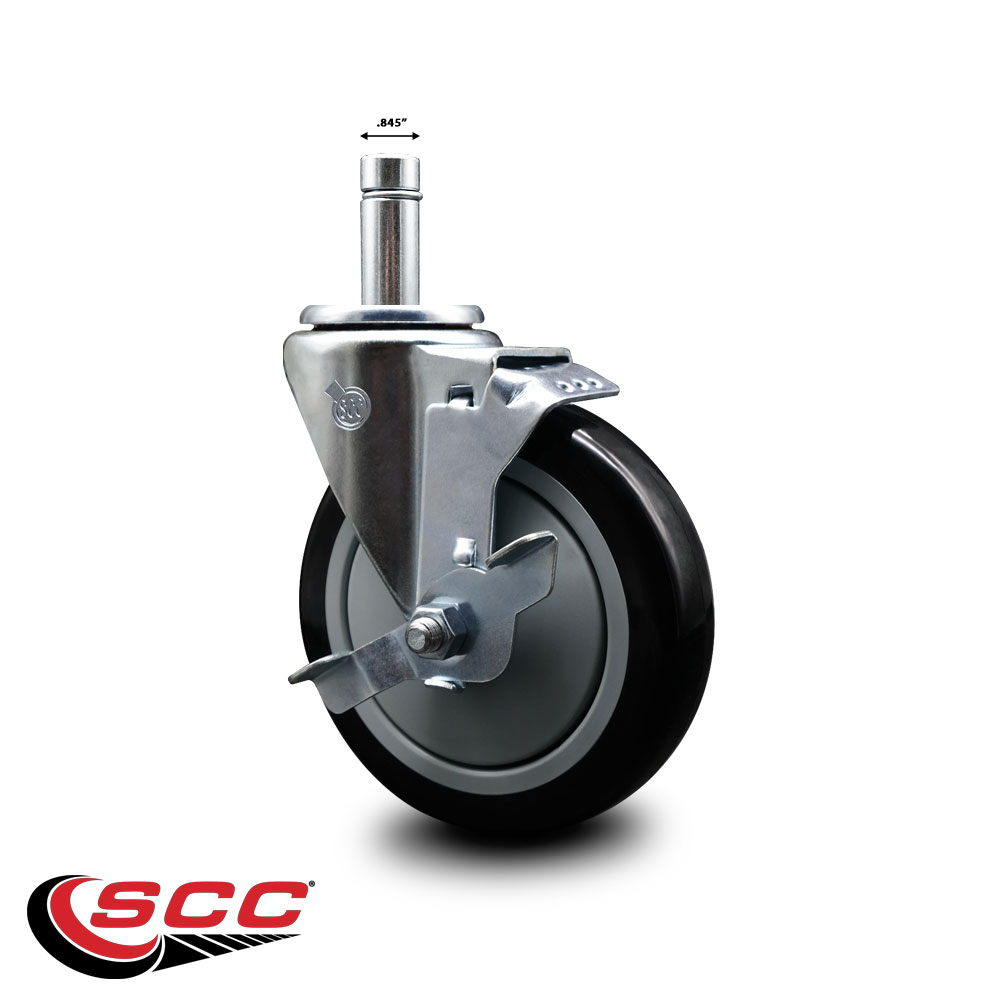

Listing is for one (1) Service Caster Series #20 swivel caster with top lock brake and a 5" diameter by 1-1/4" wide black polyurethane wheel and .845" diameter x 2" length grip ring stem. Supports up to 350 lbs. per caster. 4605MPBX replacement part fits Regency free standing shelving. When searching for a reliable and durable solution to your Regency replacement caster needs, consider Service Caster Series 20 grip ring stem polyurethane tread on polyolefin core wheel casters. The Service Caster Series #20 features polyurethane tread on polyolefin core wheels that offer a softer tread for smoother travel while also resisting damage from debris. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Regency replacement casters balance high pay loads with smooth and quiet operation. These versatile casters are ideal for a wide range of applications, but are commonly used on Regency free standing shelving. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Regency Free Standing Shelving • Compatible Models: 328KTC143654, 328KTC144854, 328KTC183674, 328KTC184874, 5A336EC, 5A356EC, 5A366EC, 5A436EC, 5A456EC, 5A466EC, 5A536EC, 5A556EC, 5A566EC, 5MPB, 5MPBX, 5Q537EG3, 5Q557EG3, 5Q567EG3, 5X537EGX3, 5X557EGX3, 5X567EGX3, A336EC, A356EC, A366EC, A436EC, A456EC, A466EC, A536EC, A556EC, A566EC, F536EG, F556EG, F566EG, N336EBR, N336EC, N356EBR, N356EC, N366BBR, N366EBR, N366EC, N436EC, N456EC, N466EC, N536EBR, N536EC, N556EBR, N556EC, N566EBR, N566EC, Q336EG3, Q356EG3, Q366EG3 and Q456EG3 • Weight Capacity: 350 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
