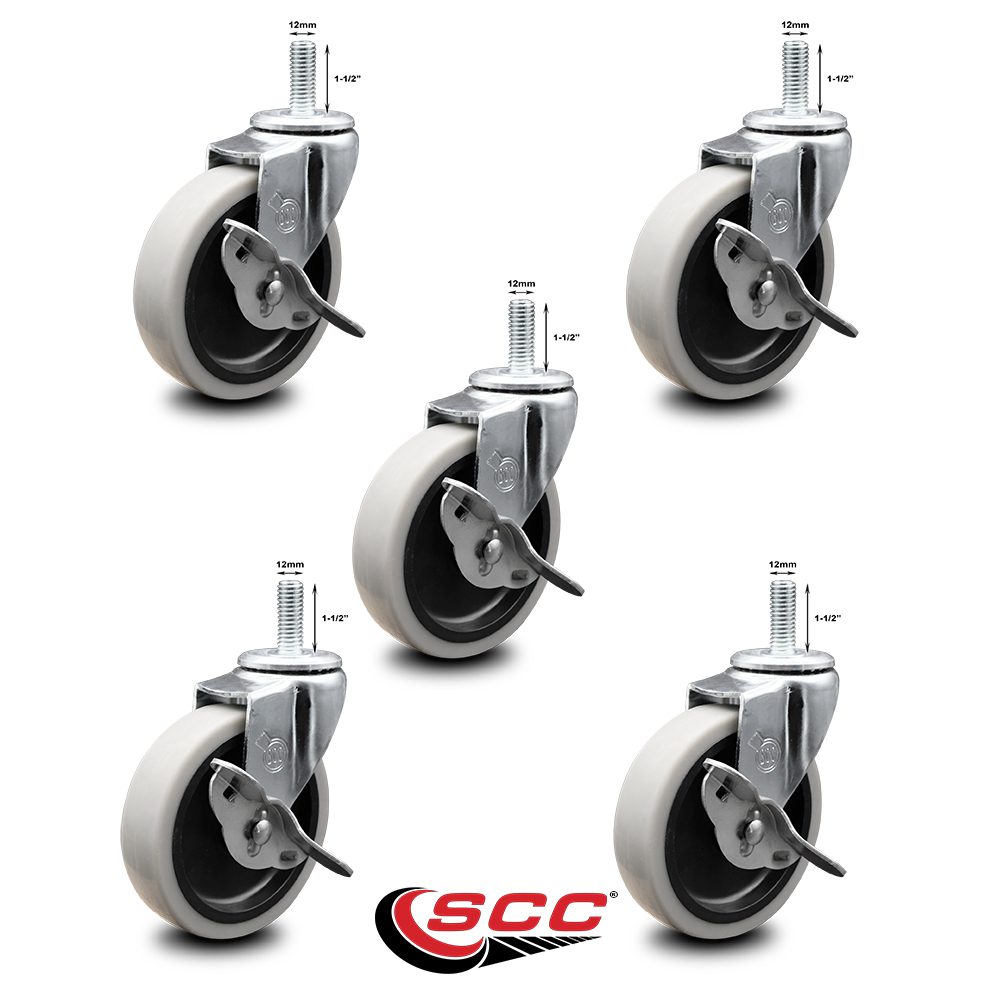

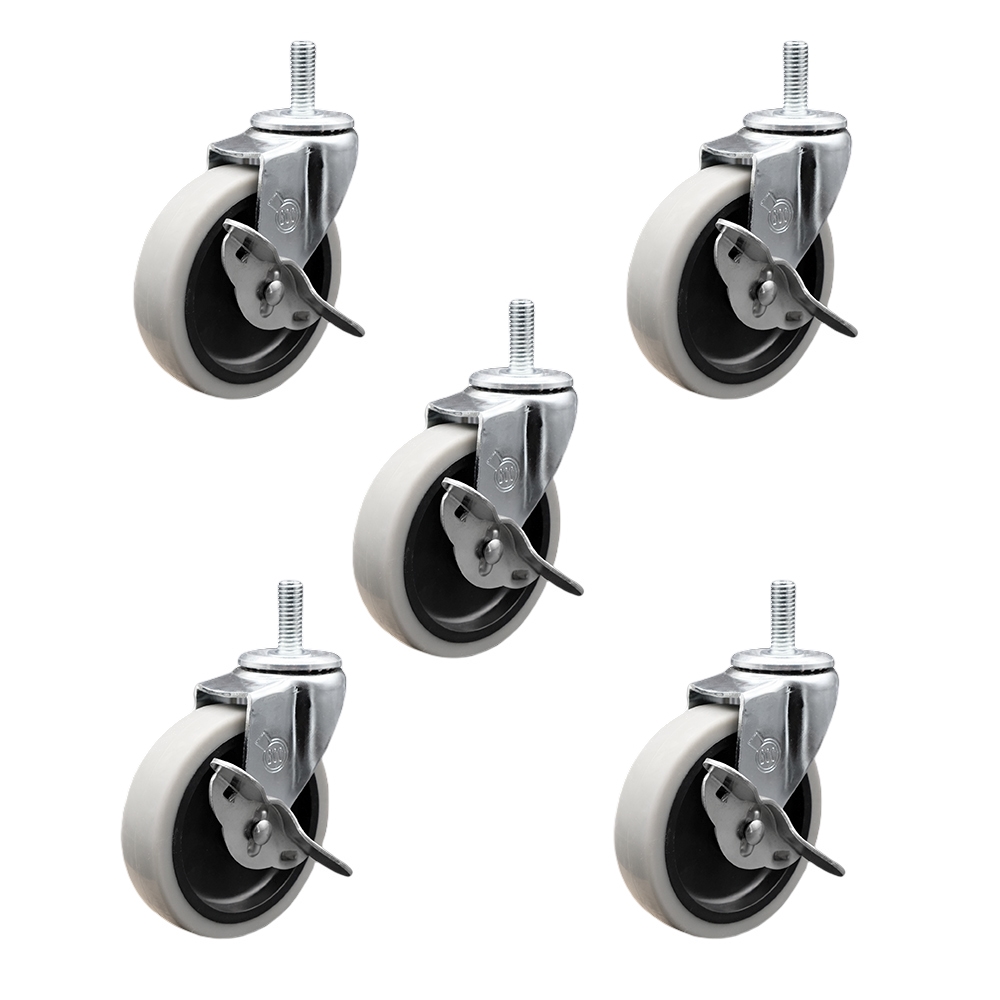

4 Inch Swivel Thermoplastic Rubber Caster Wheels and 12 mm - 1.75 TPI x 1.5 Inch Threaded Stem Caster and Brake - 625 lbs. Total Capacity - Set of 5 - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #05

SKU

SCC-TS05S410-TPRS-SLB-M1215-5

Condition

new

Quantity

5

UPC

670533949840

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

4.75 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

125

Color

5 Swivel - Side Lck Brakes - 12mm Threaded Stem

Durometer

85A

Item Weight Unit of Measure

pounds

Load Height

4-3/4"

Locking Type

Side Lock Brake

Mounting Height

4-3/4"

Mounting Type

Threaded Stem

Plating/Coating

Thermoplastic Rubber

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Thermoplastic Rubber Wheel

Stem

12mm diameter - 1.75 TPI x 1-1/2" length threaded stem

Stem Diameter

12mm

Stem Length

1.5

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

1.5

Type

(5) Swivel casters

Wheel Bearing

Plain Bore

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Tread on Polyolefin Core

Wheel Size

4"

Wheel Type

Thermoplastic Rubber

Description

Listing is for five (5) 4" diameter thermoplastic rubber wheels and a 12mm diameter – 1.75 TPI x 1.5” threaded stem with a side lock brake. Supports up to 125lbs per caster. When searching for a reliable and durable solution to your furniture needs, consider Service Caster’s Series 05 polyurethane, thermoplastic & soft rubber casters. The Service Caster 05 series is ideal for light duty applications, and is the perfect solution as new or replacement parts for chairs, tables, medical carts and other home and office furniture. This durable caster provides easy maneuverability for a smooth and quiet ride, and features dual ball bearing heat treated raceway construction, with a zinc plated finish that provides durability under any condition. Wheels are available in non-marking polyurethane, thermoplastic rubber and soft rubber, excellent for carpet, concrete and tile floor surfaces. Mounting options include top plate, grip neck, grip ring and standard and metric threaded stem sizes. Also, the innovative expanding stem, that can easily adapt to the inside diameter of an opening, allowing for a secure fit in round or square tubes. • These Service Caster Series #05 casters offer various wheel sizes and mounting heights: 2” Wheel: 2-5/8” mounting height; 3” wheel: 3-1/2” mounting height; 4” wheel: 4-3/4” mounting height; 5” wheel: 5-3/4” mounting height. • Service Caster Series #05 Thermoplastic Rubber Weight Capacity: 2": 80 lbs Capacity/Caster; 3": 110 lbs Capacity/Caster; 4": 125 lbs Capacity/Caster and 5": 130 lbs Capacity/Caster • Threaded Stem Size: 12mm diameter - 1.75 TPI x 1-1/2" length • Brake options include a side lock brake (SLB). The side lock brake (SLB) places a positive locking force against the wheel hub locking the wheel only.
