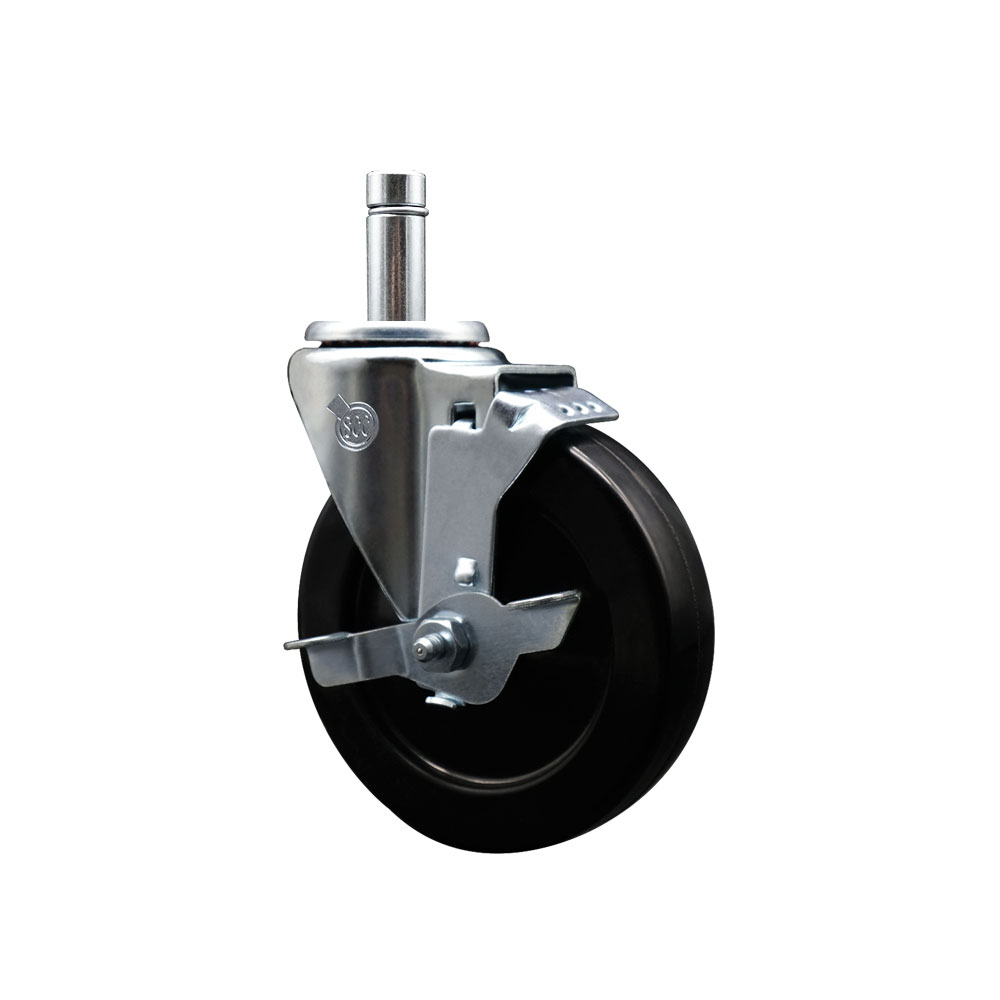

359PLCB5140B Regency 5 Inch Swivel Caster with Brake - Fits Regency Models 460EBPC14 460EBPC27 460EBPC34 460EBPC54 460EBPC64 460EBPC74 -Light Duty Replacement-Hard Rubber Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

REG-SCC-GR20S514-HRS-TLB-845

Condition

new

Quantity

1

UPC

734005217803

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

350

Color

Swivel - Top Lock Brake - Grip Ring Stem

Durometer

60D

Heat Capacity

-40 degrees F to 160 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Top Lock Brake

Lower Temperature

-40

Lower Temperature UofM

F

Material Type

Hard Rubber

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Grip ring stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Hard Rubber Wheel

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster w/top lock brake

Wheel Bearing

Plain Bore

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Hard Rubber

Wheel Size

5" x 1-1/4"

Wheel Type

Hard Rubber

Description

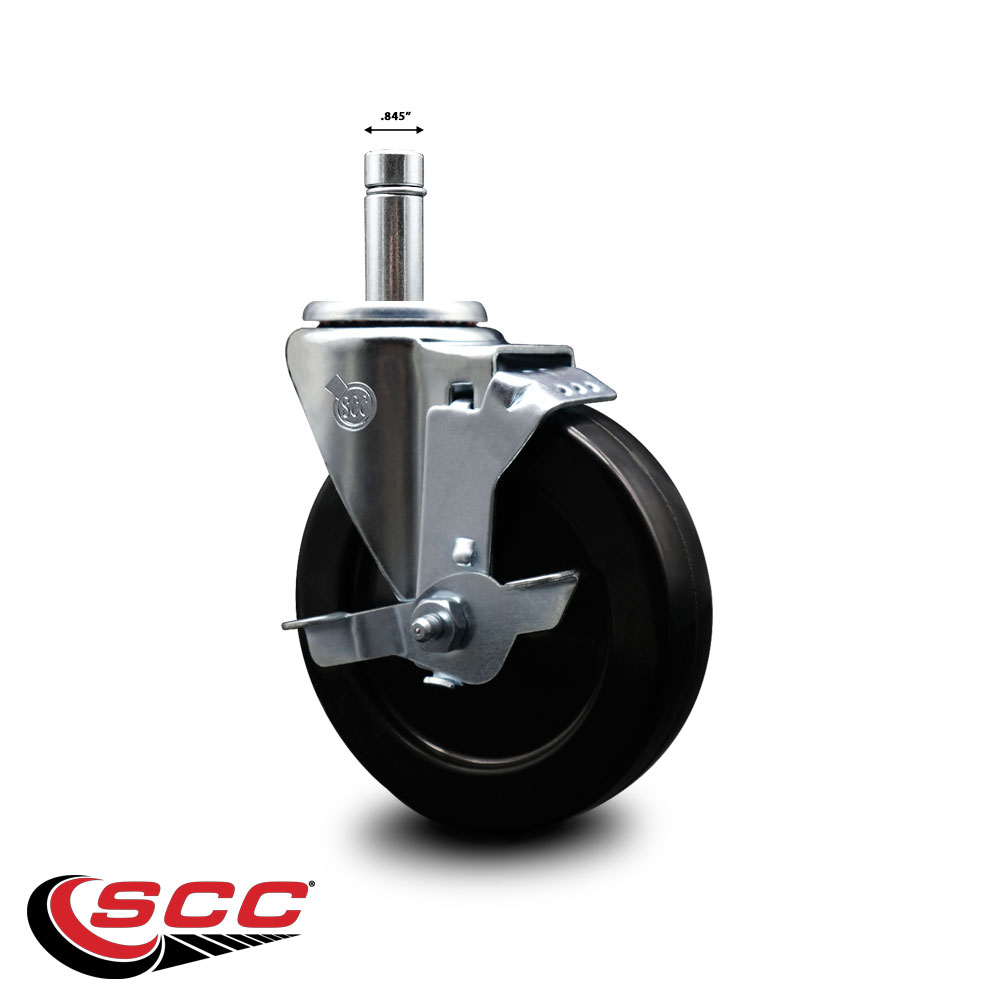

Listing is for one (1) Service Caster Series #20 swivel caster with top lock brake and a 5" diameter by 1-1/4" wide hard rubber wheel and .845" diameter x 2" length grip ring stem. Supports up to 350 lbs. per caster. 359PLCB5140B replacement part fits Regency shelving unit. When searching for a reliable and durable solution to your Regency replacement caster needs, consider Service Caster Series 20 grip ring stem hard rubber wheel casters. The Service Caster Series #20 features hard rubber wheels that not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Regency replacement casters offer hard rubber wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications, but are commonly used on Regency shelving unit. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Regency Shelving Systems • Compatible Models: 5A336BC, 5A356BC, 5A366BC, 5A436BC, 5A456BC, 5A466BC, 5A536BC, 5A556BC, 5A566BC, A336BC, A356BC, A366BC, A436BC, A456BC, A466BC, A536BC, A556BC, A566BC, N336BBR, N336BC, N356BBR, N356BC, N366BBR, N366BC, N436BC, N456BC, N466BC, N536BBR, N536BC, N556BBR, N556BC, N566BC, Q336BG3, Q356BG3, Q366BG3, Q456BG3, Q466BG3, Q536BG3, Q556BG3, Q566BG3, X336BGX3, X536BGX3, X556BGX3, X566BGX3, 460EBPC14, 460EBPC27, 460EBPC34, 460EBPC54, 460EBPC64, 460EBPC74, 460EBPC8, 460EBPC86 and 460ECPC14 • Weight Capacity: 350 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
