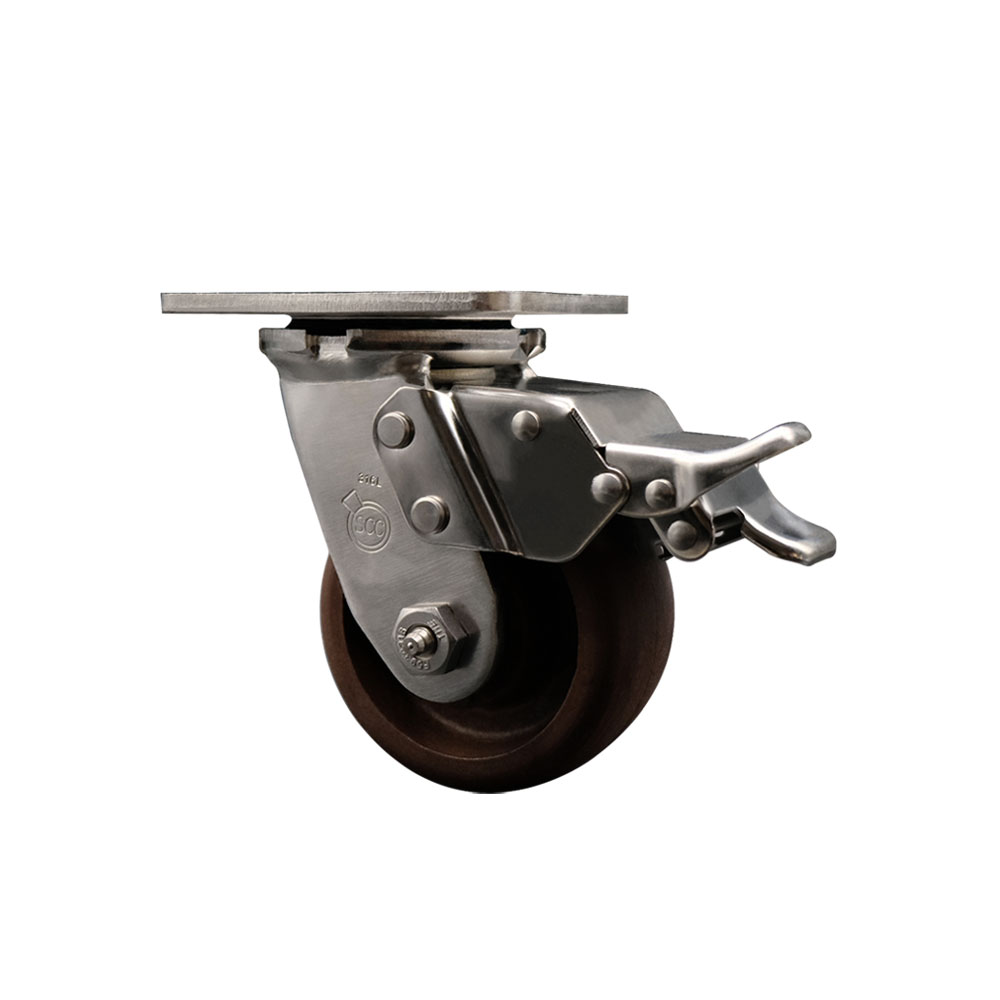

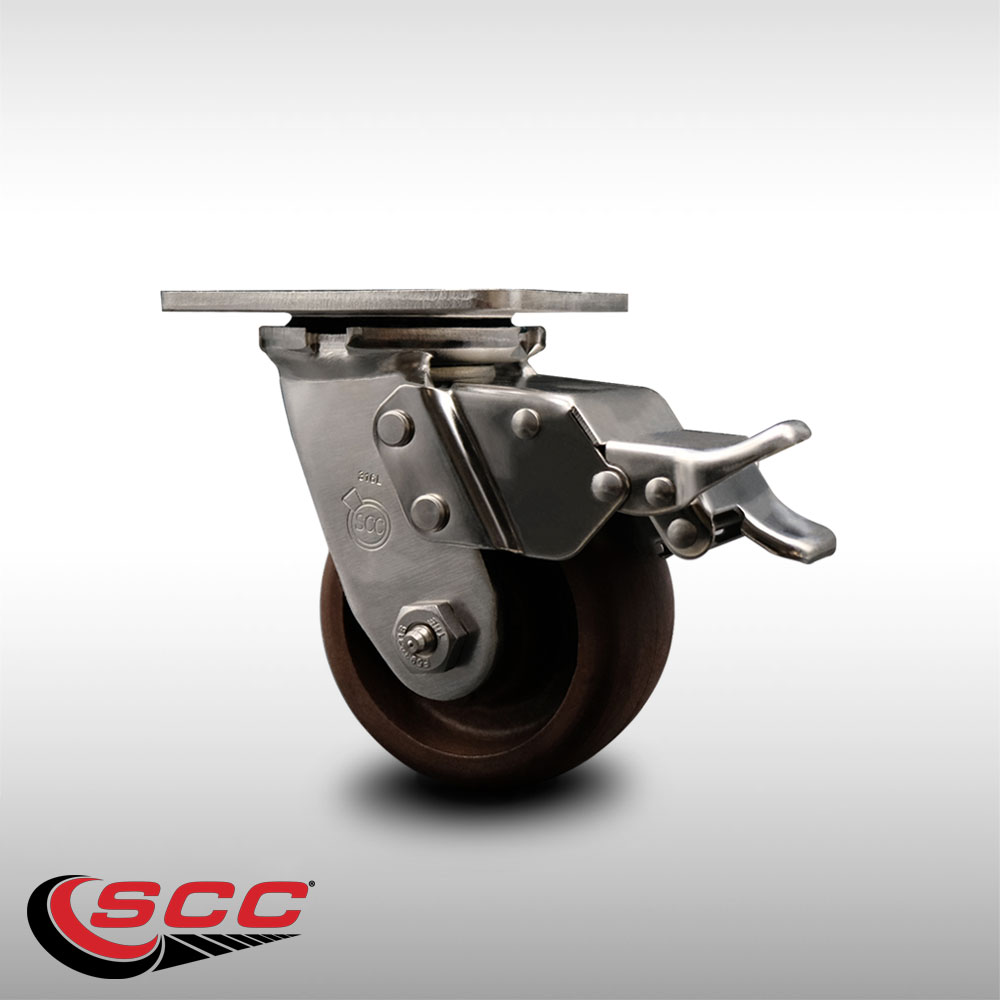

316 Stainless Steel Heavy Duty Swivel Top Plate Caster with Total Lock Brake and 4 Inch High Temperature Glass Filled Nylon Wheel - 600 lbs. Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-SS316TTL30S420-GFNRHT

Condition

new

Quantity

1

UPC

734005498905

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

7 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

600

Color

Swivel - Total Lock Brake - Brown

Durometer

85D

Heat Capacity

-45 degrees F to 550 degrees F

Item Weight Unit of Measure

pounds

Load Height

5-5/8"

Locking Type

Total Lock Brake

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

550

Maximum Temperature UofM

F

Mounting Height

5-5/8"

Mounting Type

Top Plate

Plating/Coating

316 Polished Stainless Steel

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Stain Resistant

Yes

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster w/total lock brake

Wheel Bearing

Roller Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

High Temperature Glass Filled Nylon

Wheel Size

4" x 2"

Wheel Type

High Temperature Glass Filled Nylon

Description

Listing is for one (1) Service Caster Series #30 316 stainless steel swivel caster with a 4" diameter by 2" wide high temperature glass filled nylon wheel and roller wheel bearings and a total lock brake capable of supporting 600 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 30 316 stainless steel wheel glass filled nylon high temperature casters. The finish provides durability under any condition, and the high temp glass filled nylon wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster performs consistently in temperature ratings of 425°F continuous usage to 475°F to 550°F intermittent usage. The glass filled nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances, will not flat spot, and under normal operating conditions are maintenance free. Resistant to most chemical and oils, these glass filled nylon wheels will keep you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 600 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1100 lbs. Capacity/Caster, and 8": 1200 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB), total lock brake (TTL), or bolt-on swivel lock (BSL). The TLB locks only the wheel by applying force to the tread. The TTL locks both the wheel and swivel for a stationary position. The BSL, when inserted into one of four notches on the swivel raceway, converts a swivel caster into a rigid caster for straight-line movement at 90-degree angles.
