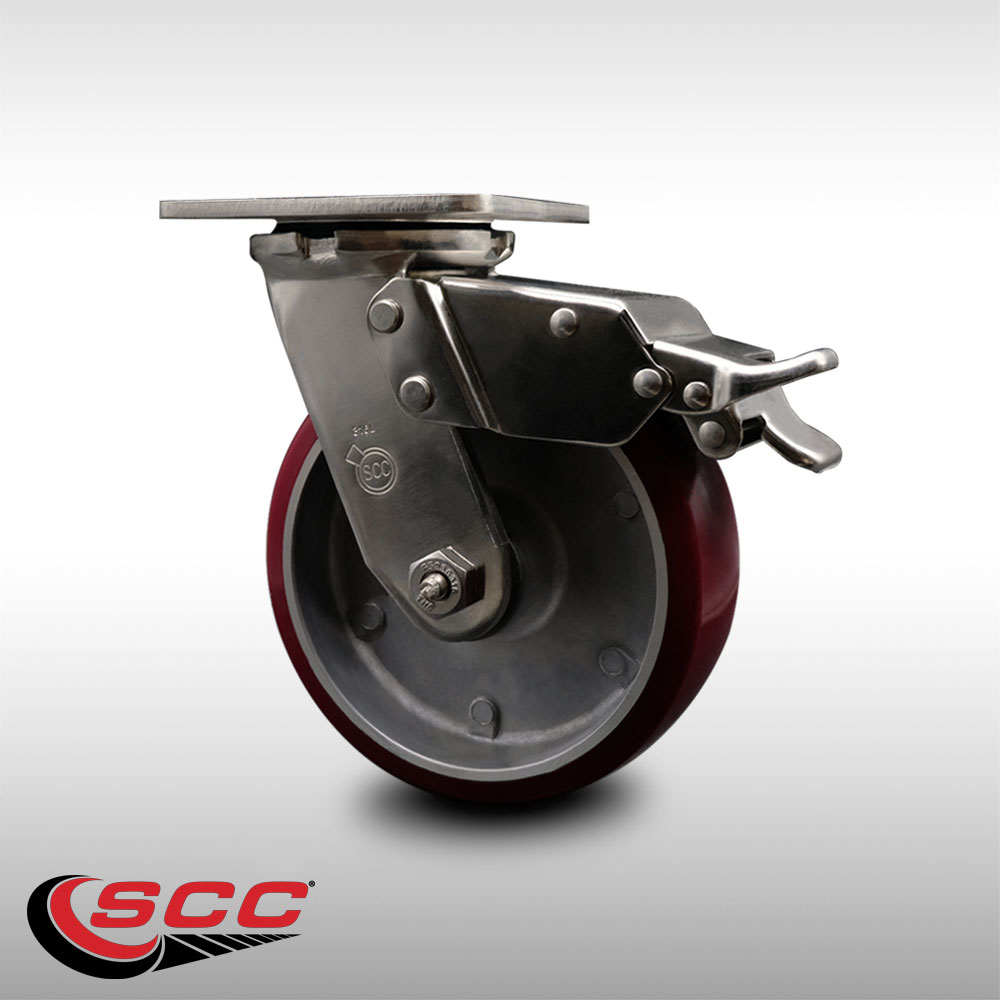

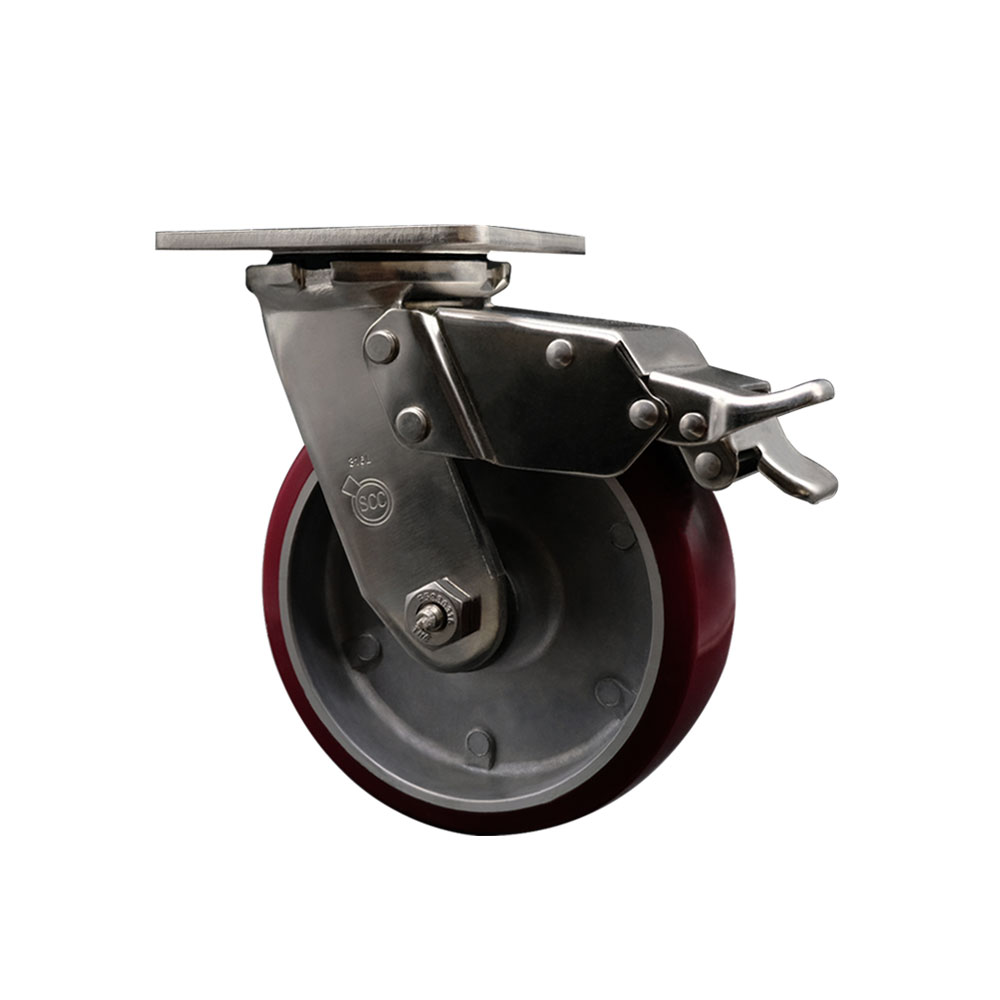

316 Stainless Steel Heavy Duty Swivel Top Plate Caster with Total Lock Brake and 6 Inch Polyurethane on Aluminum Wheel with Delrin Bearings - 1,200 lbs. Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-SS316TTL30S620-PAD

Condition

new

Quantity

1

UPC

734005504620

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

1200

Color

Swivel - Total Lock Brake - Maroon

Durometer

95A

Heat Capacity

-45 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Locking Type

Total Lock Brake

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

316 Polished Stainless Steel

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

6" Wheel

Stain Resistant

Yes

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster w/total lock brake

Wheel Bearing

Delrin Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Aluminum Core

Wheel Size

6" x 2"

Wheel Type

Polyurethane Tread on Aluminum Core

Description

Listing is for one (1) Service Caster Series #30 316 stainless steel swivel caster with a 6" diameter by 2" wide polyurethane on aluminum wheel and delrin wheel bearings and a total lock brake capable of supporting 1,200 lbs./caster. When searching for a reliable and durable solution to your caster needs, rely on Service Caster Series 30 316 stainless steel polyurethane aluminum casters. The Series #30 features heavy duty polyurethane wheels that are chemically bonded to an aluminum core, providing a smooth roll over uneven surfaces without marking or marring floors. Finely crafted with a heat-treated ball bearing raceway, these versatile casters are ideal for a wide range of applications. Use on dollies, platform trucks, warehouse carts and freight terminals, or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 Polyurethane on Aluminum casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 700 lbs Capacity/Caster, 5": 900 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB), total lock brake (TTL), or bolt-on swivel lock (BSL). The TLB locks only the wheel by applying force to the tread. The TTL locks both the wheel and swivel for a stationary position. The BSL, when inserted into one of four notches on the swivel raceway, converts a swivel caster into a rigid caster for straight-line movement at 90-degree angles.
