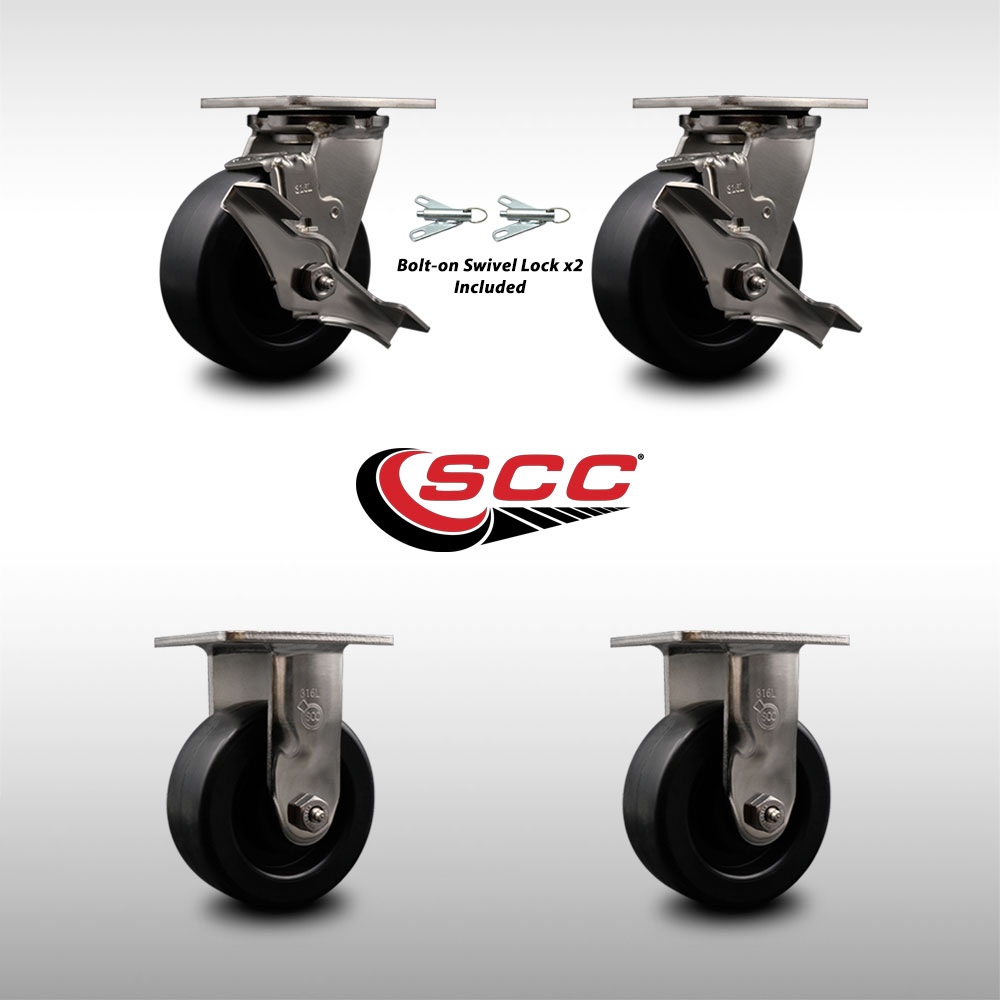

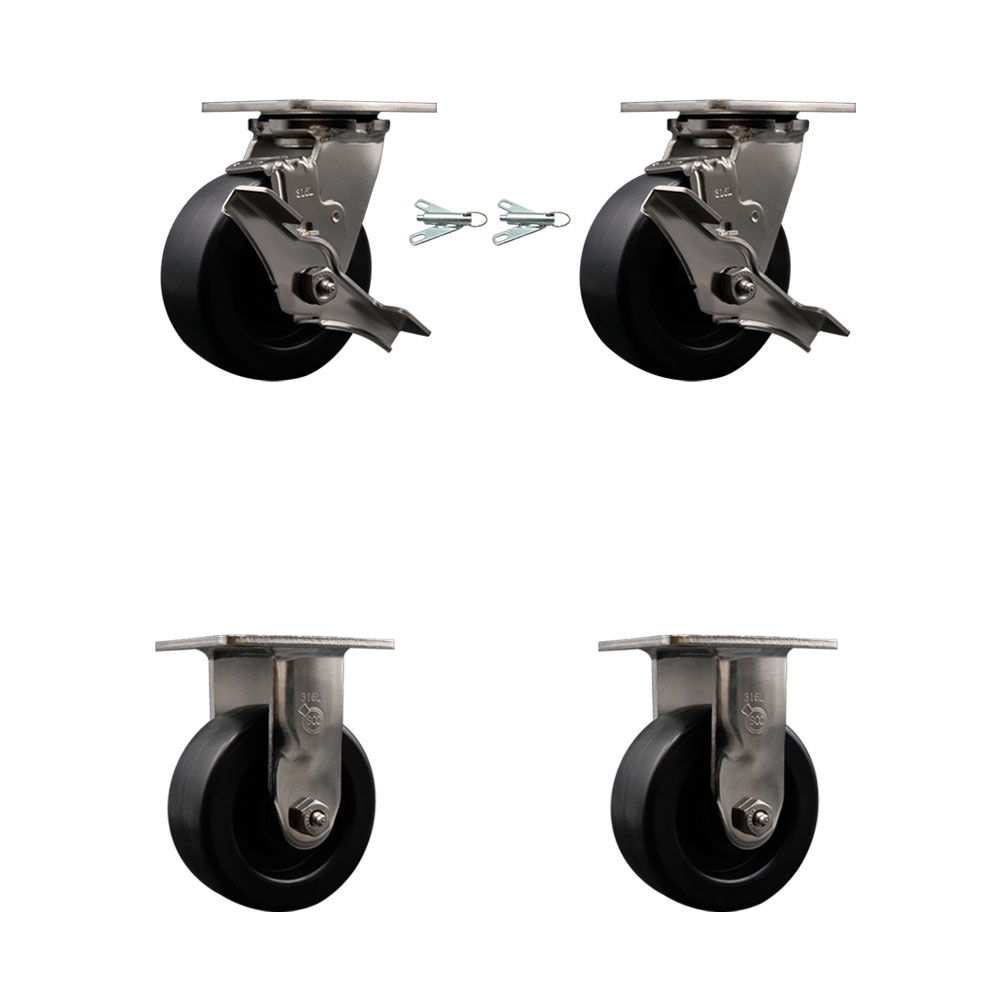

316 Stainless Steel Heavy Duty Swivel Caster Set with 5 Inch Polyolefin Wheels and Ball Bearings - Includes 2 Swivel with Brakes and Bolt on Swivel Locks and 2 Rigid - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-SS31630S520-POB-TLB-BSL-2-R-2

Condition

new

Quantity

4

UPC

734005506273

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

20 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

2600

Color

2 Swivel w/2 Brakes & 2 Swivel Locks - 2 Rigid

Durometer

70D

Heat Capacity

-20 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

6-1/2"

Locking Type

2 Top Lock Brakes & 2 Bolt on Swivel Locks

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/2"

Mounting Type

Top Plate

Plating/Coating

316 Polished Stainless Steel

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Stain Resistant

Yes

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) Swivel caster w/top lock brake & bolt on swivel lock & (2) rigid casters

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyolefin

Wheel Size

5" x 2"

Wheel Type

Polyolefin

Description

Listing is for a set of four (4) Service Caster Series #30 316 stainless steel casters, two (2) swivel casters with top lock brakes & bolt on swivel locks and two (2) rigid casters, with 5" diameter by 2" wide polyolefin wheel and maintenance free precision ball wheel bearings capable of supporting a total weight of 2,600 lbs. (650 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 30 316 stainless steel polyolefin wheel casters. The Service Caster Series #30 features light weight polyolefin wheels that are resistant to shock, chemicals and abrasion, and finely crafted with a heat-treated ball bearing raceway. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 Polyolefin casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 500 lbs Capacity/Caster, 5": 650 lbs Capacity/Caster, 6": 700 lbs. Capacity/Caster, and 8": 900 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB), total lock brake (TTL), or bolt-on swivel lock (BSL). The TLB locks only the wheel by applying force to the tread. The TTL locks both the wheel and swivel for a stationary position. The BSL, when inserted into one of four notches on the swivel raceway, converts a swivel caster into a rigid caster for straight-line movement at 90-degree angles.
