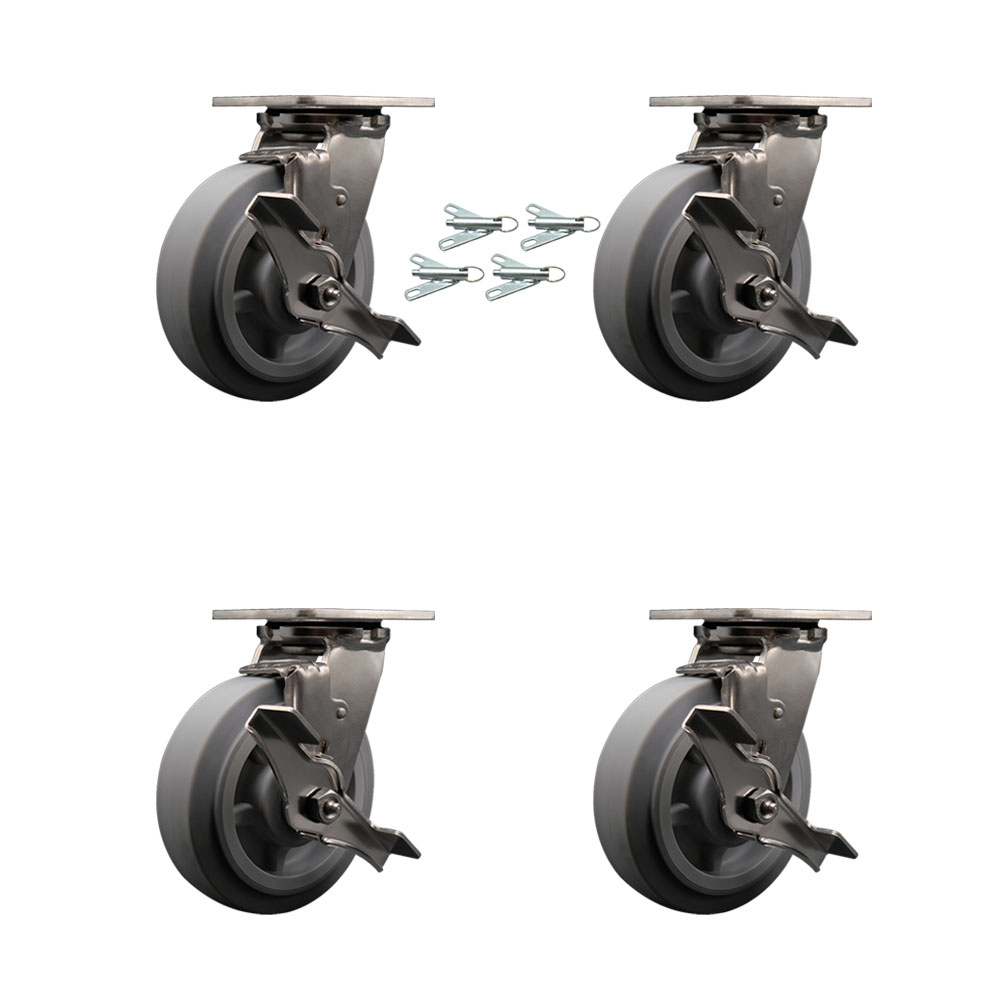

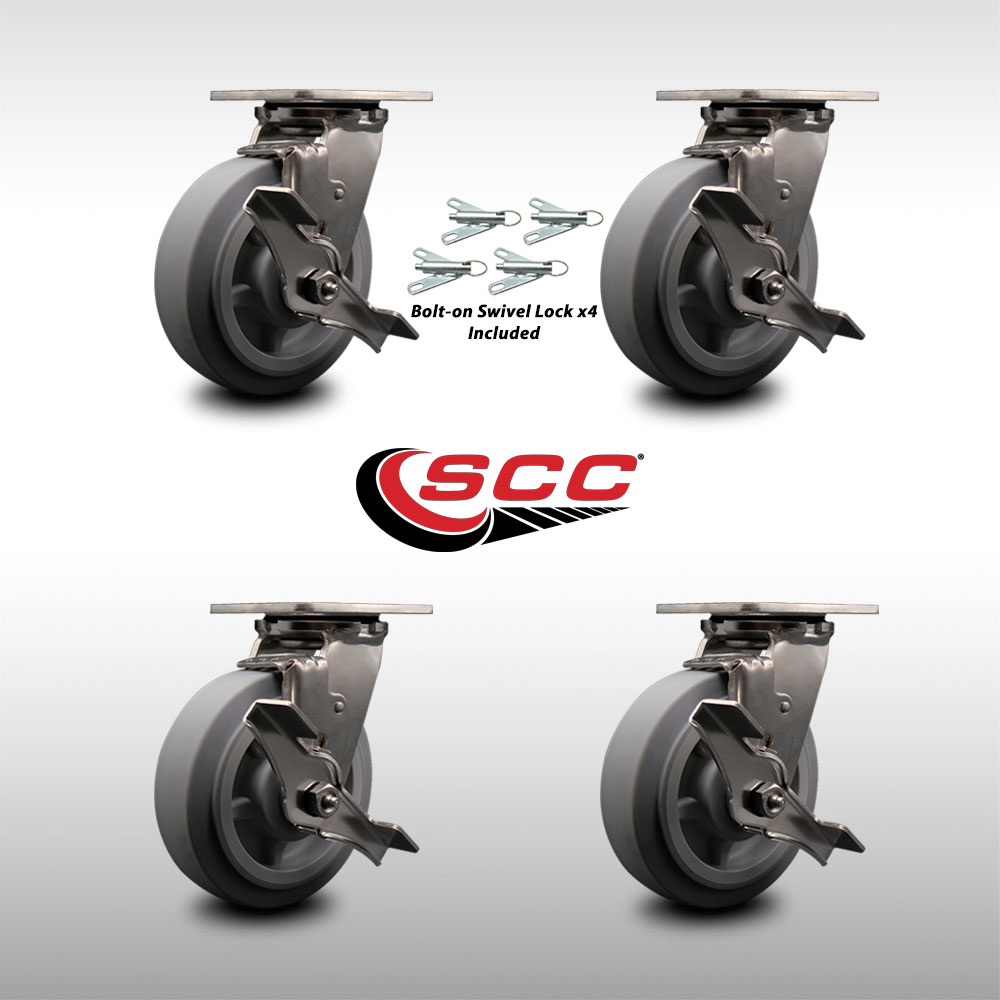

316 Stainless Steel Heavy Duty Swivel Caster Set of 4 with 6 Inch Thermoplastic Rubber Flat Tread Wheels and Ball Bearings - Includes 4 Swivel w/Brakes and Bolt on Swivel Locks - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-SS31630S620-TPRBF-TLB-BSL-4

Condition

new

Quantity

4

UPC

734005517866

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

25 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

2000

Color

4 Swivel - Brakes & Bolt on Swivel Locks - Gray

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Locking Type

4 Top Lock Brakes & Bolt on Swivel Locks

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

316 Polished Stainless Steel

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

6" Wheel

Stain Resistant

Yes

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(4) Swivel caster w/top lock brake & bolt on swivel lock

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Tread on Polyolefin Core

Wheel Size

6" x 2"

Wheel Type

Thermoplastic Rubber Tread on Polyolefin Core

Description

Listing is for a set of four (4) Service Caster Series #30 316 stainless steel swivel casters with 6" diameter by 2" wide thermoplastic rubber flat tread wheel and maintenance free precision ball wheel bearings with top lock brakes and bolt on swivel locks capable of supporting a total weight of 2,000 lbs. (500 lbs. per caster). When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 316 stainless steel thermoplastic rubber flat tread on polyolefin core casters. The soft flat tread is made of thermoplastic rubber that is non-marking and non-marring, and on the polyolefin core provides a long lasting, high capacity wheel that is capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 Thermoplastic Rubber Flat Tread on Polyolefin Core casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 300 lbs Capacity/Caster, 5": 350 lbs Capacity/Caster, 6": 500 lbs. Capacity/Caster, and 8": 600 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB), total lock brake (TTL), or bolt-on swivel lock (BSL). The TLB locks only the wheel by applying force to the tread. The TTL locks both the wheel and swivel for a stationary position. The BSL, when inserted into one of four notches on the swivel raceway, converts a swivel caster into a rigid caster for straight-line movement at 90-degree angles.
