316 Stainless Steel Heavy Duty Swivel Caster Set of 4 with 4 Inch Nylon Wheels and Delrin Bearings - Includes 4 Swivel with Top Lock Brakes and Bolt on Swivel Locks - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-SS31630S420-NYD-TLB-BSL-4

Condition

new

Quantity

4

UPC

734005501582

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

22 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

3200

Color

4 Swivel - Brakes & Bolt on Swivel Locks - White

Durometer

75D

Heat Capacity

-40 degrees F to 210 degrees F

Item Weight Unit of Measure

pounds

Load Height

5-5/8"

Locking Type

4 Top Lock Brakes & Bolt on Swivel Locks

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

210

Maximum Temperature UofM

F

Mounting Height

5-5/8"

Mounting Type

Top Plate

Plating/Coating

316 Polished Stainless Steel

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Stain Resistant

Yes

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(4) Swivel caster w/top lock brake & bolt on swivel lock

Wheel Bearing

Delrin Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Nylon

Wheel Size

4" x 2"

Wheel Type

Nylon

Description

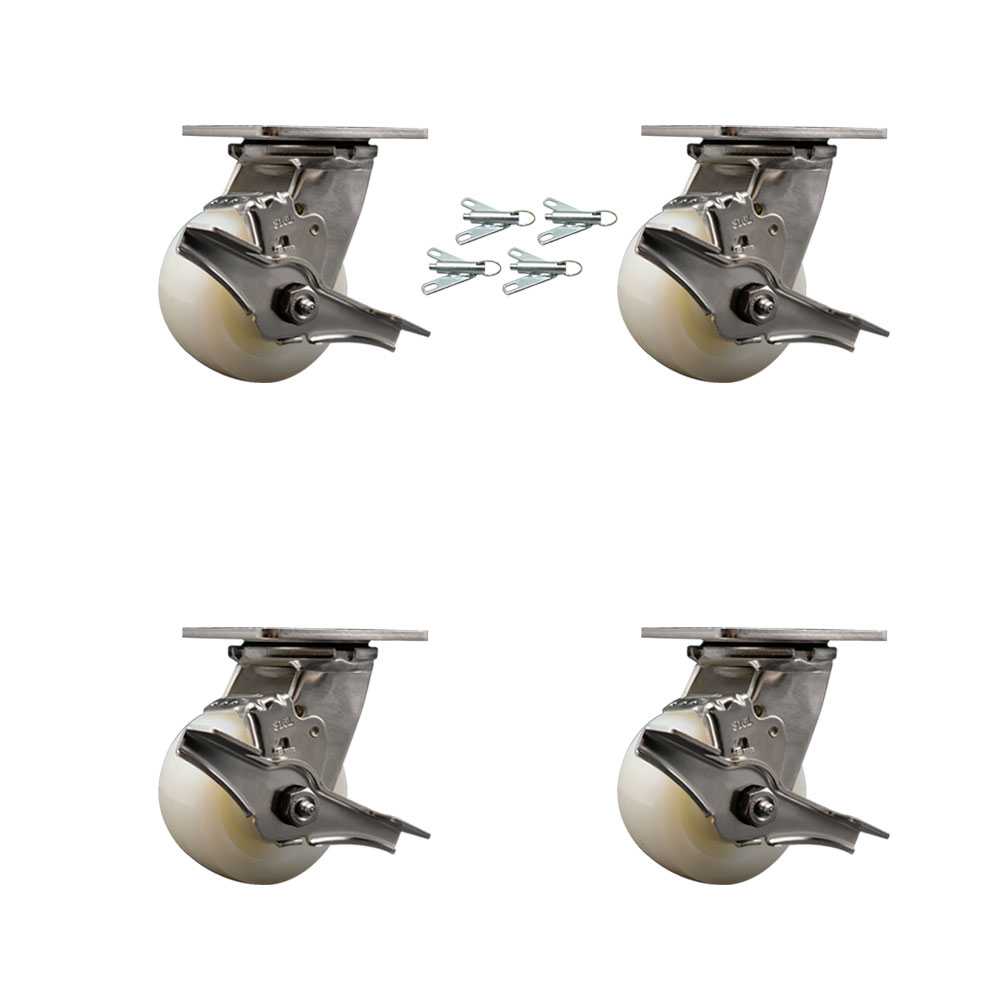

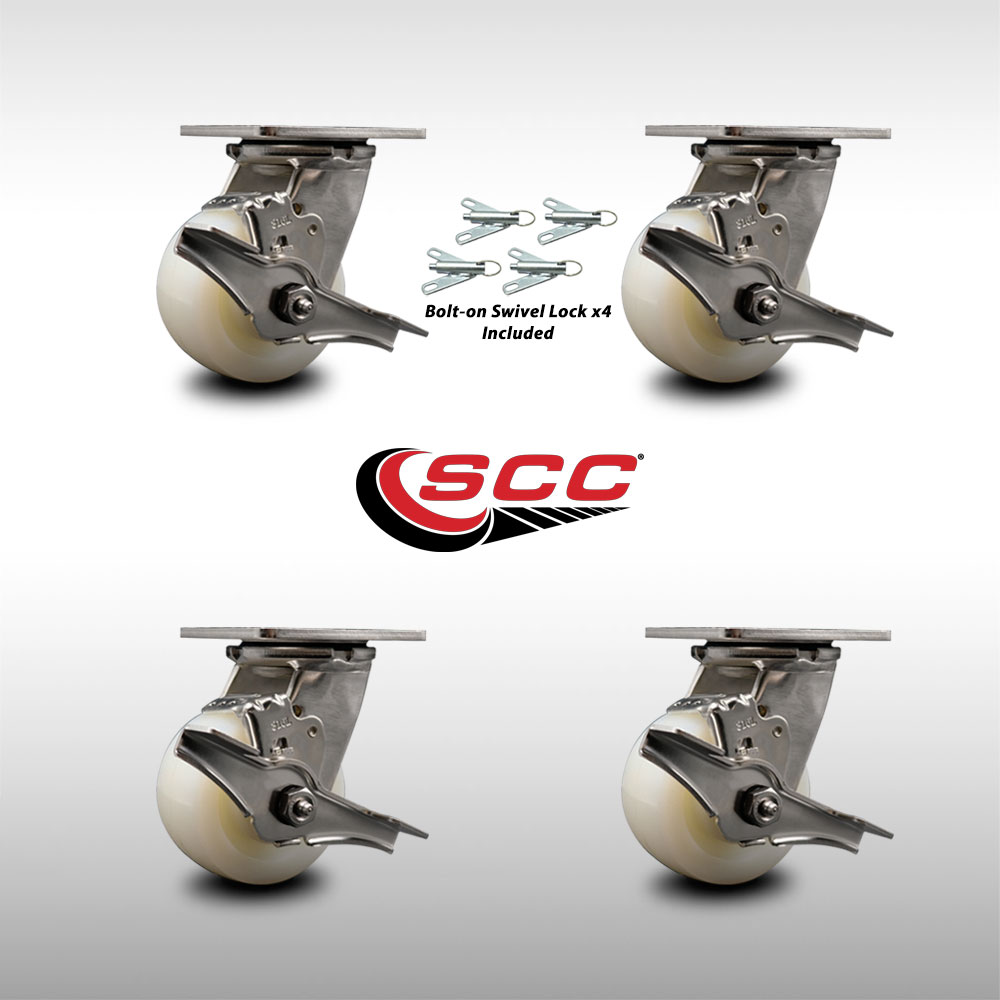

Listing is for a set of four (4) Service Caster Series #30 316 stainless steel swivel casters with 4" diameter by 2" wide nylon wheel and delrin wheel bearings with top lock brakes and bolt on swivel locks capable of supporting a total weight of 3,200 lbs. (800 lbs. per caster). When searching for a reliable and durable heavy duty solution to your caster needs, consider Service Caster’s Series 30 316 stainless steel nylon wheel casters. The Service Caster Series #30 is ideal for medium and heavy duty material handling, carts, equipment, and shop projects. The nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances and under normal operating conditions are maintenance free. Resistant to most chemical and oils, these nylon wheels will keep you safely moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 Nylon casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 800 lbs Capacity/Caster, 5": 900 lbs Capacity/Caster, 6": 1250 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB), total lock brake (TTL), or bolt-on swivel lock (BSL). The TLB locks only the wheel by applying force to the tread. The TTL locks both the wheel and swivel for a stationary position. The BSL, when inserted into one of four notches on the swivel raceway, converts a swivel caster into a rigid caster for straight-line movement at 90-degree angles.
