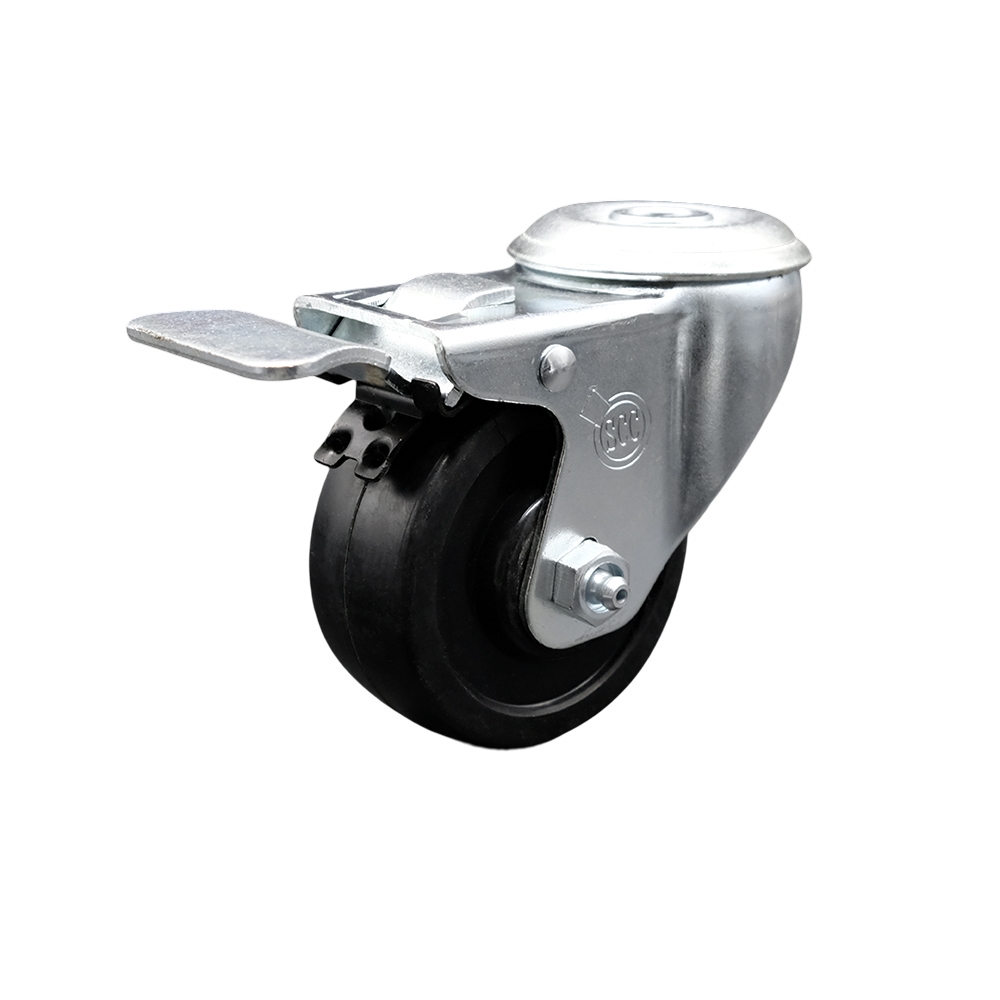

3" Swivel Caster with 1/2" Bolt Hole, Soft Rubber Wheel and Total Lock Brake - 175 lbs Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-BHTTL20S314-SRS

Condition

new

Quantity

1

UPC

670533924304

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

1.3 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

175

Color

Swivel - Total Lock Brake - Black

Durometer

70-80 Shore A

Feature

Total lock brake

Heat Capacity

-40 degrees F to 160 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

4-1/8"

Locking Type

Total lock brake

Lower Temperature

-40

Lower Temperature UofM

F

Material Type

Soft Rubber

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

4-1/8"

Mounting Type

Bolt Hole

Plating/Coating

Bright Zinc Plated Finish

Locking Castersor Wheels

Yes

Swivels

Yes

Size

3" Wheel

Tread Width

1.25

Tread Width UofM

inches

Type

swivel caster w/ total lock brake

Wheel Bearing

Plain Bore

Wheel Diameter

3

Wheel Diameter UofM

inches

Wheel Material

Soft Rubber

Wheel Size

3" x 1-1/4"

Wheel Type

Soft Rubber

Description

Listing is for one (1) Service Caster Series #20 swivel caster with a 3" diameter by 1-1/4" wide soft rubber wheel and a bolt hole with total lock brake capable of supporting 175 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 soft rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition. The soft rubber wheels- resistant to most chemicals and oils- combine a soft tread on a hard rubber core, offering quiet movement and a cushioned ride. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Soft Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 3": 175 lbs, 3.5" & 4": 200 lbs, and 5": 275 lbs Capacity/Caster • All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement. • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
