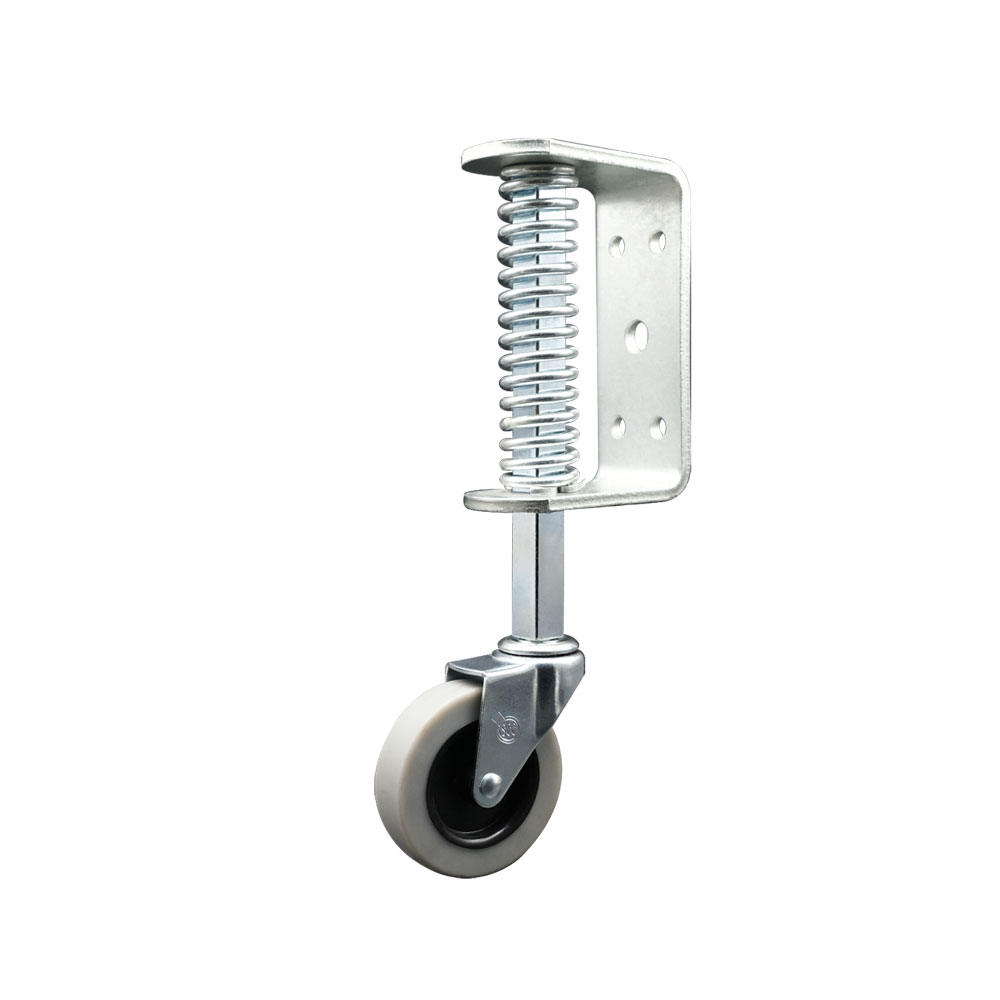

3 Inch Swivel Gate and Ladder Caster – Non-Marking Thermoplastic Rubber Wheel – 110 lbs. Capacity Per Caster – 100 lbs. Compression Spring – Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- SKU
- SCC-GCHD05S310-TPRS
- Condition
- new
- Quantity
- 1
- UPC
- 734005120264
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 12 x 12 x 12 in
- Shipping weight
- 5 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Size
- 5/16" (hardware not included)
- Capacity
- 110
- Color
- Swivel - Heavy Duty Bracket - Gray
- Durometer
- 75A
- Heat Capacity
- -20 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Lower Temperature
- -20
- Lower Temperature UofM
- F
- Material Type
- Thermoplastic Rubber
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Type
- Side Mount Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- plate
- Locking Castersor Wheels
- No
- Swivels
- Yes
- Size
- 3" Wheel
- Top Plate Size
- 2" x 5-1/8"
- Type
- Swivel Caster
- Wheel Bearing
- Plain Bore
- Wheel Diameter
- 3
- Wheel Diameter UofM
- inches
- Wheel Material
- Thermoplastic Rubber Tread on Polyolefin Core
- Wheel Size
- 3" x 13/16"
- Wheel Type
- Thermoplastic Rubber
Description
Listing is for one (1) Service Caster swivel gate caster with a 3" diameter thermoplastic rubber wheel capable of supporting 110 lbs./caster and a 100 lbs. compression gate spring. Features a 2” x 5-1/8” overall plate size with four 5/16” mounting holes and a 1-1/4” to 3” bolt hole pattern. When searching for a durable caster for your gate, consider Service Caster's Spring Loaded Gate casters featuring a 3" thermoplastic rubber wheel and ball bearing swivel. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Spring Loaded Swivel Caster for Gates and Ladders • 100 lbs. Compression Gate Spring • Plate Size: 2" x 5-1/8" • Bolt Hole Pattern: 1-1/4" to 3"
