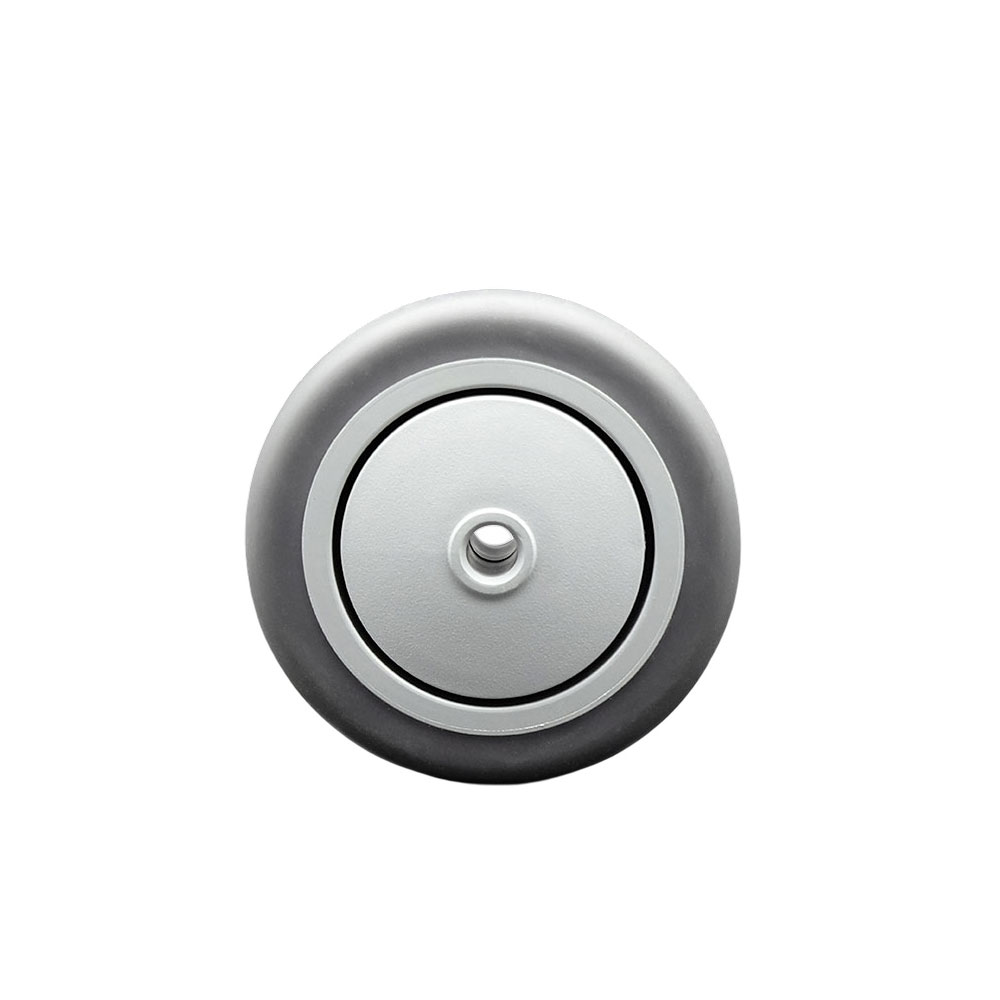

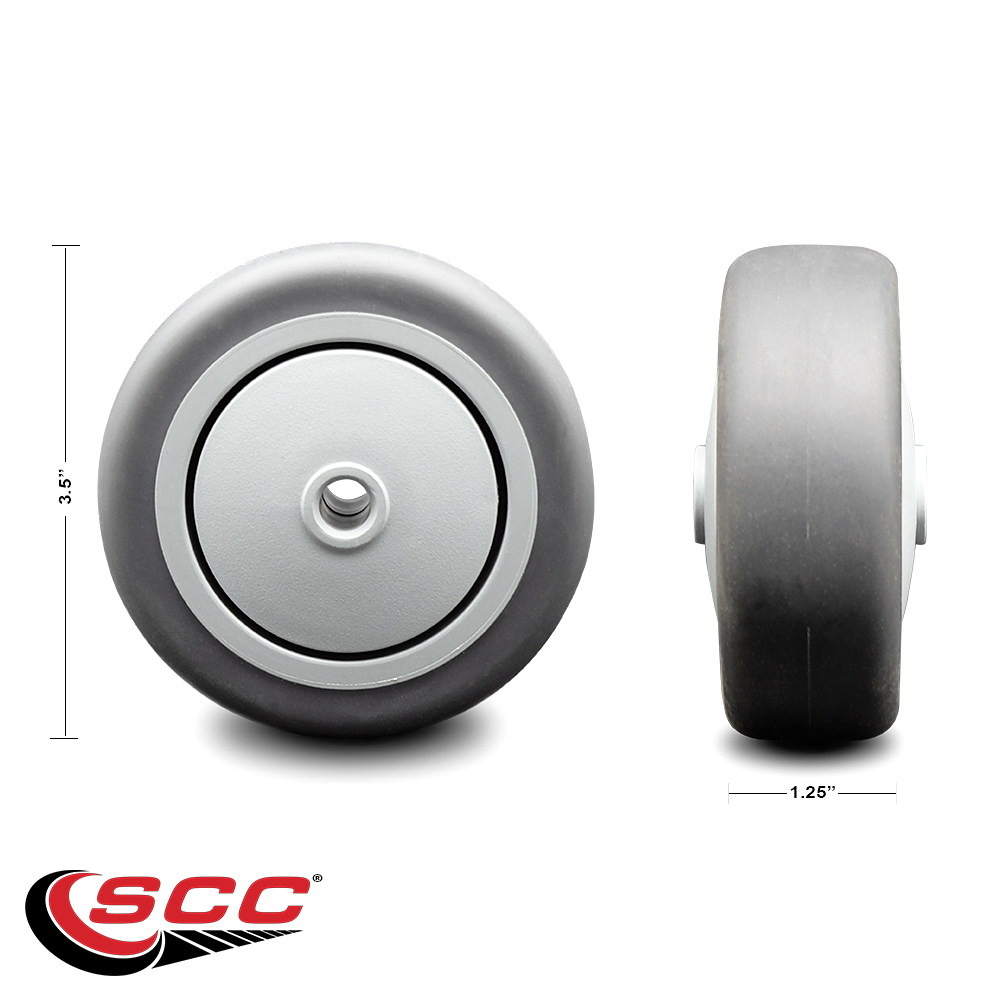

3.5" x 1.25" Gray Thermoplastic Rubber Wheel Only with Precision Ball Bearing - 3/8" Bore - Non Marking/Non Marring - 230 lbs Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

SKU

SCC-TPRB3514

Condition

new

Quantity

1

UPC

670533889412

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

2 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Size

0.375

Capacity

210

Color

3.5" Wheel - Gray

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Plating/Coating

Thermoplastic Rubber

Size

Thermoplastic Rubber

Tread Width

1.25

Tread Width UofM

inches

Type

Thermoplastic Rubber Tread on Polyolefin Wheel Core Wheel

Wheel Bearing

Ball Bearing

Wheel Diameter

3.5

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Tread on Polyolefin Core

Wheel Size

3-1/2" x 1-1/4"

Wheel Type

Thermoplastic Rubber Tread on Polyolefin Core

Description

Listing is for one (1) Service Caster 3.5" diameter by 1.25" tread width gray thermoplastic rubber wheel with precision ball bearing and a 3/8" bore. Supports 170 pounds (lbs) per wheel.When searching for a reliable and durable solution for a quiet and smooth rolling wheel that is suitable for a variety of different clean environments, consider Service Caster’s Thermoplastic Rubber on Polyolefin core caster wheel. With a ball bearing with 3/8" bore for axle, thermoplastic tread mechanically bonded to polyolefin core. Thermoplastic rubber is highly resistant to oil, grease, water, and most solvents. Hardness scale 70 +/- 5 Shore (A) Durometer. An excellent choice for clean environments. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Service Caster’s Thermoplastic Rubber tread on Polyolefin core wheels come in five sizes – 3” x 1.25", 3.5” x 1.25", 4” x 1.25", 5” x 1.25", and 6” x 1.25". • Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5" & 6": 300 lbs Capacity/Caster • All wheels have a 3/8” axle bore and a precision ball bearing that is protected by two Polyolefin thread guards. In addition, all wheels have a 1-9/16” hub length. The hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing. • Thermoplastic Rubber is a non-marking and non-marring material. With a precision ball bearing, Service Caster’s Thermoplastic Rubber tread on Polyolefin core wheels offer a quiet and smooth rolling wheel that is suitable for a variety of different clean environments. Finally, our wheels are highly resistant to oil, grease, water, and most solvents. With so many great features, Service Caster’s Thermoplastic Rubber tread on Polyolefin core wheels will keep Moving You Forward.
