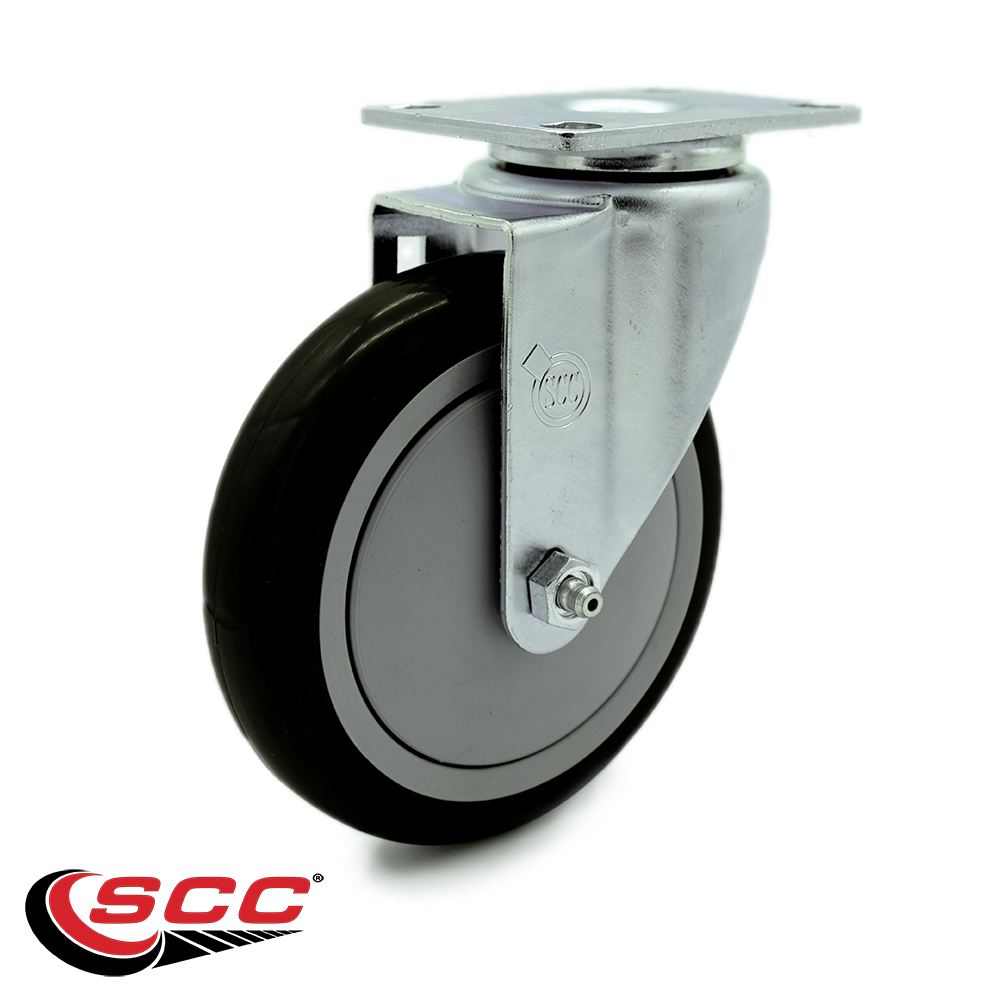

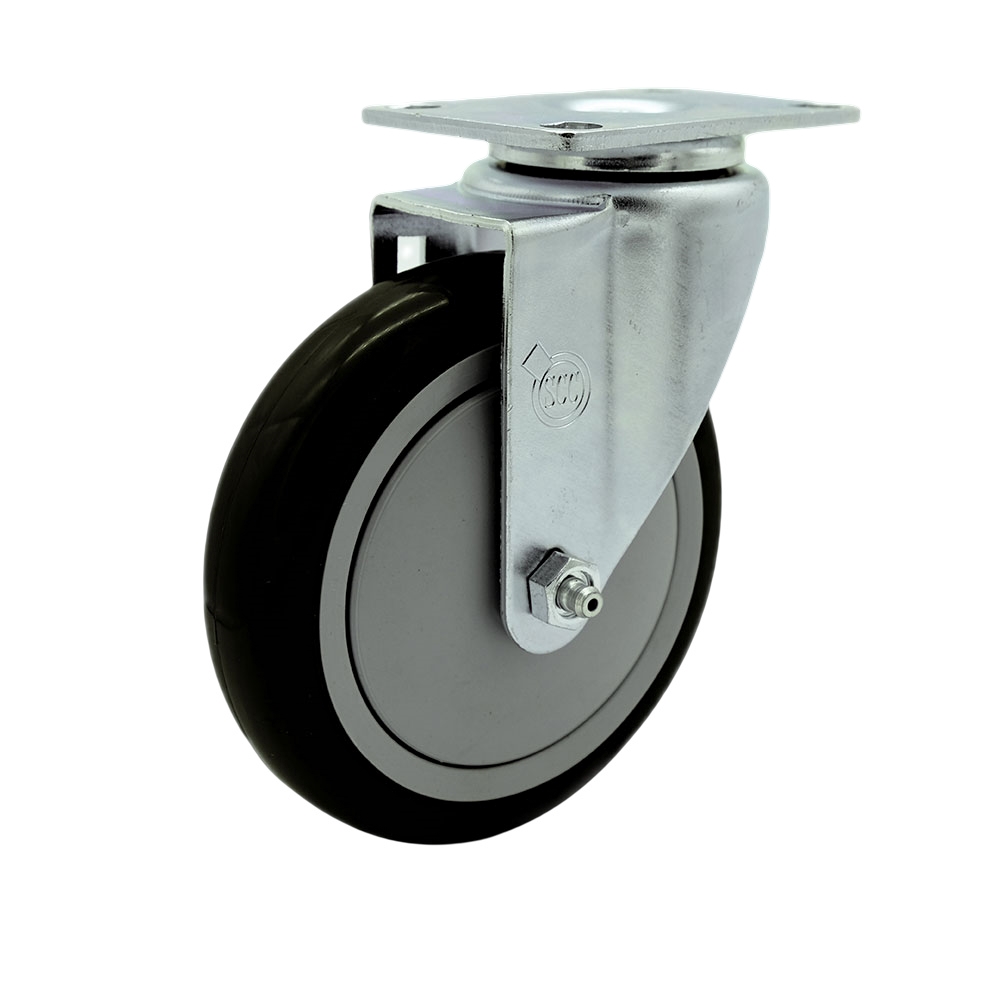

240CPS45U Channel 5 Inch Swivel Caster – Fits Select Channel Equipment - Light Duty Replacement – Black Polyurethane Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

CHA-SCC-20S514-PPUB-BLK-TP2

Condition

new

Quantity

1

UPC

734005218770

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

6 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

350

Color

Swivel - No Brake - Top Plate

Durometer

60D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

5" Black Polyurethane Wheel

Top Plate

3-1/8" x 4-1/8"

Top Plate Size

3-1/8" x 4-1/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(1) swivel caster

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

5" x 1-1/4"

Wheel Type

Polyurethane Tread on Polyolefin Core

Description

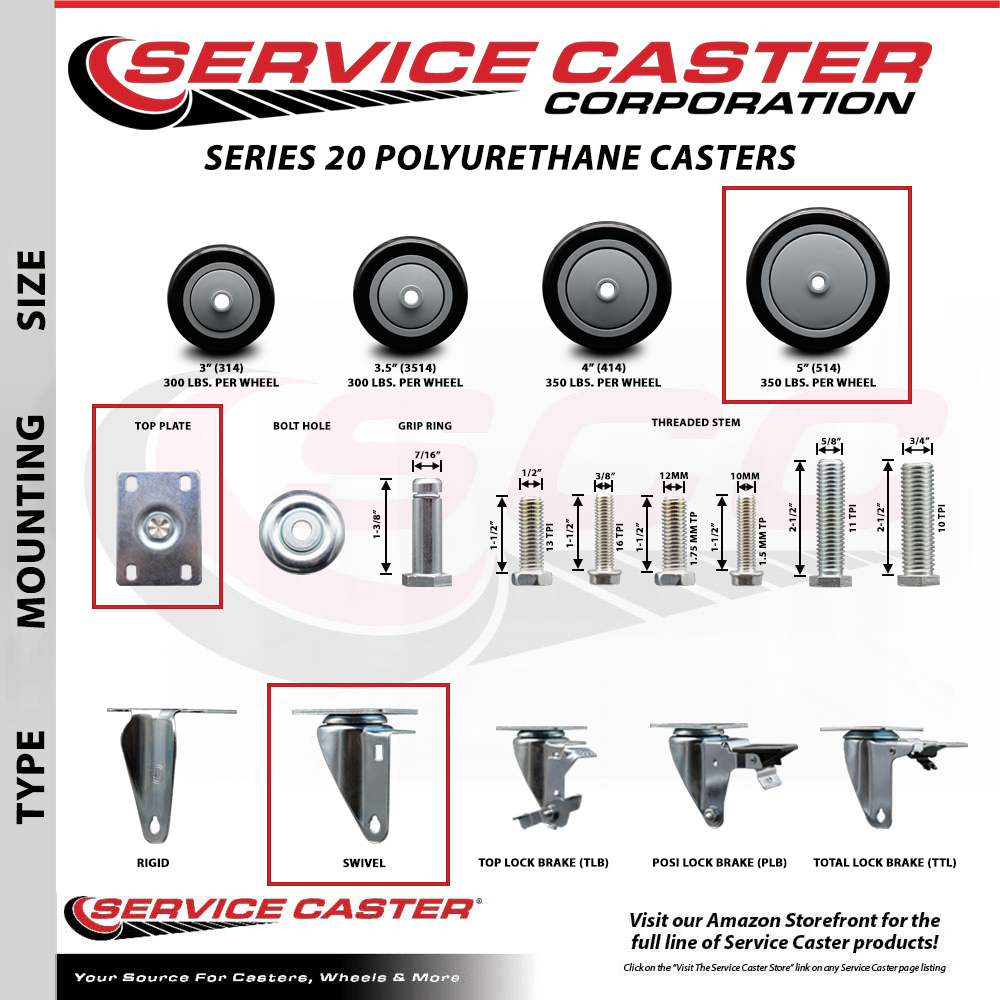

Listing is for one (1) Service Caster Series #20 swivel caster with a 5" diameter by 1-1/4" wide black polyurethane wheel capable of supporting 350 lbs. per caster. 240CPS45U replacement part fits select Channel equipment. When searching for a reliable and durable solution to your Channel replacement caster needs, consider Service Caster Series 20 top plate polyurethane tread on polyolefin core wheel casters. The Service Caster Series #20 features polyurethane tread on polyolefin core wheels that offer a softer tread for smoother travel while also resisting damage from debris. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Channel replacement casters balance high pay loads with smooth and quiet operation. These versatile casters are ideal for a wide range of applications, but are commonly used on select Channel equipment. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Select Channel Equipment • Compatible with Select Channel Equipment • Weight Capacity: 350 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
