190VCAST690 Assure Parts 6 Inch Swivel Caster Set-Fits Vulcan Model VC44EC-208/1-Heavy Duty Replacement-Polyolefin Wheel-Includes 2 Swivel Casters with Brakes&2 Rigid Casters-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

ASS-SCC-30CS620-PHR-TLB-2-R-2

Condition

new

Quantity

4

UPC

734005218312

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 12 in

Shipping weight

27 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

2-5/8" x 3-5/8" to 3" x 3"

Bolt Size

3/8" (hardware not included)

Capacity

4800

Color

2 Swivel w/2 Top Lock Brakes - 2 Rigid

Durometer

90D

Heat Capacity

-45 degrees F to 250 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Locking Type

(2) Top lock brakes

Lower Temperature

-45

Lower Temperature UofM

F

Material Type

Phenolic

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

6" Phenolic Wheel

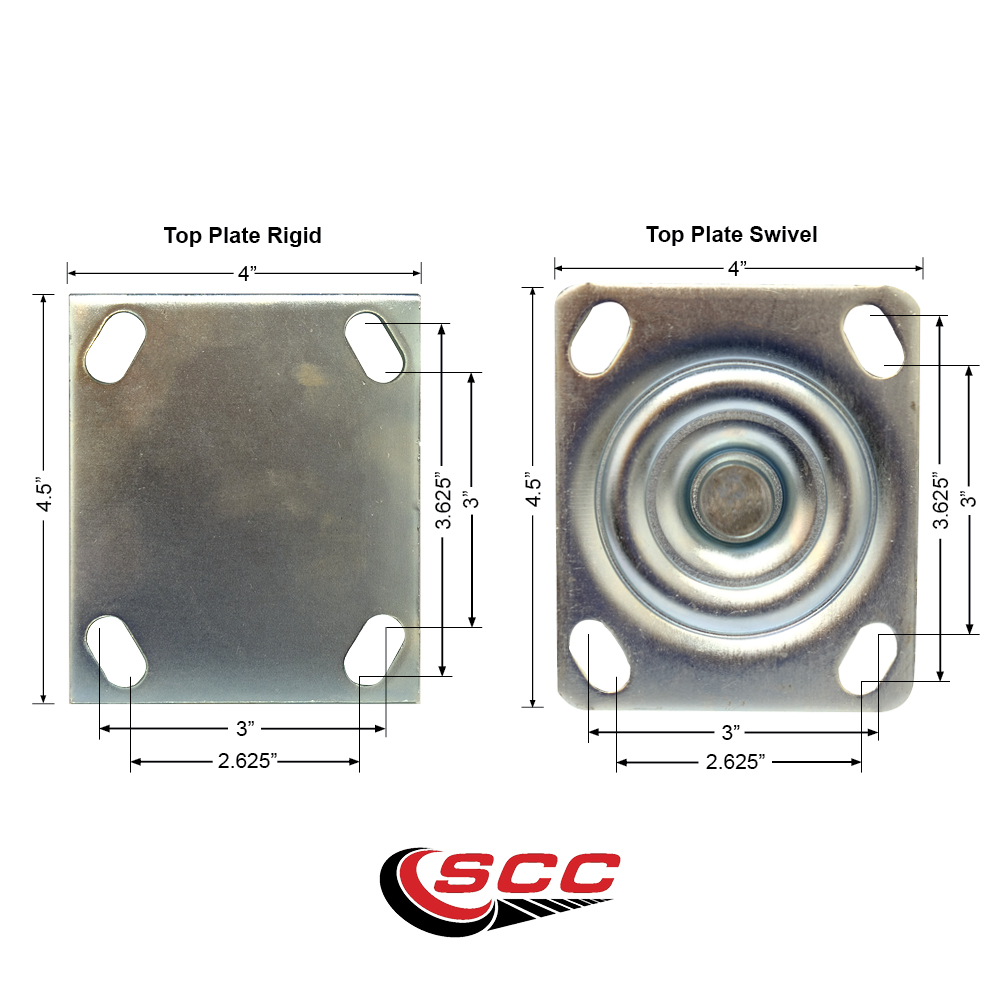

Top Plate

4" x 4-1/2"

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) swivel casters w/top lock brakes & (2) rigid casters

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Phenolic

Wheel Size

6" x 2"

Wheel Type

Phenolic

Description

When searching for a reliable and durable solution to your Vulcan replacement caster needs, consider Service Caster’s Series 20 phenolic casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. These versatile casters are ideal for a wide range of applications, but are commonly used on Vulcan VC55 and VC44 double deck convection ovens. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. NoFlag • Fits Vulcan VC55 and VC44 Double Deck Convection Ovens • Compatible Models: VC44EC-208/1, VC44EC-208/3, VC44EC-240/1, VC44EC-240/3, VC44ED-208/1, VC44ED-208/3, VC44ED-240/1, VC44ED-240/3, VC44ED-480/3, VC44GC-LP, VC44GC-NAT, VC44GD-LP, VC44GD-NAT, VC55ED-208/1 and VC55ED-208/3 • Weight Capacity: 1200 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
