190738A Assure Parts 5 Inch Swivel Caster - Fits Winholt Models 110 CR-162M DRS-3660KD-WM INHPL-1836C NHPL-1825-UNC NHPL-1836-Light Duty Replacement-Gray Polyurethane Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

ASS-SCC-20S514-PPUB-TP2

Condition

new

Quantity

1

UPC

734005218206

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

6 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"

Bolt Size

5/16" (hardware not included)

Capacity

350

Color

Swivel - No Brake - Top Plate

Durometer

55D

Heat Capacity

-45 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Lower Temperature

-45

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

5" Gray Polyurethane Wheel

Top Plate

3-1/8" x 4-1/8"

Top Plate Size

3-1/8" x 4-1/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(1) swivel caster

Wheel Bearing

Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

5" x 1-1/4"

Wheel Type

Polyurethane Tread on Polyolefin Core

Description

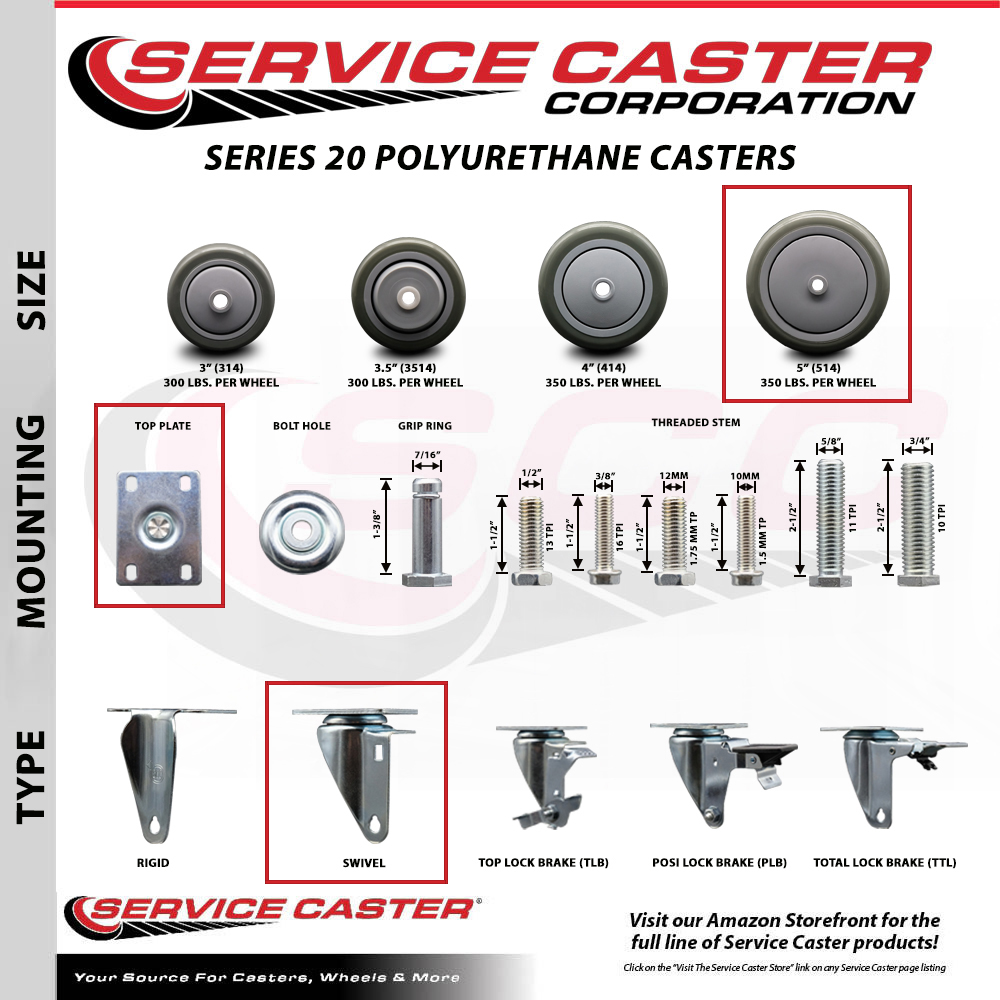

When searching for a reliable and durable solution to your Winholt replacement caster needs, consider Service Caster Series 20 top plate polyurethane tread on polyolefin core wheel casters. The Service Caster Series #20 features polyurethane tread on polyolefin core wheels that offer a softer tread for smoother travel while also resisting damage from debris. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Winholt replacement casters balance high pay loads with smooth and quiet operation. These versatile casters are ideal for a wide range of applications, but are commonly used on Winholt holding/proofing cabinets, CR162M can rack and large design x-frame carts. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. NoFlag • Fits Winholt Holding/Proofing Cabinets, CR162M Can Rack and Large Design X-Frame Carts • Compatible Models: 962EPC40, 110, CR-162M, DRS-3660KD-WM, INHPL-1836C, NHPL-1825-UNC, NHPL-1836, WX-1000/KA, WX-1000/KAB and WX-1000KA-B-WM • Weight Capacity: 350 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
