178A3PCKIT5 Avantco 3 Inch Caster Set-Fits Avantco Models GF36-HC GF36-HC-S GF50-HC-Light Duty Replacement-Hard Rubber Wheel-Includes 3 Swivel Casters&2 Swivel Casters with Brakes-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

AVA-SCC-20S314-HRS-TP2-3-TLB-2

Condition

new

Quantity

5

UPC

734005218695

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

11 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"

Bolt Size

5/16" (hardware not included)

Capacity

1100

Color

5 Swivel w/2 Top Lock Brakes

Durometer

55D

Heat Capacity

-40 degrees F to 160 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

4-1/8"

Locking Type

Top lock brake

Lower Temperature

-40

Lower Temperature UofM

F

Material Type

Hard Rubber

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

4-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

3" Wheel

Top Plate

3-1/8" x 4-1/8"

Top Plate Size

3-1/8" x 4-1/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(3) swivel casters & (2) swivel casters w/top lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

3

Wheel Diameter UofM

inches

Wheel Material

Hard Rubber

Wheel Size

3" x 1-1/4"

Wheel Type

Hard Rubber

Description

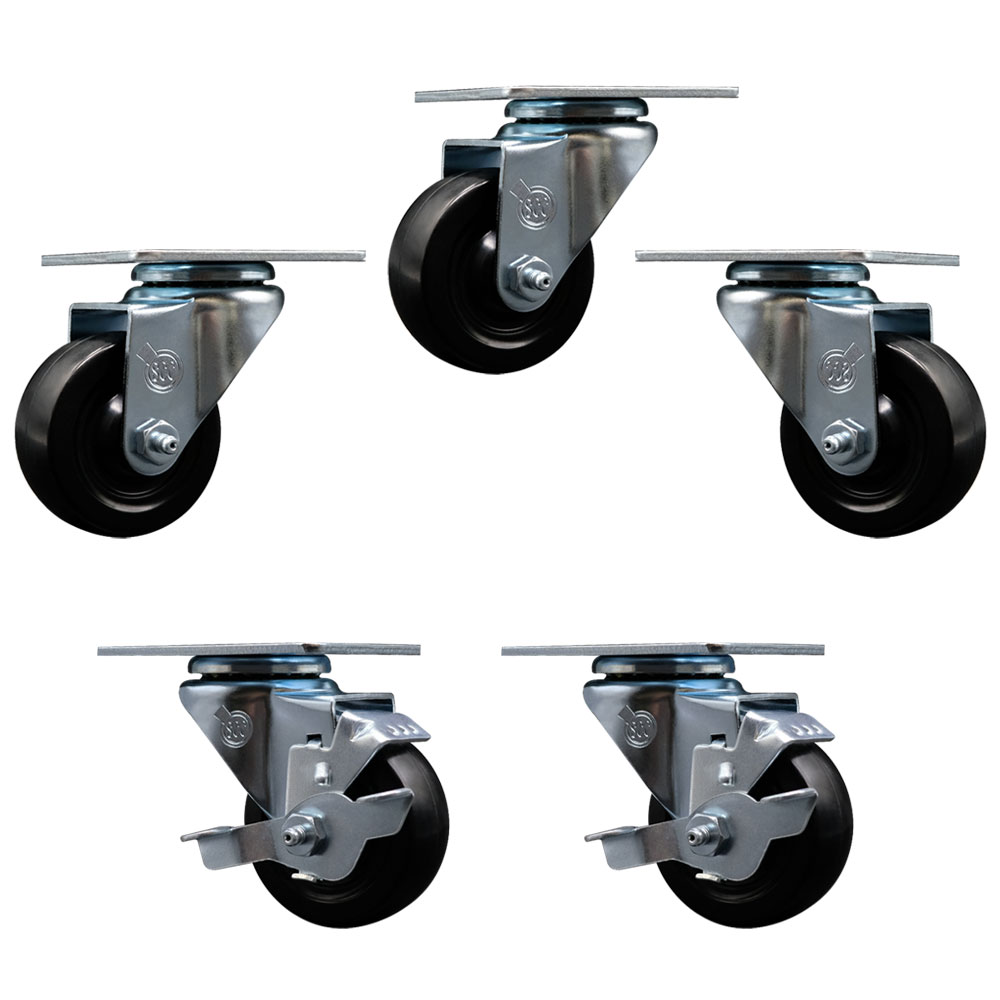

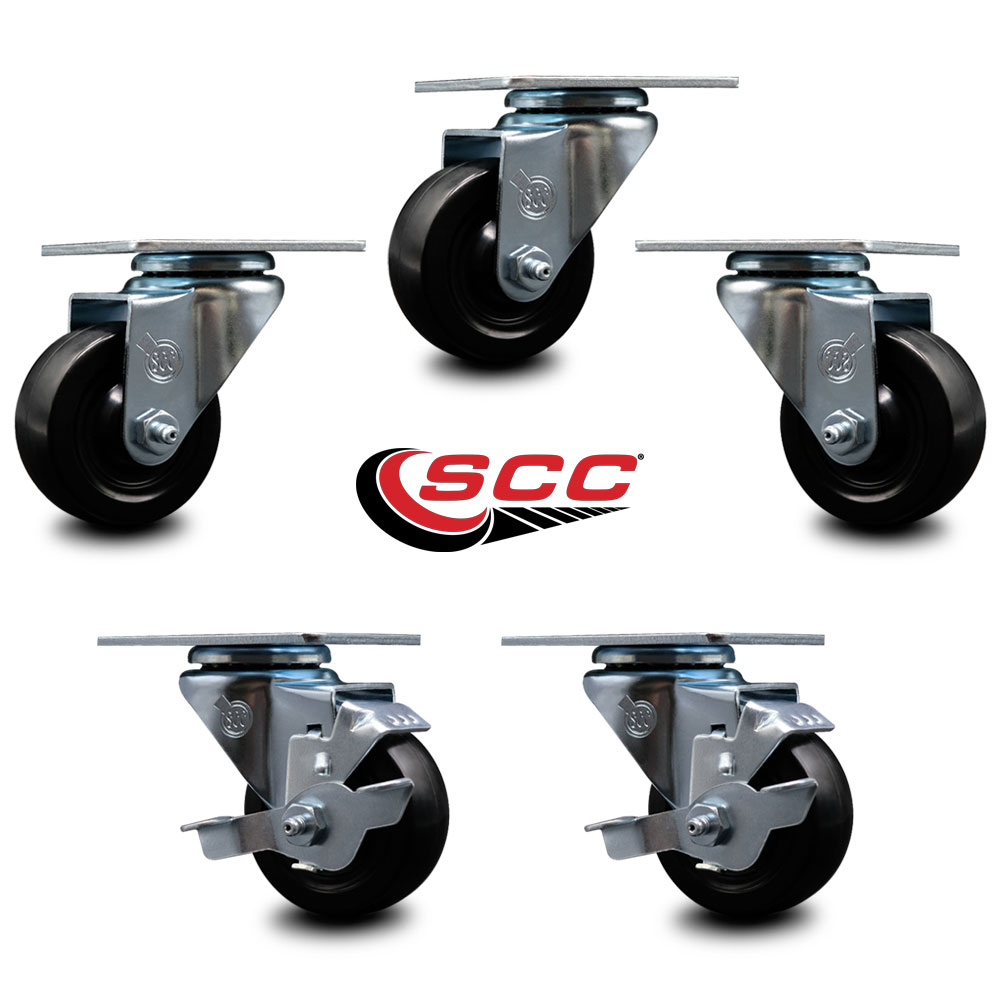

Listing is for five (5) Service Caster Series #20 swivel caster set with 2 top lock brakes and a 3" diameter by 1-1/4" wide hard rubber wheels capable of supporting 275 lbs. per caster. 178A3PCKIT5 replacement part fits select Avantco equipment. When searching for a reliable and durable solution to your Avantco replacement caster needs, consider Service Caster Series 20 top plate hard rubber wheel casters. The Service Caster Series #20 features hard rubber wheels that not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Avantco replacement casters offer hard rubber wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications, but are commonly used on select Avantco equipment. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Select Avantco Equipment • Compatible Models: GF36-HC, GF36-HC-S, GF50-HC, GF50-HC-S, HBB-36-HC, HBB-36-HC-S, HBB-50-HC and HBB-50-HC-S • Weight Capacity: 275 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
