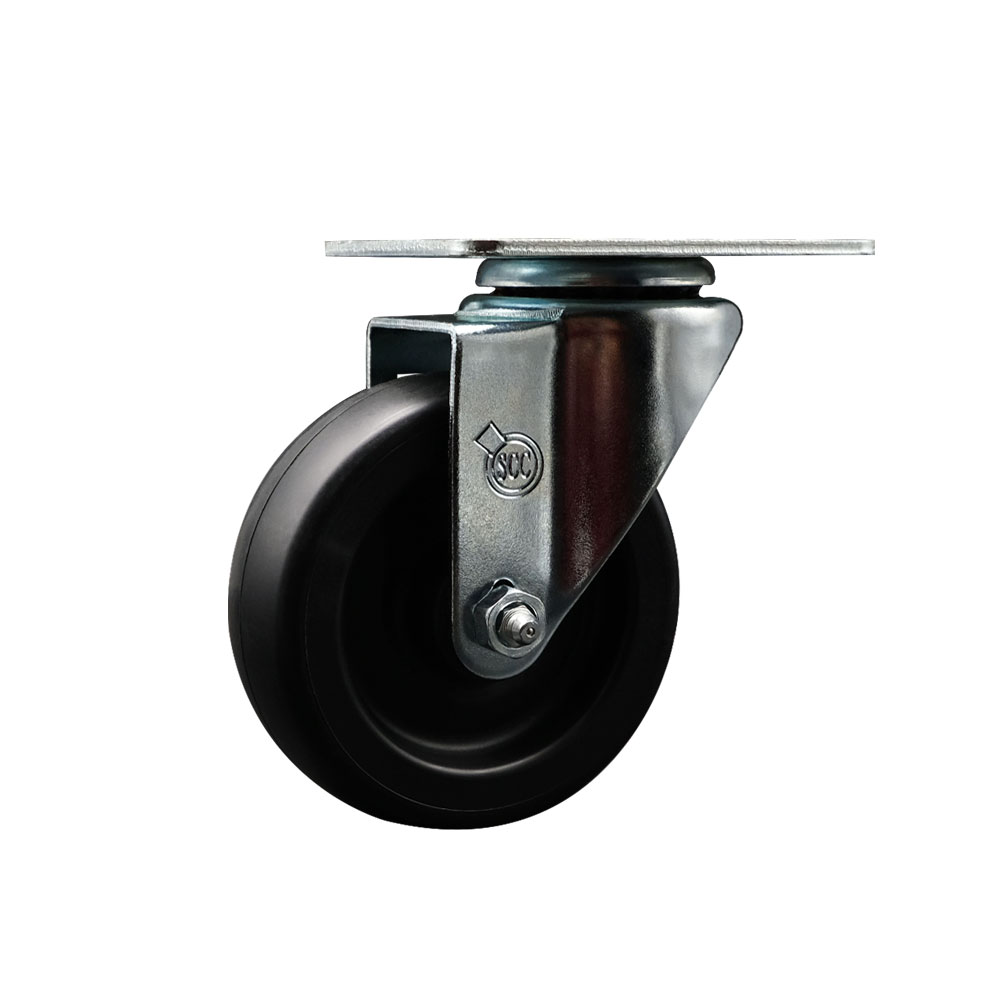

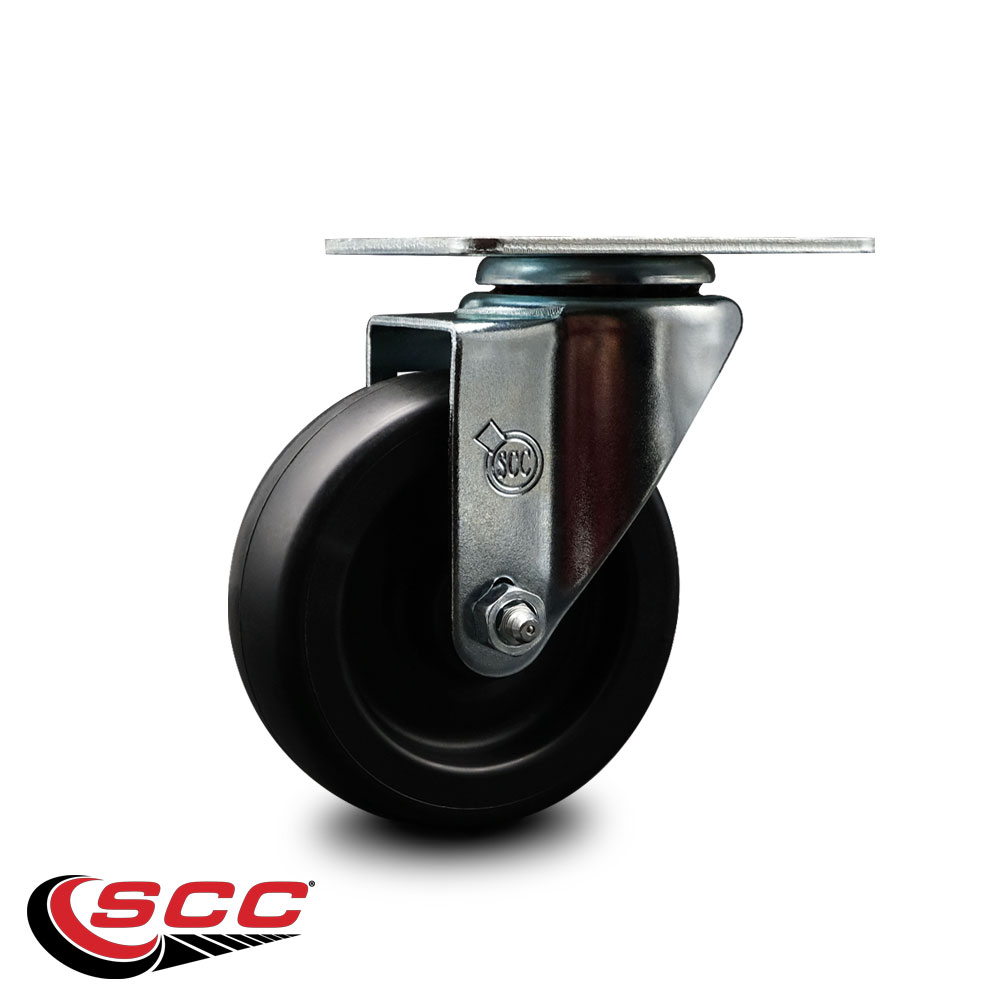

17819301 Avantco 4 Inch Swivel Caster - Compatible with 178A19FHC 178A19RHC 178A23FHC 178A23RGHC 178A23RHC 178A35FHC 178A35RHC Models - Light Duty Replacement - Polyolefin Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

AVA-SCC-20S414-POS-TP2

Condition

new

Quantity

1

UPC

734005216714

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Capacity

300

Color

Swivel - No Brake - Black

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyolefin

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

4" Wheel

Top Plate Size

3-1/8" x 4-1/8"

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Plain Bore

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Polyolefin

Wheel Size

4" x 1-1/4"

Wheel Type

Polyolefin

Description

Listing is for one (1) Service Caster Series #20 swivel caster with a 4" diameter by 1-1/4" wide polyolefin wheel capable of supporting 300 lbs. per caster. 17819301 replacement part fits Avantco refrigeration equipment. When searching for a reliable and durable solution to your Avantco replacement caster needs, consider Service Caster Series 20 top plate polyolefin wheel casters. The Service Caster Series #20 features polyolefin wheels that have a high resistance to shock and impact damage while also being non-marking protecting floors. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Avantco replacement casters offer polyolefin wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications, but are commonly used on Avantco refrigeration equipment. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Avantco Refrigeration Equipment • Compatible Models: 178A19FHC, 178A19RHC, 178A23RGHC, 178A23RHC, 178A49FHC, 178A49RGHC, 178A49RHC, 178SSUC27RHC, A-23F-HC, A-35F-HC, A-35R-HC, APPT-49-HC, APPT-71-HC, APPT-91-HC, APT-27-HC, APT-27M-HC, APT-36-HC, APT-36M-HC, APT-48-HC, APT-48M-HC, APT-60-HC, APT-60M-HC, APT-71-HC, APT-71M-HC, AU-27F-HC, AU-27R-HC, AU-48F-HC, AU-48R-HC, AU-60F-HC, AU-60R-HC, AU-72R-HC, AWT-27F-HC, AWT-27R-HC, AWT-48F-HC, AWT-48R-HC, AWT-60F-HC, AWT-60R-HC, AWT-72R-HC, CFD-2RR, CPSS-47-HC and CPSS-68-HC • Weight Capacity: 300 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
