177CASTER Avantco Swivel Caster Set – Compatible with Avantco FF FBF EF Series Floor Fryers - Light Duty Replacement – Includes 2 Swivel Casters & 2 Swivel Casters with Brakes - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

AVA-SCC-20S514-PHS-2-TLB-2

Condition

new

Quantity

4

UPC

734005216448

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

8.3 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Capacity

300

Color

4 Swivel w/2 Top Lock Brakes

Durometer

90D

Feature

2 casters with top lock brakes

Heat Capacity

-50 degrees F to 250 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

2 casters with top lock brakes

Lower Temperature

-50

Lower Temperature UofM

F

Material Type

Phenolic

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(2) swivel casters & (2) swivel casters w/top lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Phenolic

Wheel Size

5" x 1-1/4"

Wheel Type

Phenolic

Description

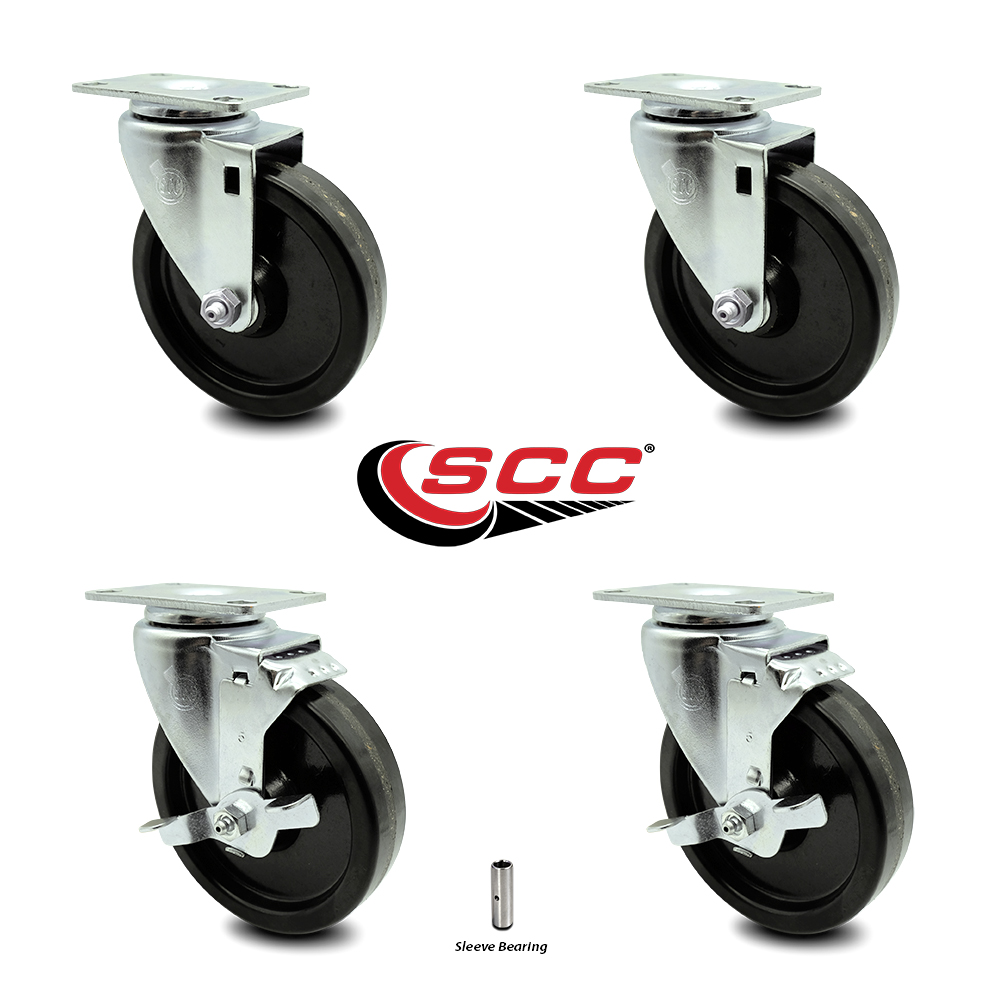

Listing is for four (4) Service Caster Series #20 swivel caster set with 2 top lock brakes and a 5" diameter by 1-1/4" wide phenolic wheel capable of supporting 300 lbs. per caster. 177CASTER replacement part fits Avantco FF FBF EF Series floor fryers. When searching for a reliable and durable solution to your Avantco replacement caster needs, consider Service Caster’s Series 20 phenolic casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Avantco Floor Fryer • Avantco Floor Fryer 177CASTER Replacement Caster - Service Caster Brand • Weight Capacity: 300 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
