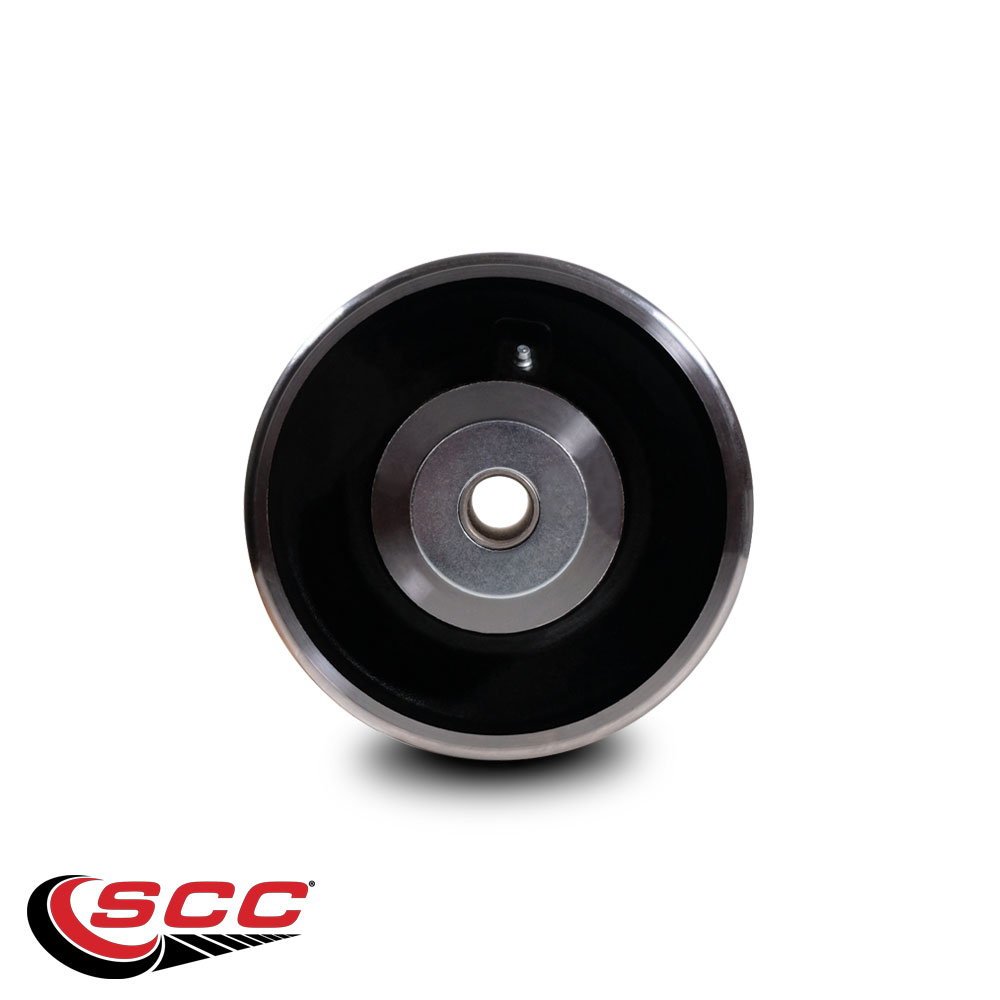

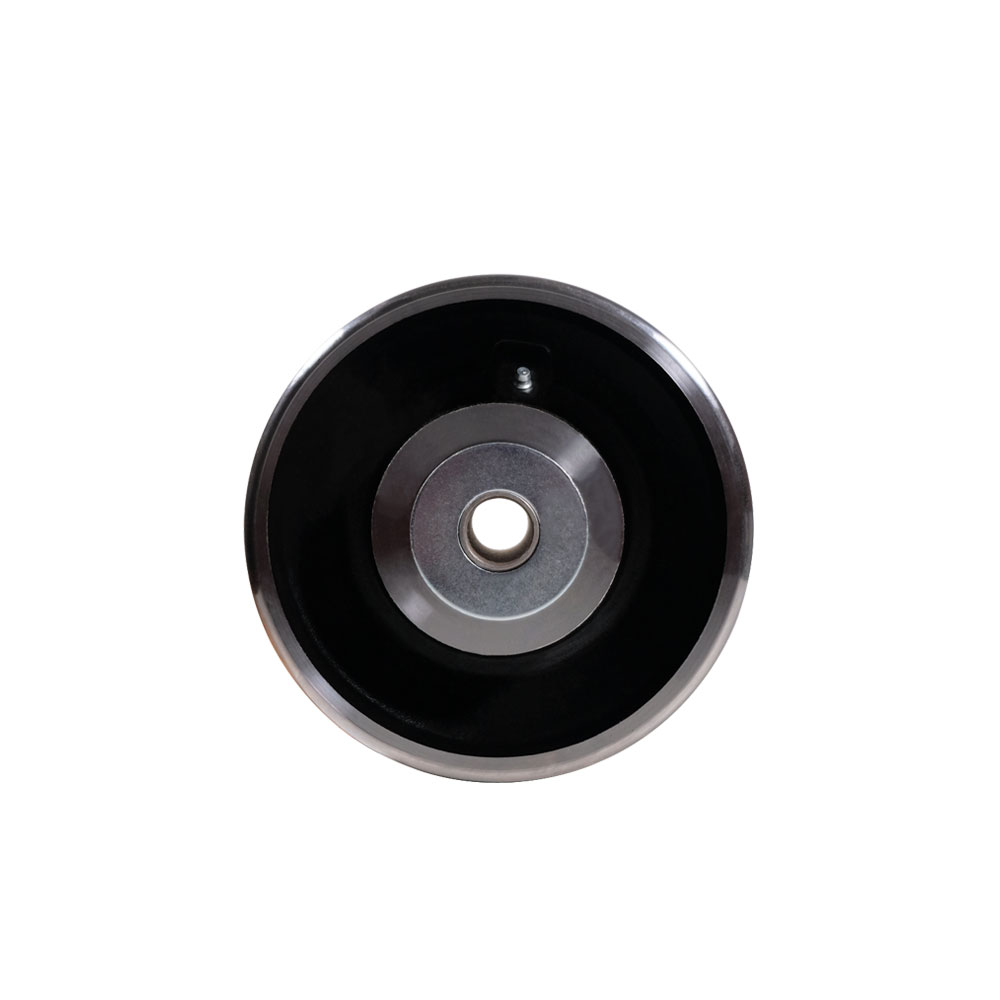

12" x 5" Green Polyurethane Tread on Cast Iron Heavy Duty Wheel with Roller Bearing - 1-1/4" Bore - 6,000 lbs. Capacity Per Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Polyurethane Tread on Metal Core

SKU

SCC-PUR1250-112-S503L

Condition

new

Quantity

1

UPC

734005480931

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

57 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Diameter

1.25

Bore Diameter UofM

inches

Bore Size

1.25

Capacity

6000

Color

Bore Size: 1-1/4"

Durometer

95A

Heat Capacity

-40 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Plating/Coating

Polyurethane

Size

12" Wheel

Tread Width

5

Tread Width UofM

inches

Wheel Bearing

Roller Bearing

Wheel Diameter

12

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Metal Core

Wheel Size

12" x 5"

Wheel Type

Polyurethane Tread on Metal Core

Description

Listing is for one (1) Service Caster 12" diameter by 5" tread width green polyurethane wheel with 1-1/4 inch bore. Supports 6000 pounds (lbs) per wheel. When searching for a reliable and durable solution for replacement wheels, consider Service Caster’s polyurethane tread on cast iron core wheels. With a roller bearing with a 1-1/4” bore, this wheel is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Polyurethane tread with a cast iron core is ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Wheel Size: 12" x 5" • Weight Capacity: 6,000 lbs. • Bore Size: 1-1/4" • Polyurethane on cast iron is the most versatile and cost-effective industrial wheel on the market. Service Caster’s polyurethane tread is liquid cast and chemically bonded to a Class 30 solid web cast iron center. The non-marking and non-sparking tread protects floors, rolls quiet and is resistant to most chemicals, while the high capacity load bearing wears like iron. Finally, featuring a 90-95 Shore (A) durometer.
