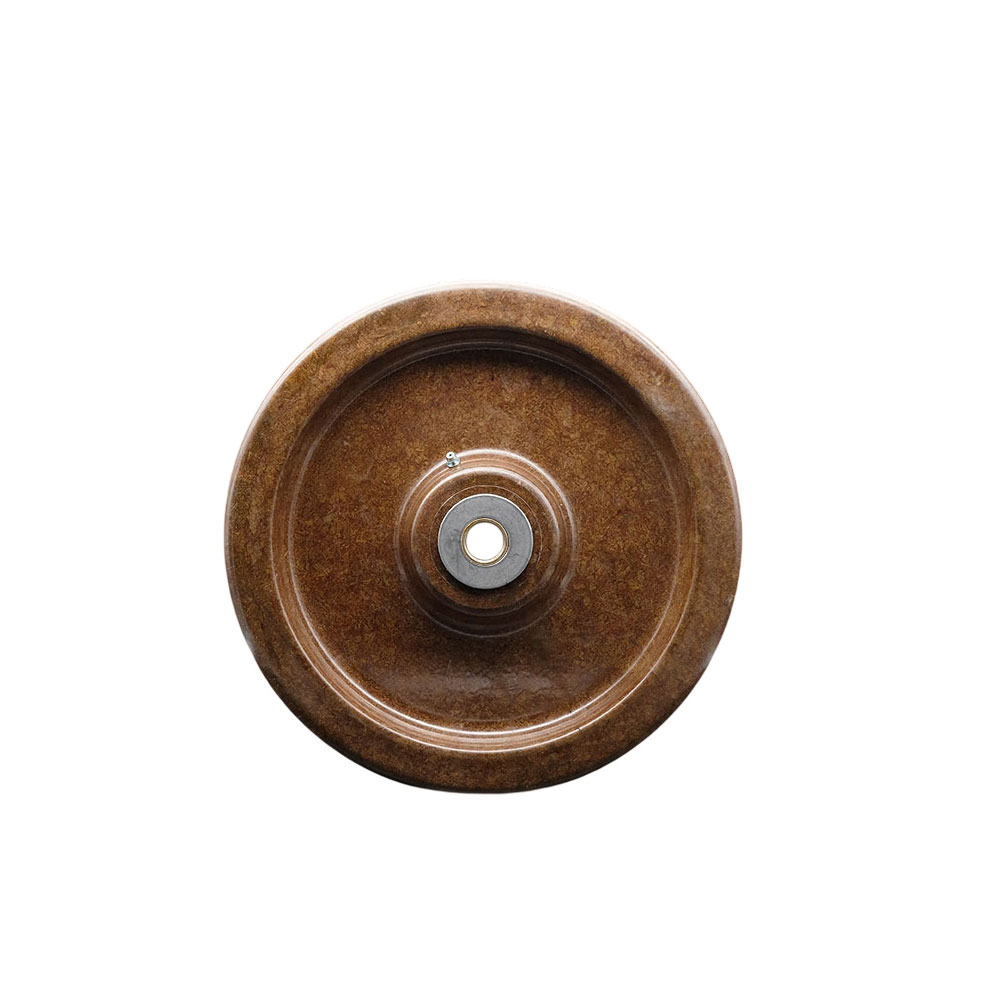

12" x 3" High Temperature Phenolic Wheel Only with Roller Bearing - 3/4" Bore - 3500 lbs Capacity per Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

SKU

SCC-PHRHT1230

Condition

new

Quantity

1

UPC

670533891255

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

19 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Diameter

0.75

Bore Diameter UofM

inches

Bore Size

0.75

Capacity

3500

Color

12" Wheel - Brown

Durometer

90D

Heat Capacity

475 degrees F continuous usage and 525 degrees F intermittent usage

Hub Length

3.5

Hub Length UofM

inches

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Lower Temperature

475

Lower Temperature UofM

F

Material Type

High Temperature Phenolic

Maximum Temperature

525

Maximum Temperature UofM

F

Plating/Coating

High Tempertature Phenolic

Size

High Temp Phenolic

Tread Width

3

Tread Width UofM

inches

Type

High Temperature Phenolic Wheel

Wheel Bearing

Roller Bearing

Wheel Diameter

12

Wheel Diameter UofM

inches

Wheel Material

High Temperature Phenolic

Wheel Size

12" x 3"

Wheel Type

High Temperature Phenolic

Description

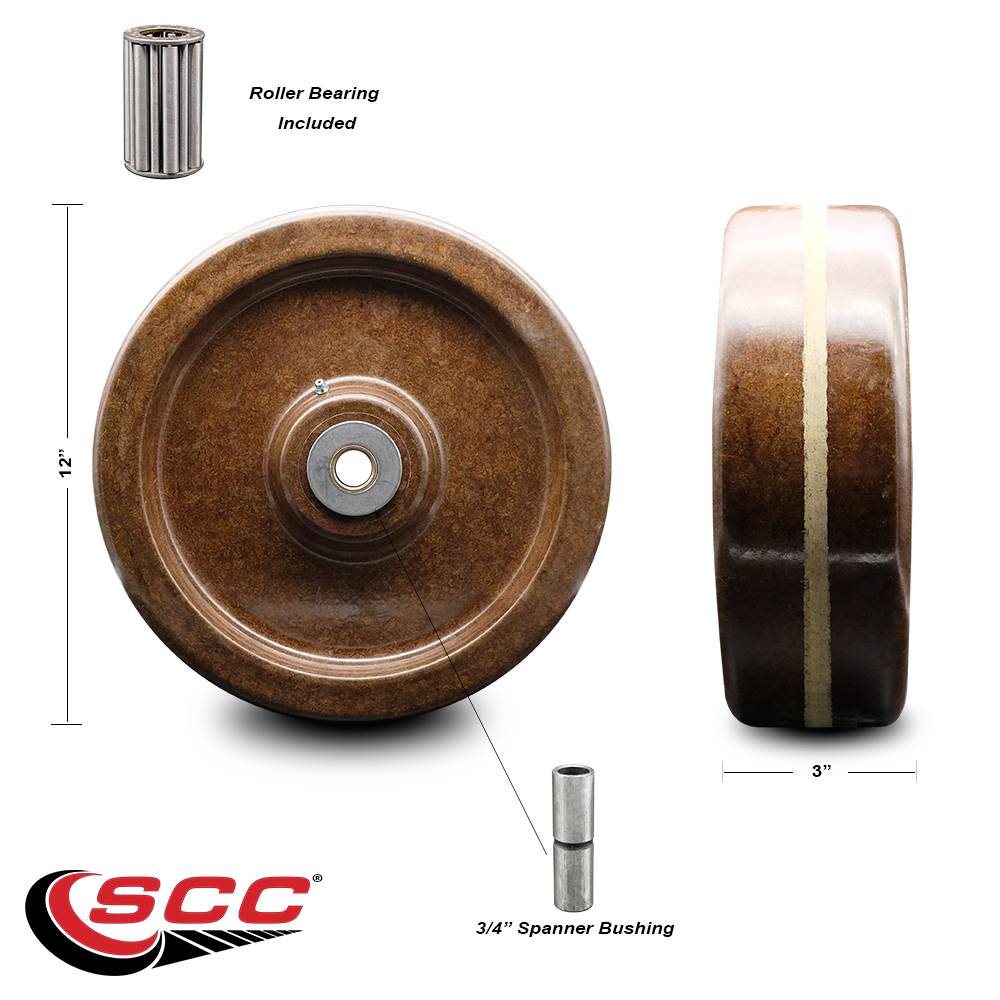

Listing is for one (1) Service Caster 12" diameter by 3" tread width High Temperature Phenolic wheel with a roller bearing and 3/4" bore. Supports 3500 pounds (lbs) per wheel.When searching for a reliable and durable solution for new applications or as a replacement wheel for casters and dollies, consider Service Caster’s High Temperature Phenolic resin wheels. With a Roller Bearing with 3/4" bore for axle, high temperature phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic is highly resistant to oil, grease, water, and most solvents. Hardness scale 90 Shore (D) Durometer. An excellent choice for bakers racks and baking carts. 475°F for 30 continuous minutes. Longer durations under high heat will decrease the lifetime of the caster wheel. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Service Caster’s High Temperature Phenolic Resin wheels come in four sizes – 6" x 3", 8” x 3", 10” x 3", and 12” x 3". • Weight capacity ranges from 2500 lbs. on the 6" wheel, 2500 lbs. on the 8”, 2900 lbs. on the 10”, and 3500 lbs. on the 12”. • All wheel sizes have a 3/4" axle bore and a 3-1/2" hub length. When the spanner bushing is removed, all wheel sizes can be used on a 1" axle. Please keep in mind, the hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing. • High Temperature Phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic resin wheels feature a resistance to water, oil, and grease. Being non-metallic, these resin wheels are also spark proof. Finally, with a temperature rating of 475 degrees Fahrenheit for 30 continuous minutes, Service Caster’s High Temperature Phenolic wheels are ideal for bakers’ racks and baking carts.
