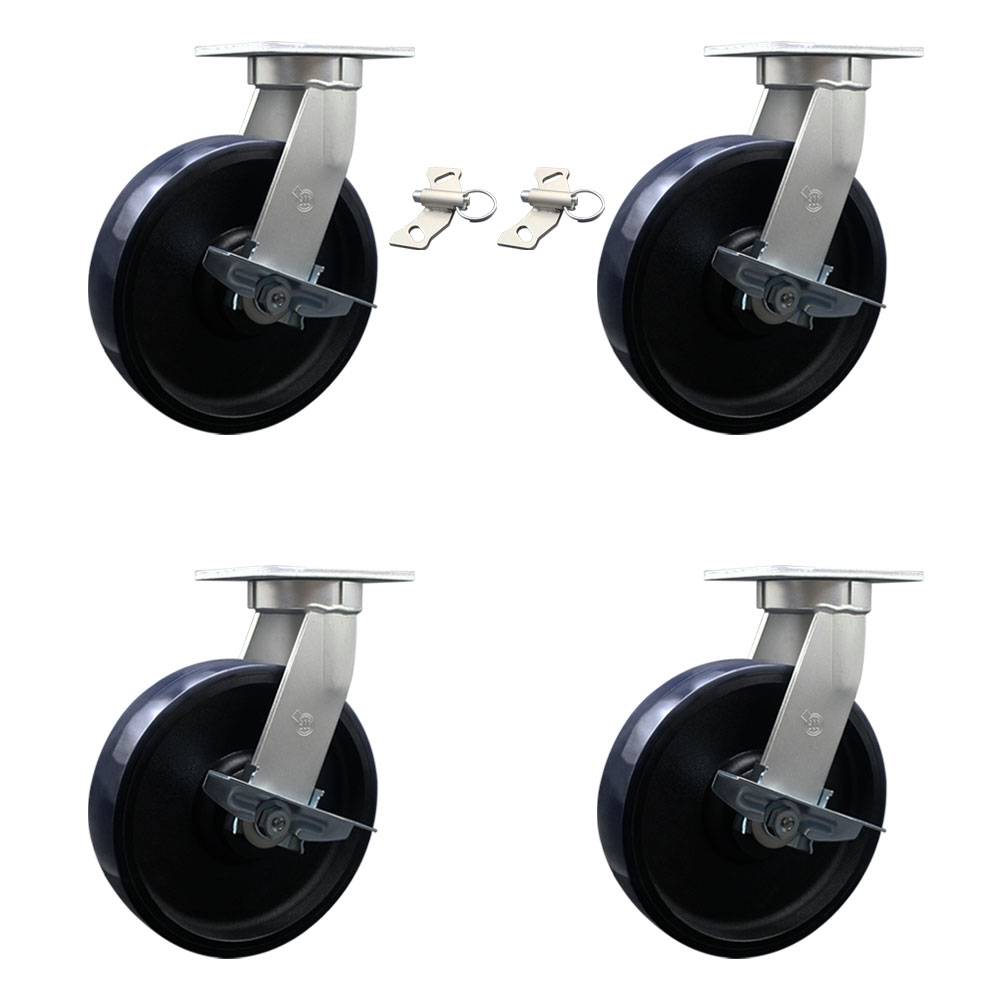

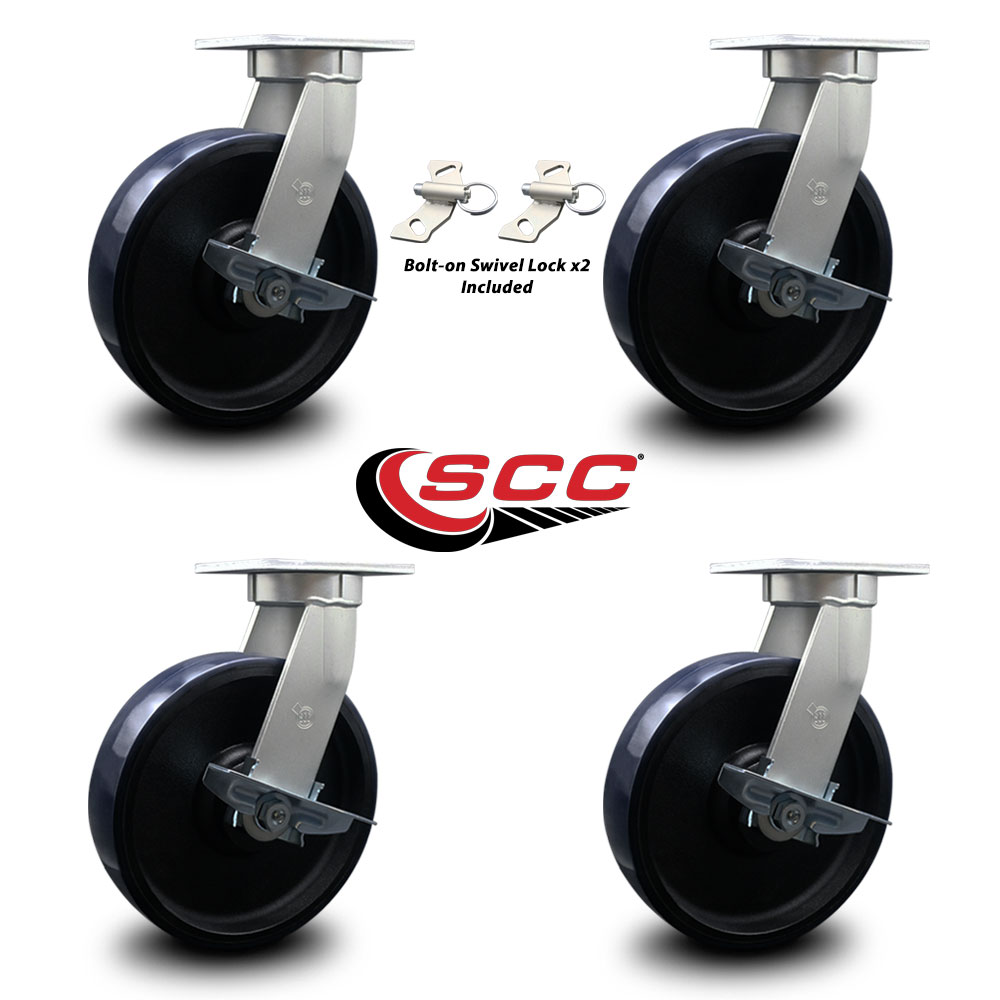

12 Inch Swivel Top Plate Caster Set Extra Heavy Duty Casters with Blue Poly on Cast Iron Wheels -Includes 2 Swivel with Brakes and Bolt on Swivel Locks and 2 Swivel with Brakes - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #92

SKU

SCC-KP92S1230-EZPUB-SLB-BSL-2-SLB-2

Condition

new

Quantity

1

UPC

734005551600

Dimensions (L x W x H)

12 x 12 x 12 in

Shipping weight

178 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

1/2" (hardware not included)

Capacity

14000

Color

4 Swivel w/4 Brakes & 2 Swivel Locks

Durometer

95A

Feature

4 Side lock brakes & 2 Bolt on swivel lock

Heat Capacity

-40 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

15-1/2"

Locking Type

4 side lock brakes & 2 bolt on swivel locks

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

15-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

12" Wheel

Top Plate Size

5-1/4" x 7-1/4"

Tread Width

3

Tread Width UofM

inches

Type

(2) swivel casters w/side lock brakes and bolt on swivel locks & (2) swivel casters w/side lock brakes

Wheel Bearing

Ball Bearing

Wheel Diameter

12

Wheel Diameter UofM

inches

Wheel Material

Polyurethane on Cast Iron

Wheel Size

12" x 3"

Wheel Type

Polyurethane on Cast Iron

Description

Listing is for a set of four (4) Service Caster Series #92 casters with 12" diameter, 3" wide blue polyurethane tread on metal core wheels. Set includes four (4) swivel casters, two (2) fitted with side locking brakes and bolt on swivel locks, two (2) fitted with side locking brakes. Supports 14000 total pounds (lbs) at 3500 pounds (lbs) per caster. When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate polyurethane on cast iron wheel casters. The Service Caster Series #92 is ideal for material handling, carts and industrial equipment. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features ½” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • The Kingpinless Series 92 polyurethane casters offer various wheel sizes and mounting heights- 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height) and are made of a non-marking, non-marring blue polyurethane tread on a black metal core which performs especially well on hard surfaces such as concrete, tile, and wood and stands up to heavier loads with a stable and secure roll. • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”. • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on. • Brake options include a total lock brake (TTL) or a side lock brake (SLB). The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position.
