Browse / Parts & Components / 12 Inch Swivel Polyurethane Caster - Green Polyurethane on Cast Iron Wheel with Tapered Bearings and Welded On Swivel Lock - Super Heavy Duty Caster-6,000 lbs. Capacity Per Caster-Service Caster Brand
12 Inch Swivel Polyurethane Caster - Green Polyurethane on Cast Iron Wheel with Tapered Bearings and Welded On Swivel Lock - Super Heavy Duty Caster-6,000 lbs. Capacity Per Caster-Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #94
- SKU
- SCC-94S1250-PUT-GRN-WSL
- Condition
- new
- Quantity
- 1
- UPC
- 734005481006
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 20 x 20 x 19.75 in
- Shipping weight
- 86 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Size
- 5/8" (hardware not included)
- Capacity
- 6000
- Color
- Swivel - Welded On Swivel Lock - Green
- Durometer
- 95A
- Heat Capacity
- -40 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 15-1/2"
- Locking Type
- Welded Swivel Lock
- Lower Temperature
- -40
- Lower Temperature UofM
- F
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 15-1/2"
- Mounting Type
- Top Plate
- Plating/Coating
- Gold Powder Coat
- Casters Mounting Method
- Plate
- Locking Castersor Wheels
- Yes
- Swivels
- Yes
- Size
- 12" Wheel
- Top Plate Size
- 8-1/2" x 8-1/2"
- Tread Width
- 5
- Tread Width UofM
- inches
- Type
- Swivel caster w/welded on swivel lock
- Wheel Bearing
- Tapered Bearings
- Wheel Diameter
- 12
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyurethane Tread on Metal Core
- Wheel Size
- 12" x 5"
- Wheel Type
- Polyurethane Tread on Metal Core
Description

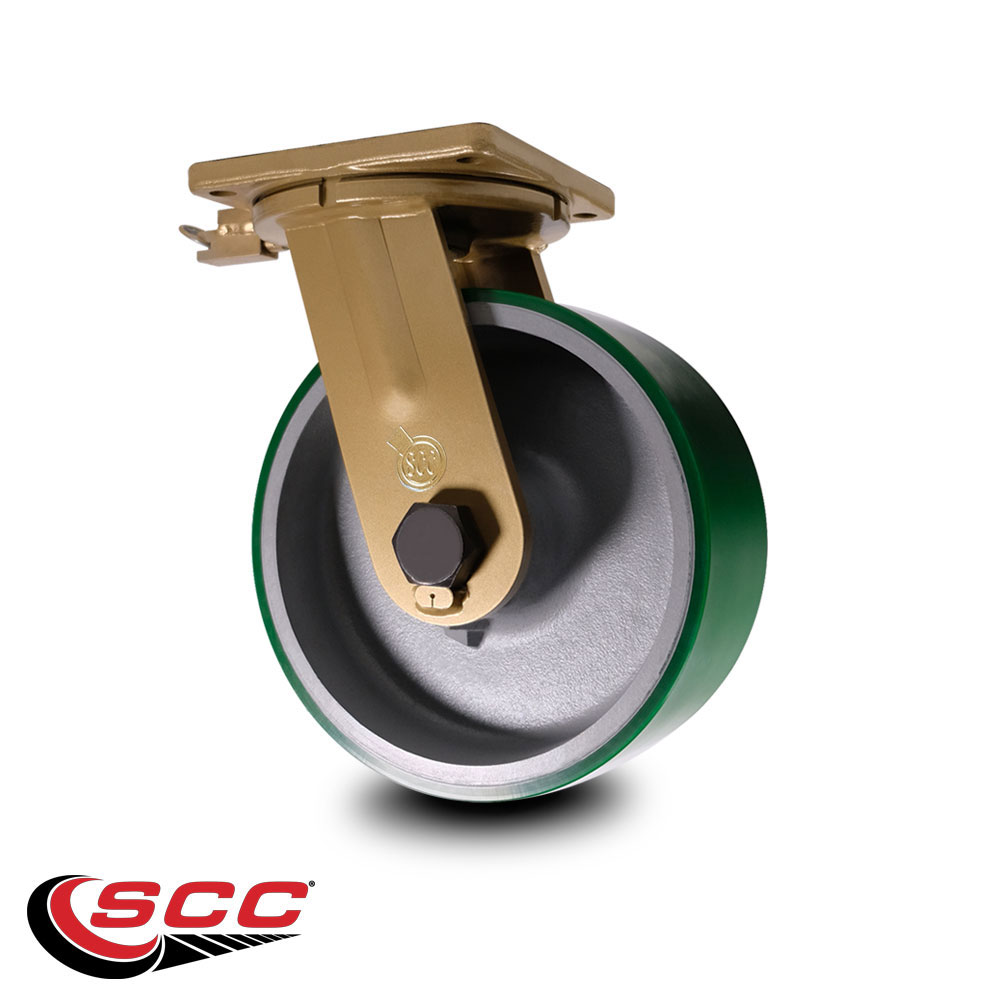

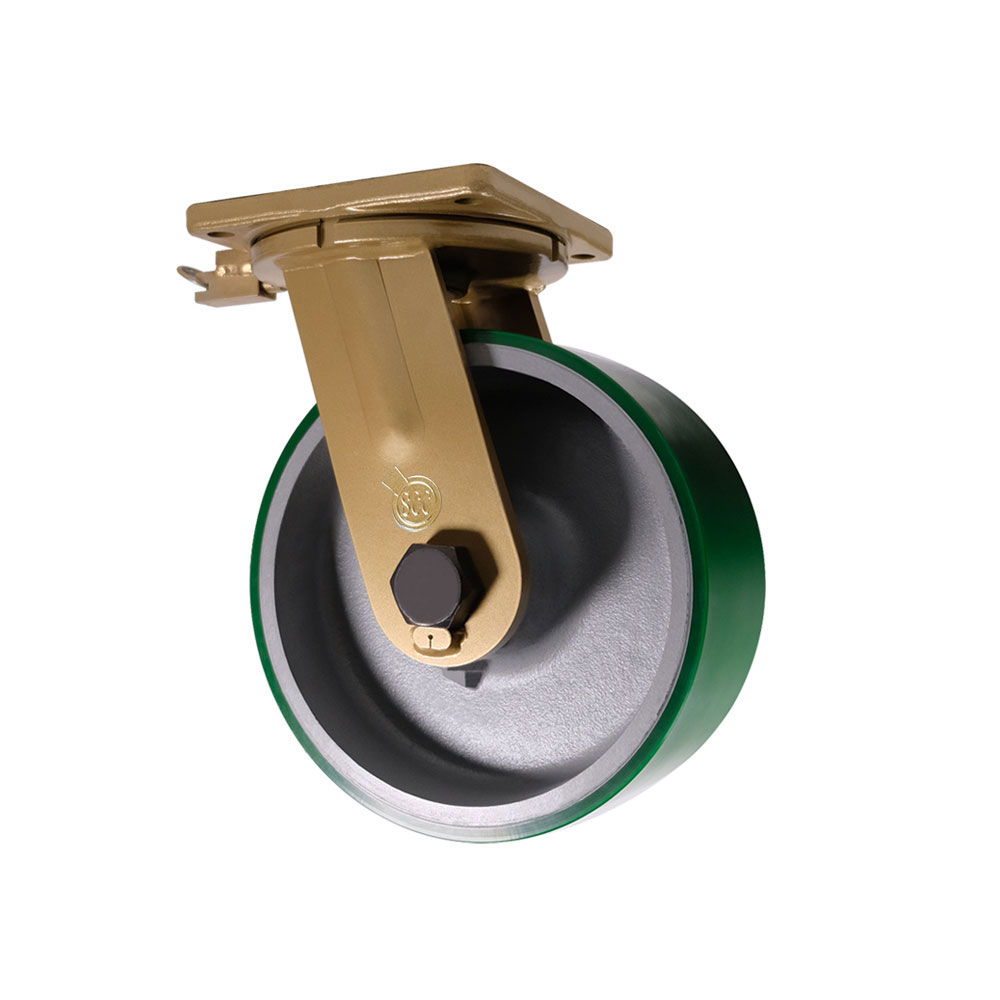

Listing is for one (1) Service Caster Series #94 super heavy duty swivel caster with a 12" diameter, 5" wide green polyurethane wheel, tapered bearings and a welded on swivel lock. Supports 6000 pounds (lbs) per caster. When searching for a reliable and durable solution for super heavy duty projects, consider Service Caster’s Series 94 super heavy duty top plate polyurethane on metal wheel casters. The Service Caster Series #94 is ideal for material handling, carts and industrial equipment. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Service Caster’s Series #94 top plate casters are finely crafted of hot forged C-1045 steel with a 7” diameter machined load raceway featuring 5/8” diameter ball bearings with 1-1/4” tapered thrust bearing. These highly versatile casters are ideal for a wide range of applications, such as power drawn equipment, stamping racks, trash gondolas, material delivery trailers, and towed trailers. These casters are also widely used on aircraft ground support equipment, in automotive plants and within steel mills, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Mounting Height: 15-1/2" • Weight Capacity: 6,000 lbs. • Top plate measures at 8-1/2" x 8-1/2" with a bolt hole pattern of 7" x 7" and can either be bolted or welded on. • Brake options include a welded-on swivel lock (WSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle.
