12 Inch Dual Wheel Swivel Poly Caster - Black Poly Wheels with Tapered Bearings - Posi Lock Brake and Welded On Swivel Lock-Super Heavy Duty Caster-15,000 lbs. Capacity Per Caster-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #94

SKU

SCC-DW94S1250-EXPUT-BLK-70D-PLB-WSL

Condition

new

Quantity

1

UPC

734005481044

Harmonized code

8302.20.0000

Dimensions (L x W x H)

20 x 20 x 19.75 in

Shipping weight

170 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/8" (hardware not included)

Capacity

15000

Color

Swivel - Posi Lock Brake & Swivel Lock - Black

Durometer

95A

Heat Capacity

-40 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

15-1/2"

Locking Type

Posi Lock Brake & Welded Swivel Lock

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

15-1/2"

Mounting Type

Top Plate

Plating/Coating

Gold Powder Coat

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

12" Dual Wheel

Top Plate Size

8-1/2" x 8-1/2"

Tread Width

5

Tread Width UofM

inches

Type

Swivel caster w/welded on swivel lock and posi lock brake

Wheel Bearing

Tapered Bearings

Wheel Diameter

12

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Metal Core

Wheel Size

12" x 5"

Wheel Type

Polyurethane Tread on Metal Core

Description

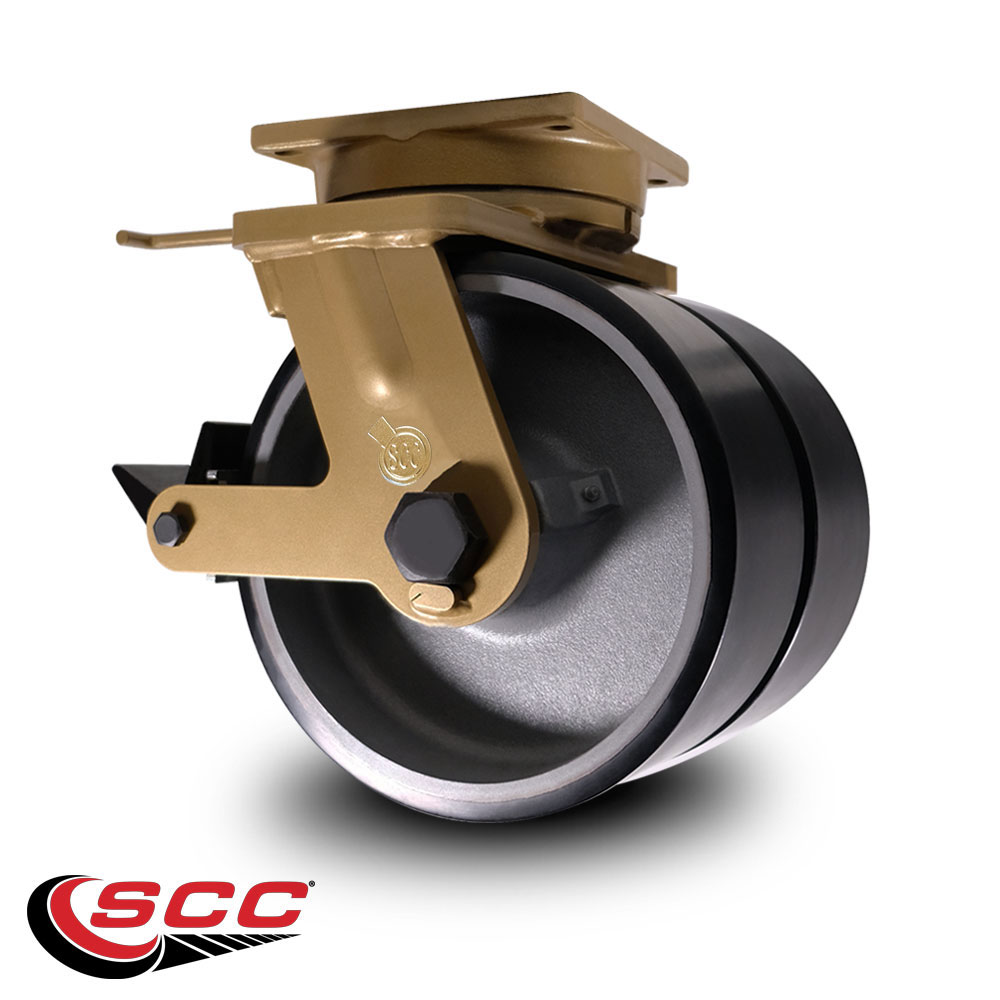

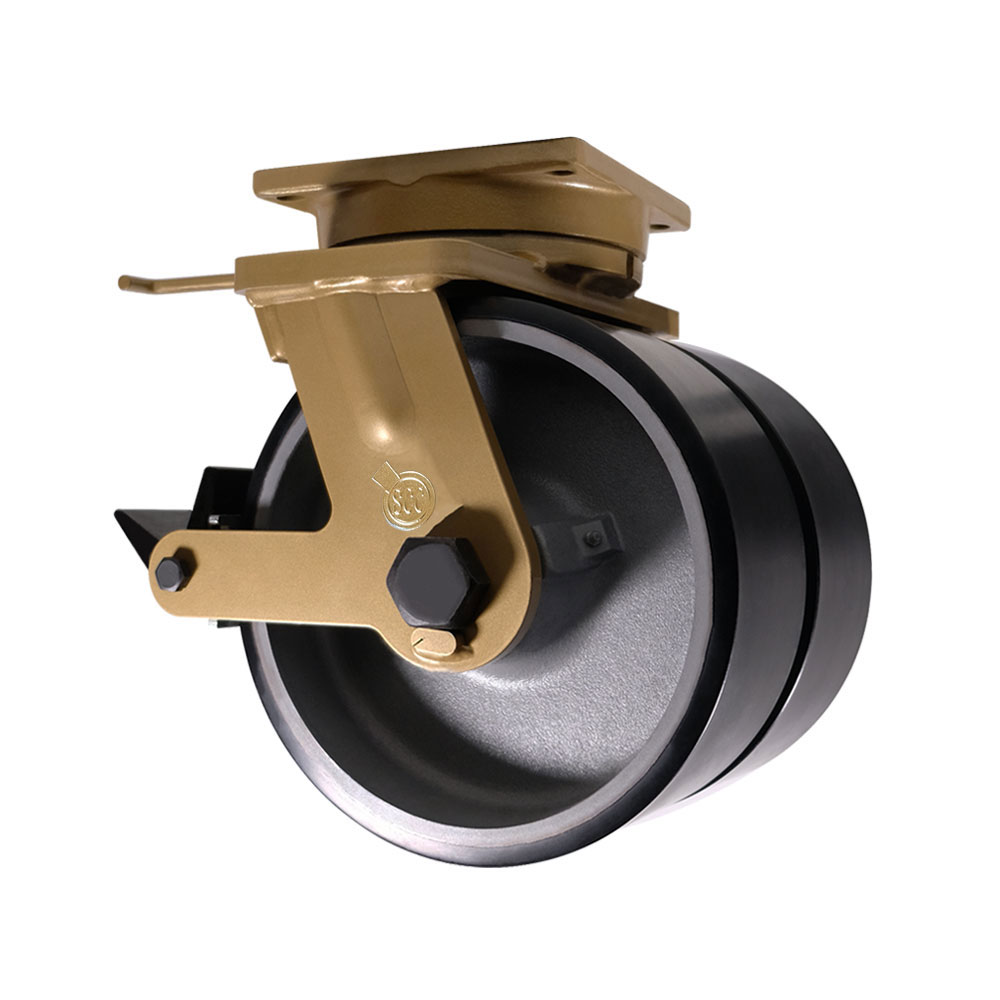

Listing is for one (1) Service Caster Series #94 super heavy duty dual wheel swivel caster with 12" diameter, 5" wide black polyurethane wheels, tapered bearings, a posi lock brake, and a welded on swivel lock. Supports 15000 pounds (lbs) per caster. When searching for a reliable and durable solution for super heavy duty projects, consider Service Caster’s Series 94 super heavy duty top plate polyurethane on metal dual wheel casters. The Service Caster Series #94 is ideal for material handling, carts and industrial equipment. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Service Caster’s Series #94 dual wheel top plate casters are finely crafted of our popular hot forged C-1045 steel swivel sections. These dual wheel casters offer the highest possible capacity at the lowest overall height. The casters feature legs that are welded to a unique skirt design for greater strength and longevity. These highly versatile casters are ideal for a wide range of applications, such as tow lines, industrial platform trucks, rugged industrial functions, and other severe abuse applications. The large footprint allows for a greater distribution of load on the floor. Additionally, the larger casters have a vertical center leg to further enhance the load distribution. Less effort is needed when changing direction as the design allows the wheels to rotate at variable rates to compensate for the shorter radius in the arc, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Mounting Height: 15-1/2" • Weight Capacity: 15,000 lbs. • Top plate measures at 8-1/2" x 8-1/2" with a bolt hole pattern of 7" x 7" and can either be bolted or welded on. • Brake options include a posi lock brake (PLB) which places a positive locking force against the wheel tread, or a welded-on swivel lock (WSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete control over both wheel and swivel actions on the caster.
