1013-L2 1013L2 FG1013L20000 Rubbermaid Tilt Truck Replacement 4 Inch Swivel Caster Set – Fits 3/4 Inch Standard Duty Tilt Trucks FG101300BLA and FG9T1400BLA – Set of 2 – Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

RUB-SCC-20S414-HRS-2

Condition

new

Quantity

2

UPC

734005082470

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

3.4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-3/4" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

300

Color

2 Swivel - No Brake - Black

Durometer

55D

Heat Capacity

-40 degrees F to 160 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

No

Swivels

Yes

Size

Fits Rubbermaid Tilt Trucks

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(2) swivel casters

Wheel Bearing

Plain Bore

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Hard Rubber

Wheel Size

4" x 1-1/4"

Wheel Type

Hard Rubber

Description

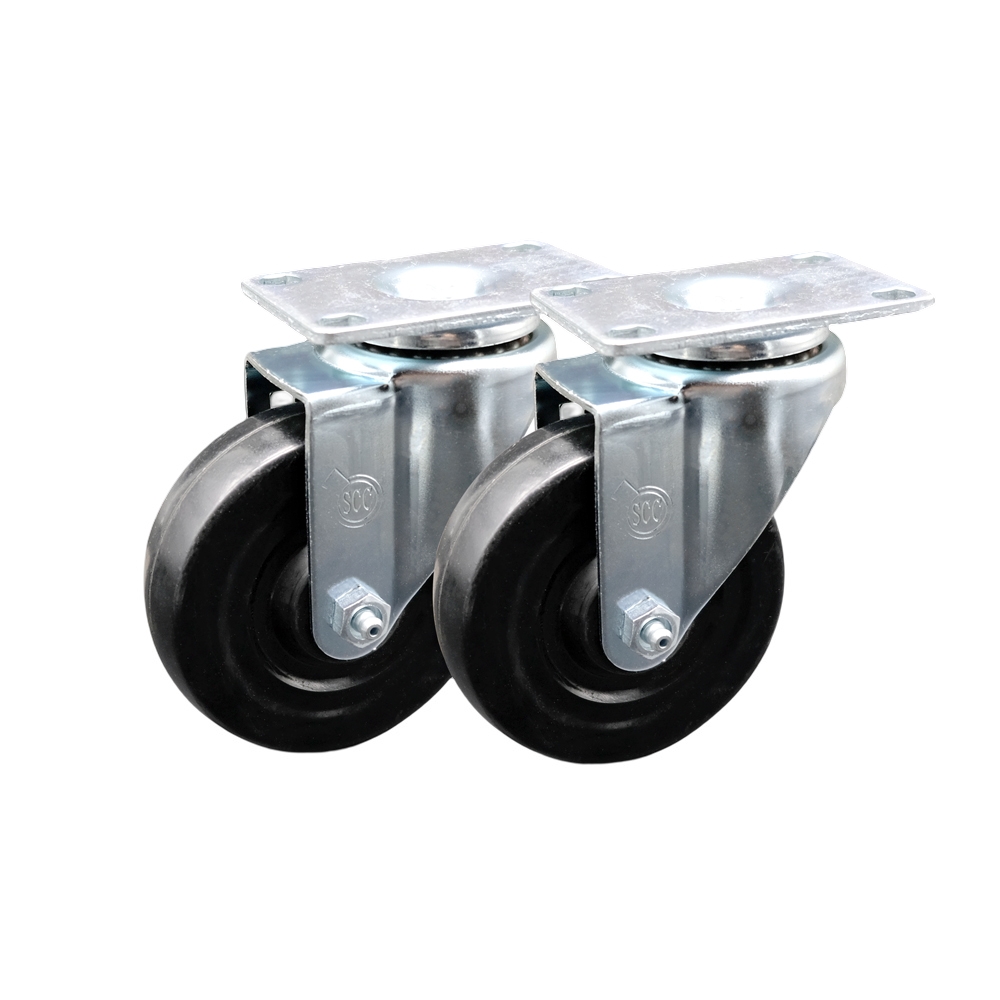

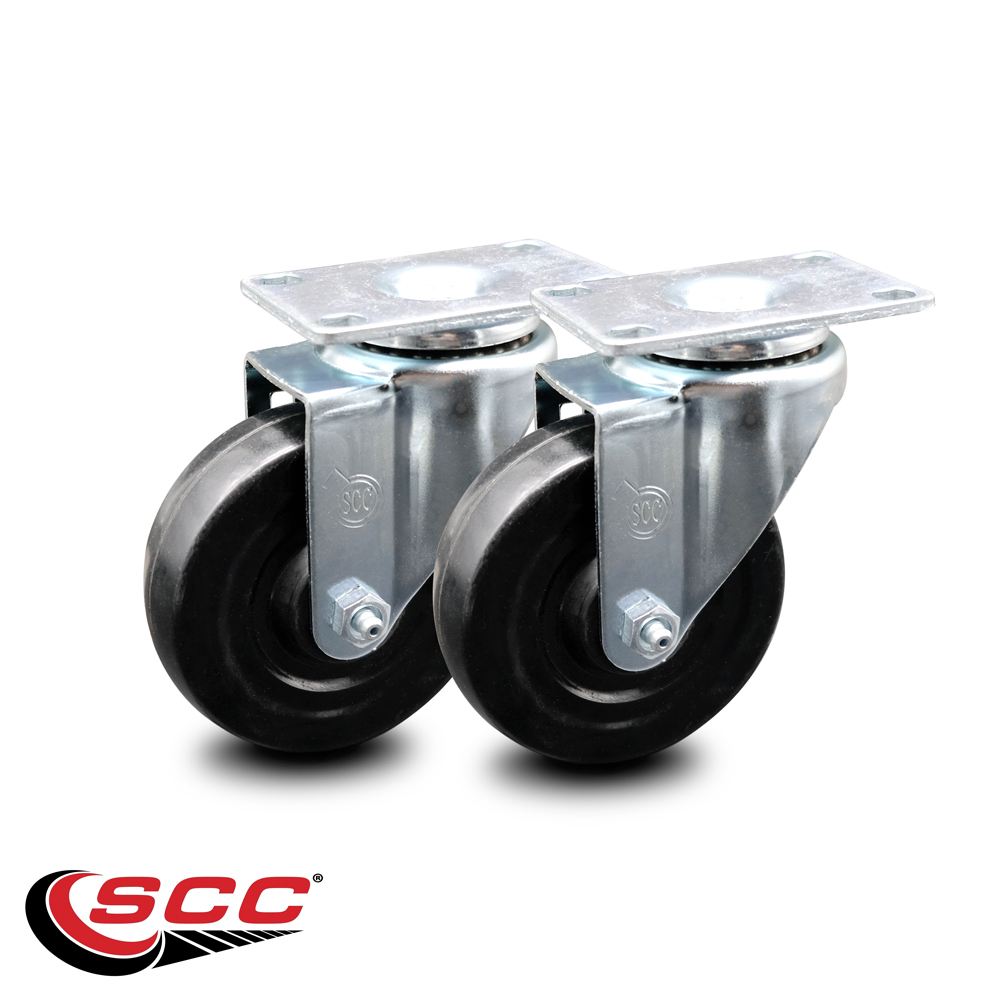

Listing is for two (2) Service Caster Series #20 swivel casters with 4" diameter by 1-1/4" wide hard rubber wheels capable of supporting 300 lbs. per caster or 600 lbs. total. 1013-L2, 1013L2, FG1013L20000 replacement part fits Rubbermaid 3/4 inch Standard Duty Tilt Truck FG101300BLA and FG9T1400BLA. HARDWARE NOT INCLUDED. When searching for a reliable and durable replacement for Rubbermaid Tilt Truck casters, consider Service Caster’s Series 20 hard rubber casters. The Service Caster Series #20 is ideal for light and medium duty applications, and is the perfect solution as new or replacement parts for Rubbermaid Tilt Trucks. The hard rubber wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Rubbermaid Tilt Trucks: FG101300BLA & FG9T1400BLA • 1013-L2 Rubbermaid Tilt Truck FG101300BLA FG9T1400BLA Replacement Caster Set - Service Caster Brand • Weight Capacity: 300 lbs. Capacity Per Caster (600 lbs. Total Capacity) • Bolt Size: 5/16" (hardware not included)
